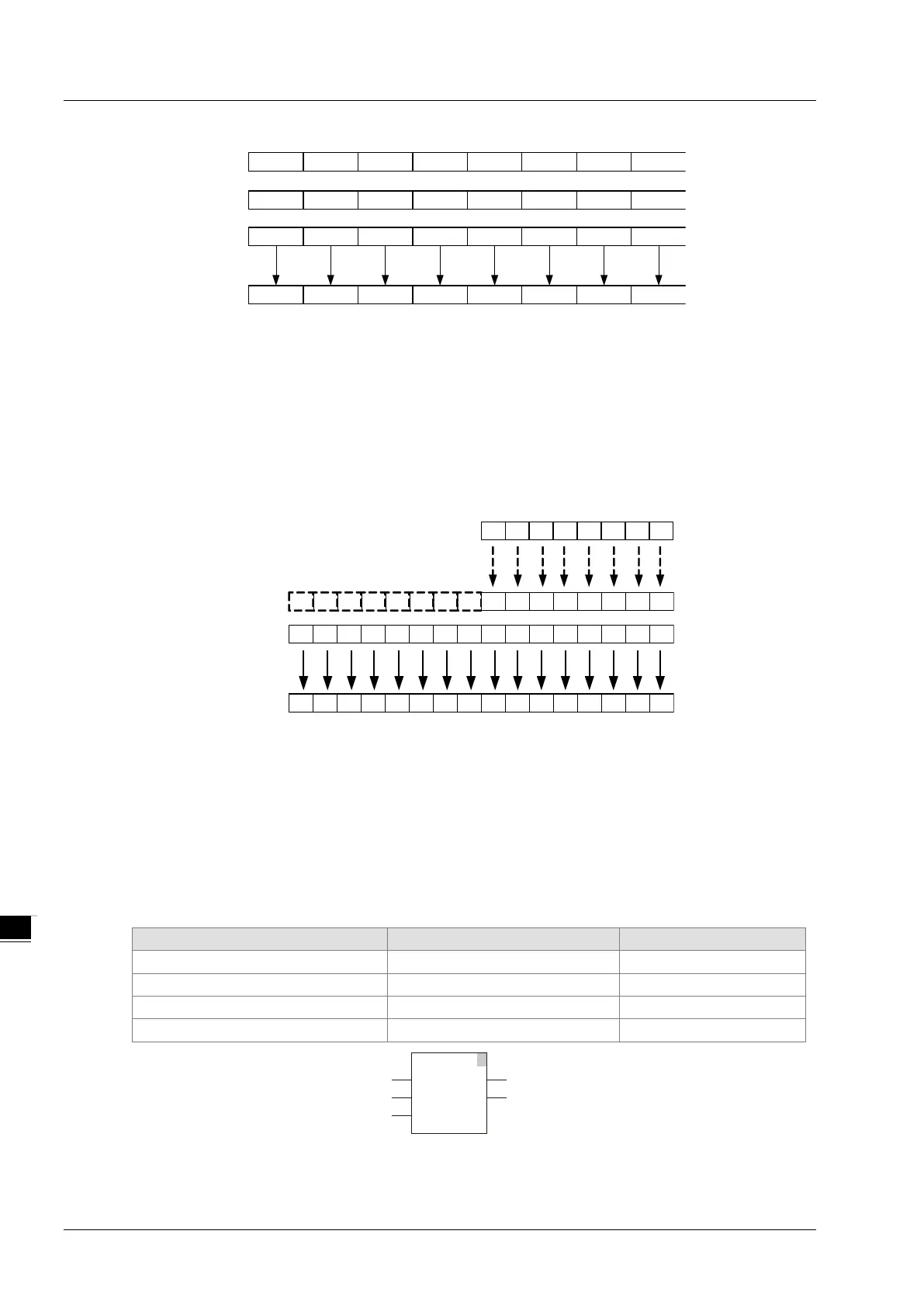

In1~InN are allowed to be the variables of different data types when none of the data types of input
variables are BOOL.
When In1 to InN are the variables of different data types, take the data type which can include all
ranges of the values of In1~InN for the operation.
For example, if the data type of In1 is BYTE and In2 is WORD, the data type of Out is WORD. In
operation, the value of In1 is converted from BYTE to WORD as shown in the following figure. Bit8~
Bit 15 are complemented and their values are all 0. And then the logical OR of the bit values of In1
and In2 is conducted as below.

If the data type of an input variable is BOOL, the data types of all input and output variables are
required to be BOOL. Otherwise, an error will occur in the compiling of the software.
 Precautions for Correct Use
The input variables are not allowed to omit. An error will occur during the compiling of the software if any
input variable is omitted. But the output variable is allowed to omit.

Programming Example

The data types of OR_In1, OR_In2 and Out1 are all BYTE. The values of OR_In1 and OR_In2 are
10 and 50 respectively and the value of Out1 is 58 when OR_EN is TRUE.
 The variable table and program
Variable name Data type Current value
OR_EN
BOOL
TRUE
OR_In1
BYTE
10
OR_In2
BYTE
50
Out1
BYTE
58
00101100
01111001
0
01011
00
01111101
Bit0Bit7
In1
In2
In3
Out
00101100
Bit0Bit7
In1
000
00000
101001010010
110
0
In1_WORD
In2
Bit8
Bit15
1010110100101100
Out
00101100
1
OR
EN ENO
In1 Out
OR_EN
OR_In1 Out1
In2
OR_In2
8-114
