actual position remains unchanged at the time when the instruction is executed and the instruction
execution ends.
The solution for the actual position which is taken as the reference position is the same as that for the
command position which is taken as the reference position.
There will be no difference in execution effect between the command position and actual position as the
reference position if the axis is in Standstill state as MC_SetPosition is executed. That is because the
difference is 0 between command position and actual position as the axis is still.
The differences in execution effect between command position and actual position as the reference
position exist as illustrated below if the axis is in motion as MC_SetPosition is executed. If not zero, the
difference between command position and actual position is caused by the command response time.

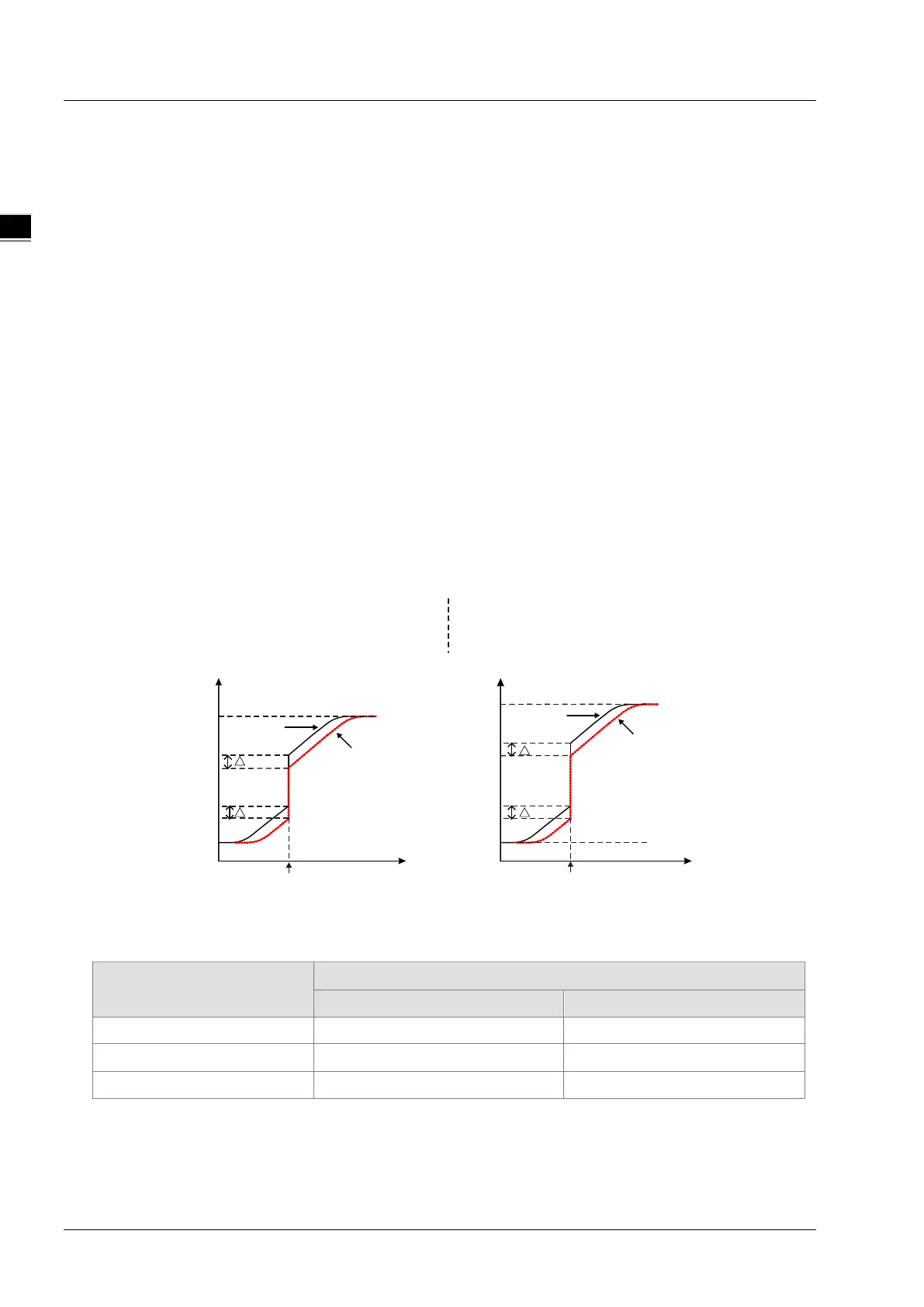

When MC_SetPosition is executed in absolute mode with Position set to 6000 while the axis is positioning
with the target position of 5000, the command position and actual position of the axis are 3000 and 2300
respectively (difference value △P =700). The command position changes to 6000 and actual position
becomes 5300 (5300=6000-△P) after the instruction is executed if the reference position is the command
position as the following left figure shows.
The actual position of the axis changes to 6000 and command position becomes 6700 (6700=6000+△P)
after the instruction is executed if the reference position is the actual position as the following right figure
shows.

Relationship between Axis Type and Reference Type
Different axis types are applicable to different reference types as shown in the following table.
Axis type
Reference Type
Command Position Actual Position
Real axis
YES
YES
Encoder axis
YES
YES
Virtual axis
YES
YES
There will be an error in the instruction execution if the axis on which MC_SetPosition is executed does
not support the selected Reference Type.
Position
8000
1000
0
Reference Position Comma nd Position=
ReferenceType=0
Comm and Position
Actual Position
2300
3000
5300
6000
Re fere nce Posi tion=Actual Position
ReferenceType=1
Position
8700
1000
0
Command Posi tion
2300
3000
6000
6700
P
P
P
P
Position=6000
Relative=FALSE
Actual Position
Instruction
Execution
Instruction
Execution
Time Time
