Delta Electronics DVP15MC11T User Manual

Chapter 6 Wiring, Communication Setting and Network Construction
6
_

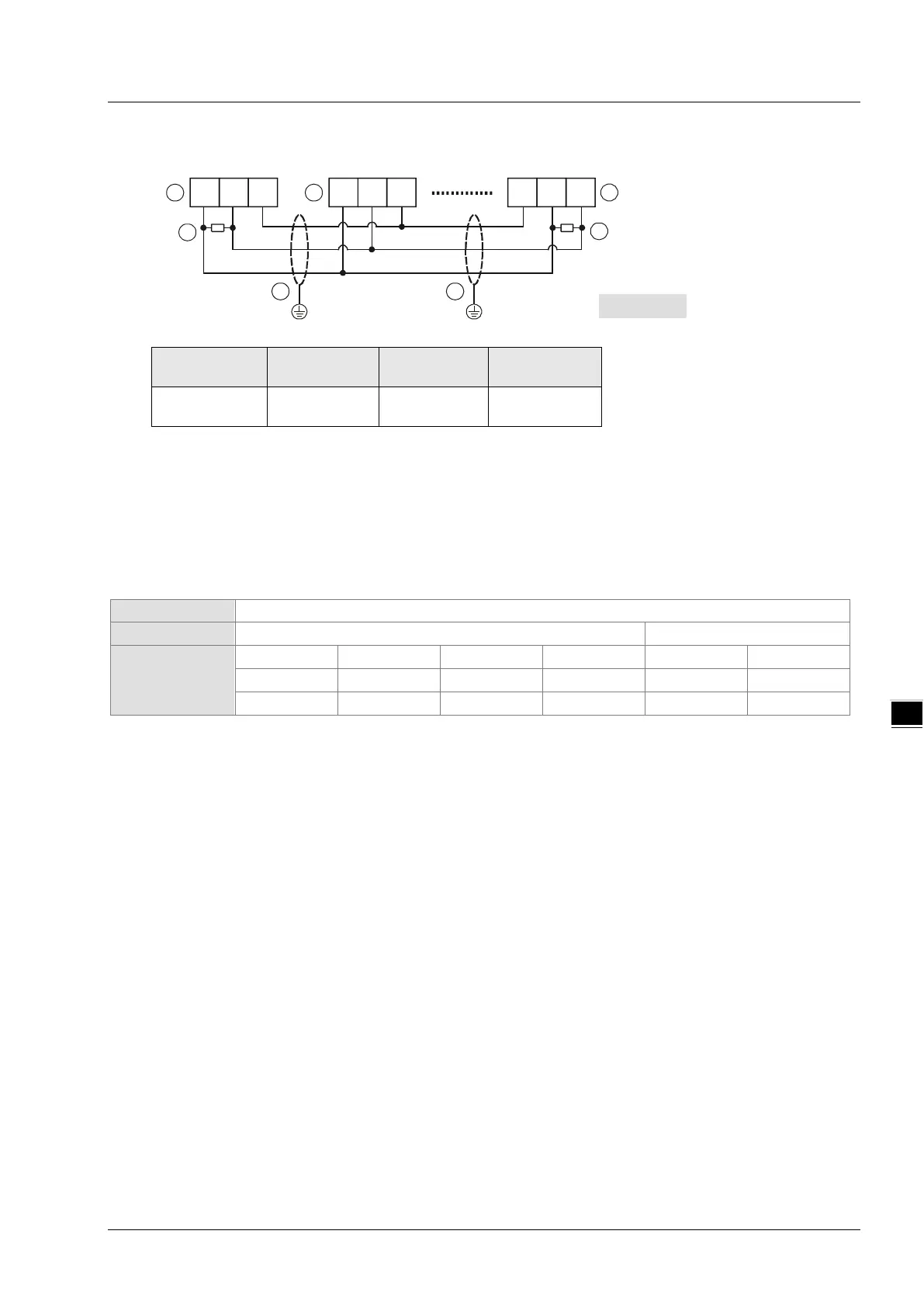

 RS-485 Wiring:
Explanation of numbers
   
Master Slave
Terminal
resistor
Shielded
cable
Notes:
1. Terminal resistors with the value of 120Ω are recommended to connect to both ends of the bus.
2. To ensure high communication quality, please use the shielded twisted pair cable (20AWG).
3. When the internal voltages of two devices are different, make SG (Signal Ground) of the two devices
connected with each other to balance their SG voltages and make the communication more stable.
 Communication Format that RS-485 Supports
RS-485 communication port supports ASCII or RTU communication formats and the supported baud rate can
be up to 115200bps.
Baud rate
9600, 19200, 38400, 57600, 115200
Mode
ASCII
RTU
Communication
format
7,E,1
7,E,2
7,N,1
7,N,2
8,E,1
8,E,2
7,O,1
7,O,2
8,E,1
8,E,2
8,N,1
8,N,2
8,N,1
8,N,2
8,O,1
8,O,2
8,O,1
8,O,2
Figure 19
D+
D-
SG
D+
D-
SG SG
D+ D-
3
4
1
2
2
3
4
6-9
