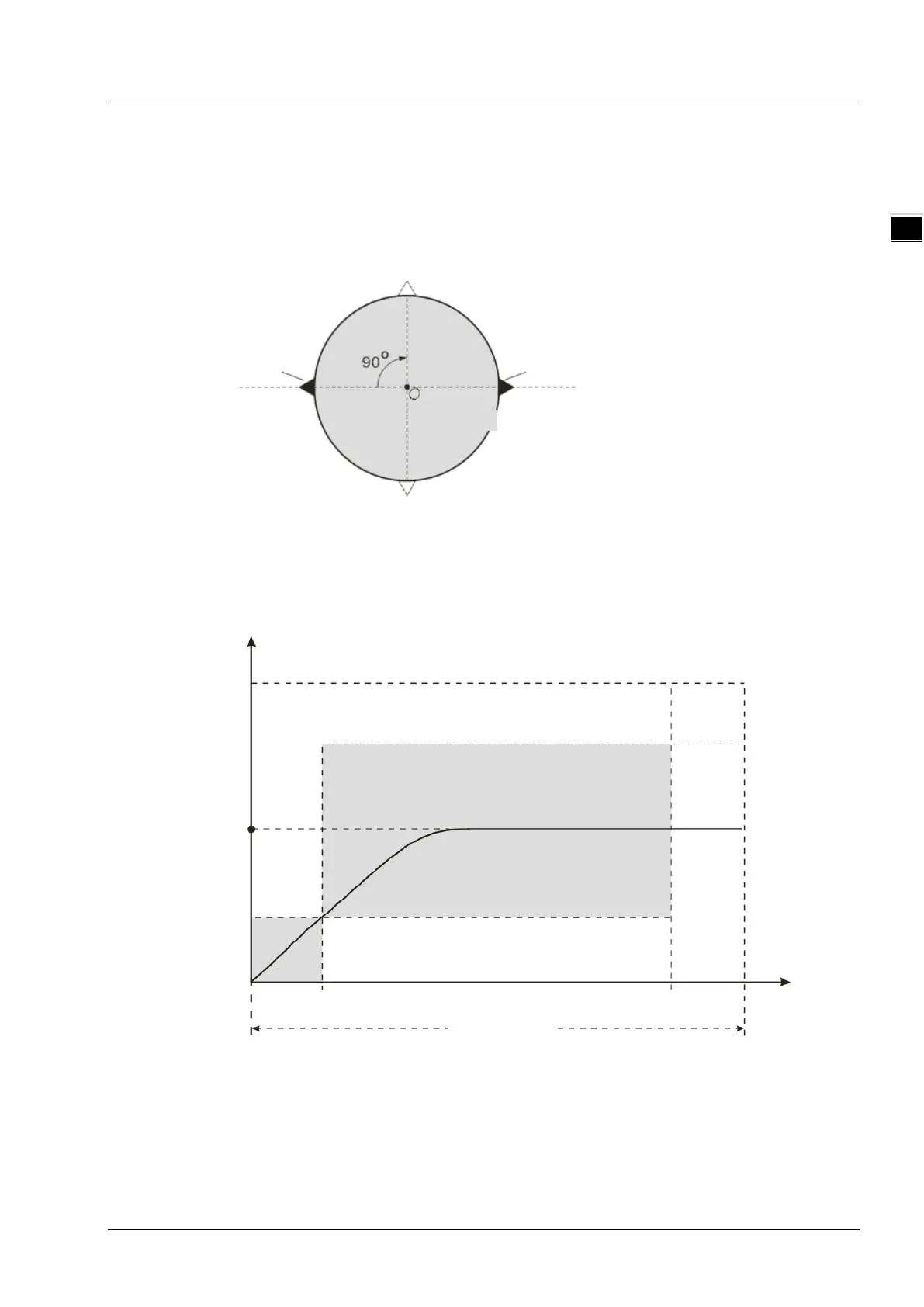

When the rotary roller is mounted with multiple knives, the distances between knives should be the same
and the cutting position is at the center of the distance between knives. See the two-knife figure below.
5. The end curve
It is the rotary-cut curve when the rotary cut function is broken away.
After the instruction “APF_RotaryCut_Out” is started up, the system will use the curve to make the rotary
cut axis break away from the rotary cut state. Eventually, the knife stops at the end position as shown in
the figure above.
The end position is based on the rotary cut axis. For the single knife, the end position is the entry position
and it is also right above the rotary cut roller.
Rotarycut axis
Feed axis
Start of SYNC area
End of SYNC area
Adjustment area
SYNC area
End point
SYNC
area
Cutting length
Knife 1
Horizontal line
Knife 2
Cutting position
O
Cutting position
11-181
