when the home switch is OFF. Where the axis stands is the home position when the
home switch is ON.
Homing depending on the home switch and positive limit switch (
○
24E A: mode 24)
 Mode 25

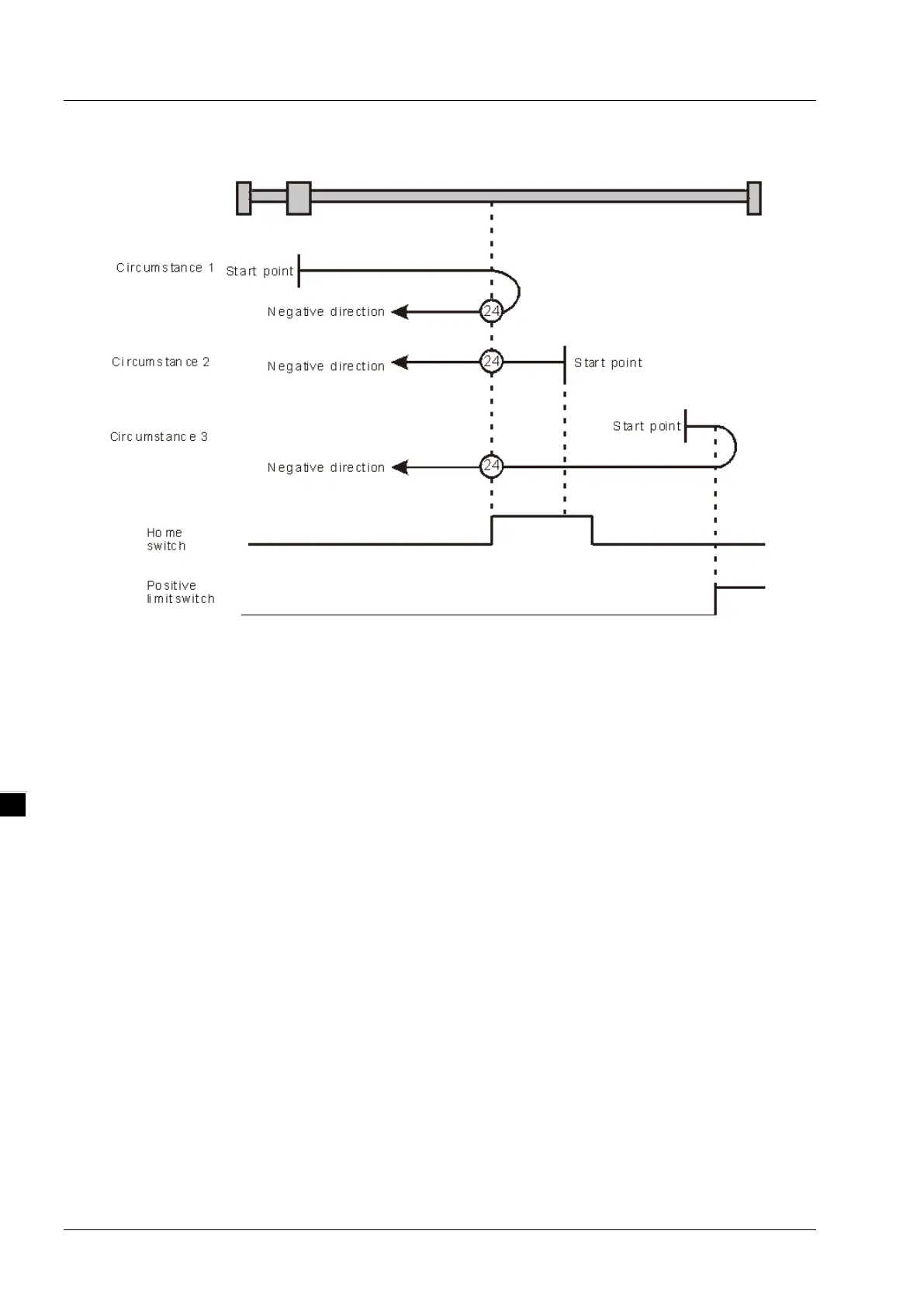

Circumstance 1： MC_Home instruction is executed while the home switch is OFF and the axis starts to
move in the positive direction at the first-phase speed. The axis moves at the
second-phase speed when the home switch is ON. The motion direction changes and
the axis moves at the second-phase speed when the home switch is OFF. Where the
axis stands is the home position when the home switch is ON.
Circumstance 2： MC_Home instruction is executed while the home switch is ON and the axis moves in
the positive direction at the second-phase speed. The motion direction changes and
the axis moves at the second-phase speed when the home switch is OFF. Where the
axis stands is the home position when the home switch is ON.
Circumstance 3： MC_Home instruction is executed while the home switch is OFF. The axis moves in
the positive direction at the first-phase speed. The motion direction changes and the
axis moves at the first-phase speed when the home switch is OFF and the positive
limit switch is ON. Where the axis stands is the home position when the home switch
is ON.
