DVP15MC11T Operation Manual
E

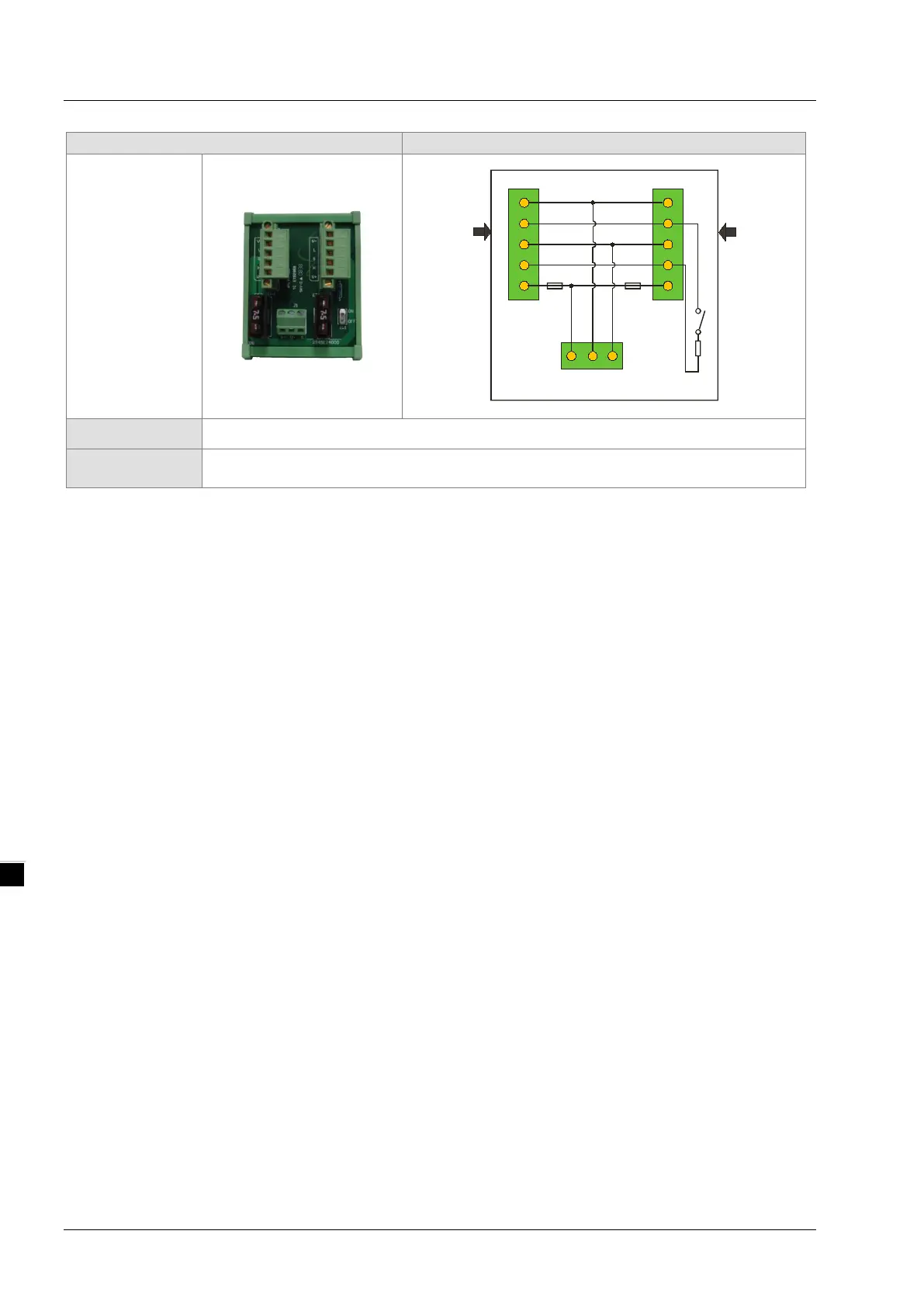

Model
Circuit figure
TAP-CP01
Power
distribution
box
TB2
TB1
Thick/Ttin Cable
Thick/Thin Cable
V+
H
S
L
V-
V+
S
V-
121
J1
V+
H
S
L
V-
EF2
EF1
Connector
Removable terminals5.08mm
Terminal
resistor
120Ω
Terminal resistor
As required in the DeviceNet protocol, the two ends of the DeviceNet communication cable should
connect a terminal resistor of 120Ω (1/4W) respectively.
1. The terminal resistor connected to the start of the cable:
The terminal resistor on the distribution box can be used by setting the terminal resistor switch to ON.
2. The terminal resistor connected to the terminal end of the cable:
A terminal resistor of 120Ω (1/4W) is needed for connecting to the terminal end of the cable.
E-6
