ASDA-B2 Chapter 7 Parameters
Revision May, 2018 7-47
NOTE
This function is only suitable for non-contactable application, such
as electric discharge machines. (Please setup P1-37 correctly).

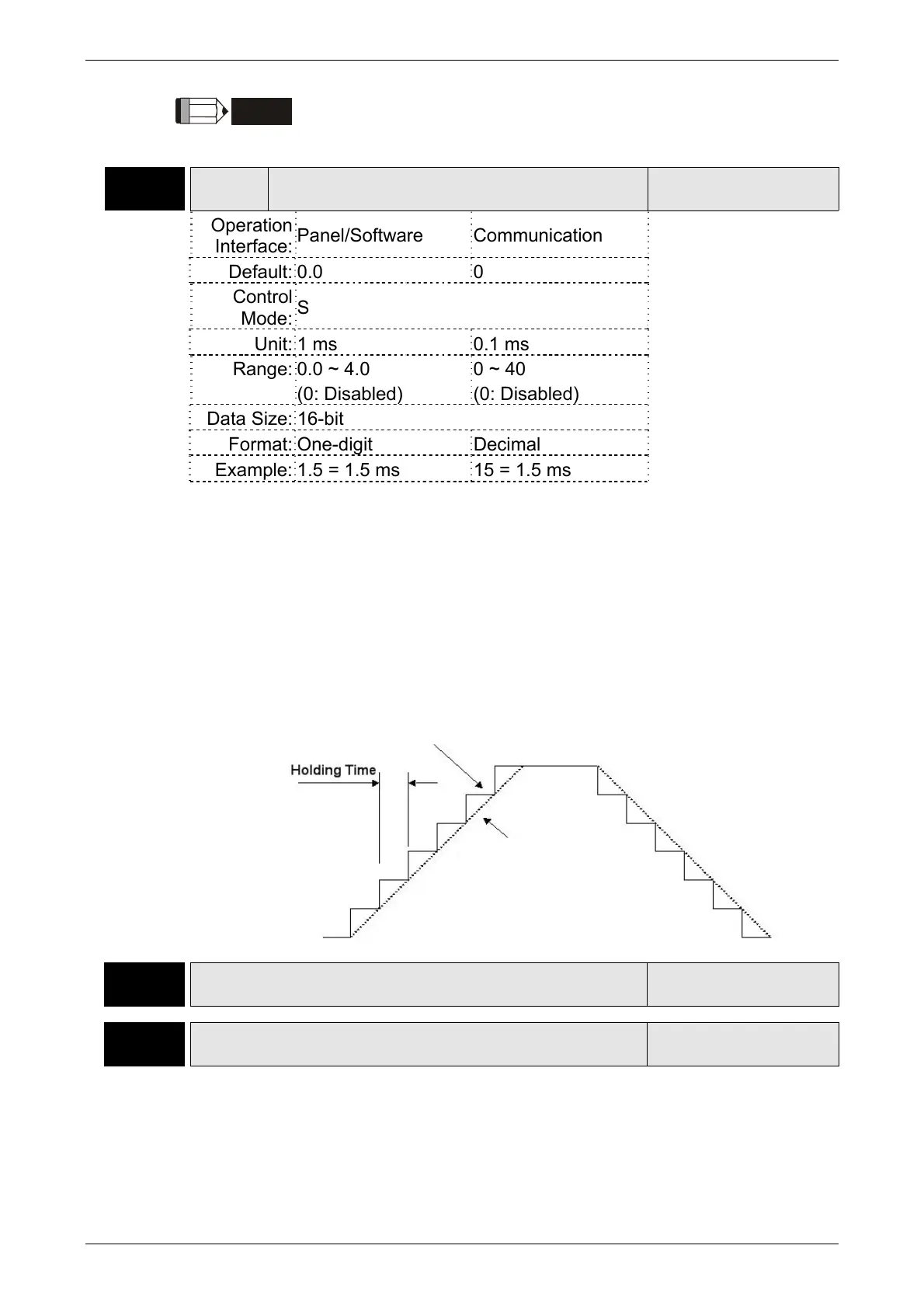

P1-59 MFLT
Analog Speed Command
Address: 0176H
0177H
Operation
Interface:
Panel/Software Communication
Related Section: N/A
Default: 0.0 0
Control
Mode:
S
Unit: 1 ms 0.1 ms
Range: 0.0 ~ 4.0
(0: Disabled)
0 ~ 40
(0: Disabled)
Data Size: 16-bit
Format: One-digit Decimal
Example: 1.5 = 1.5 ms 15 = 1.5 ms
Settings: (Moving filter)
0: Disabled
P1-06 is low-pass filter and P1-59 is moving filter. The difference
step command; while the low-pass filter brings better smooth
effect to command end.
Therefore, it is suggested that if the speed loop receives the
command from the controller for forming the position control loop,
then low-pass filter can be used. If it is only for the speed control,
then it should use Moving Filter for better smoothing.
P1-60
Reserved
Address: 0178H
0179H
P1-61
Reserved
Address: 017AH
017BH
Command that has
gone through moving
filter
Original step analog speed command
To Next Page
