Chapter 4 Installing Hardware

4-21

⑤

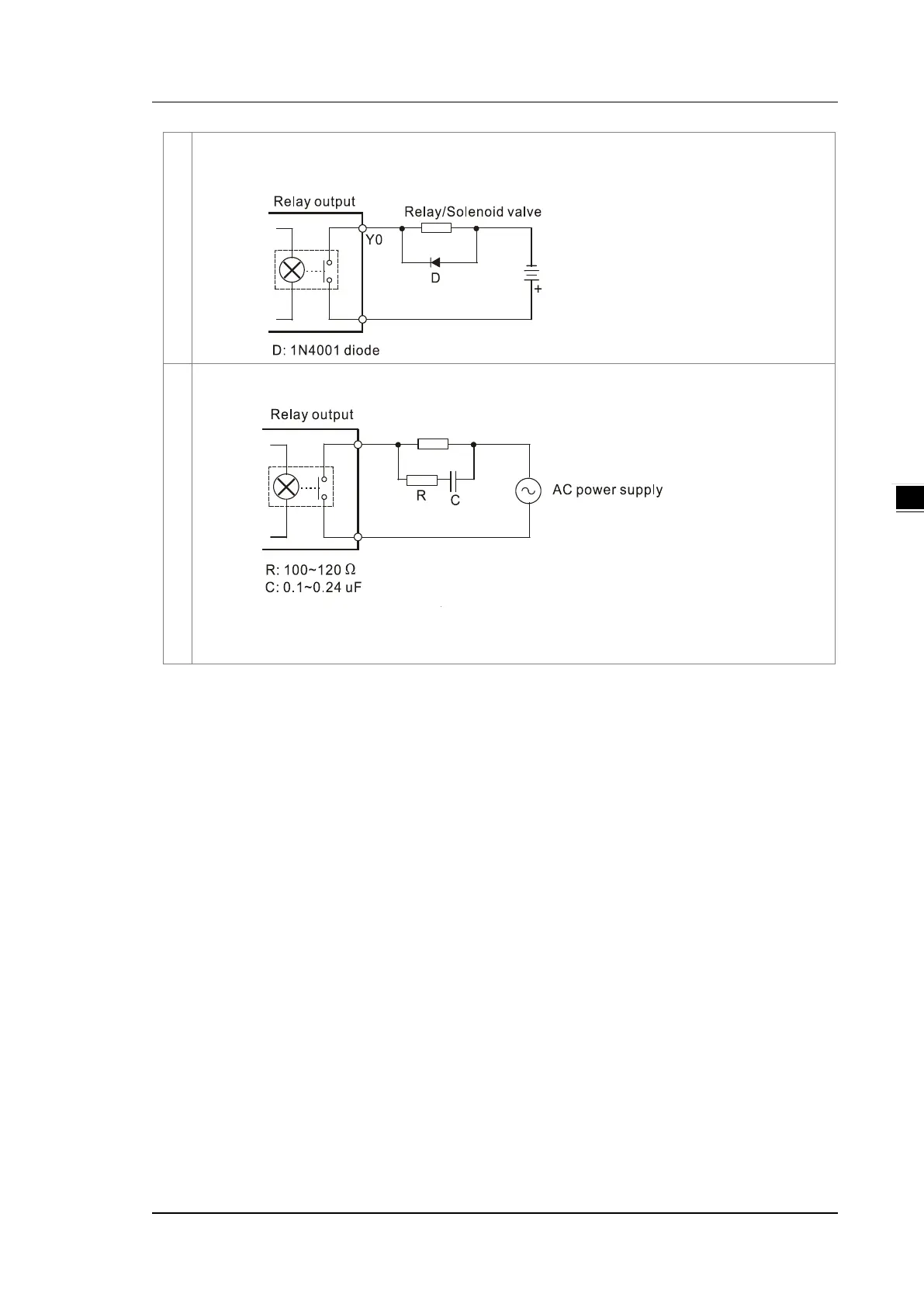

A relay or a solenoid valve is used as a DC load. A diode is connected in parallel to absorb the surge

voltage that occurs when the load is OFF.

⑥

An electromagnetic contactor is used as an AC load. A resistor and a capacitor are connected in

parallel to absorb the surge voltage that occurs when the load is OFF.

Electromagnetic contactor

V DC power supply

DELTA_IA-PLC_DVP-ES3-EX3-SV3-SX31
