DVP-ES3/EX3/SV3/SX3 Series Hardware and Operation Manual

4-22

⑦

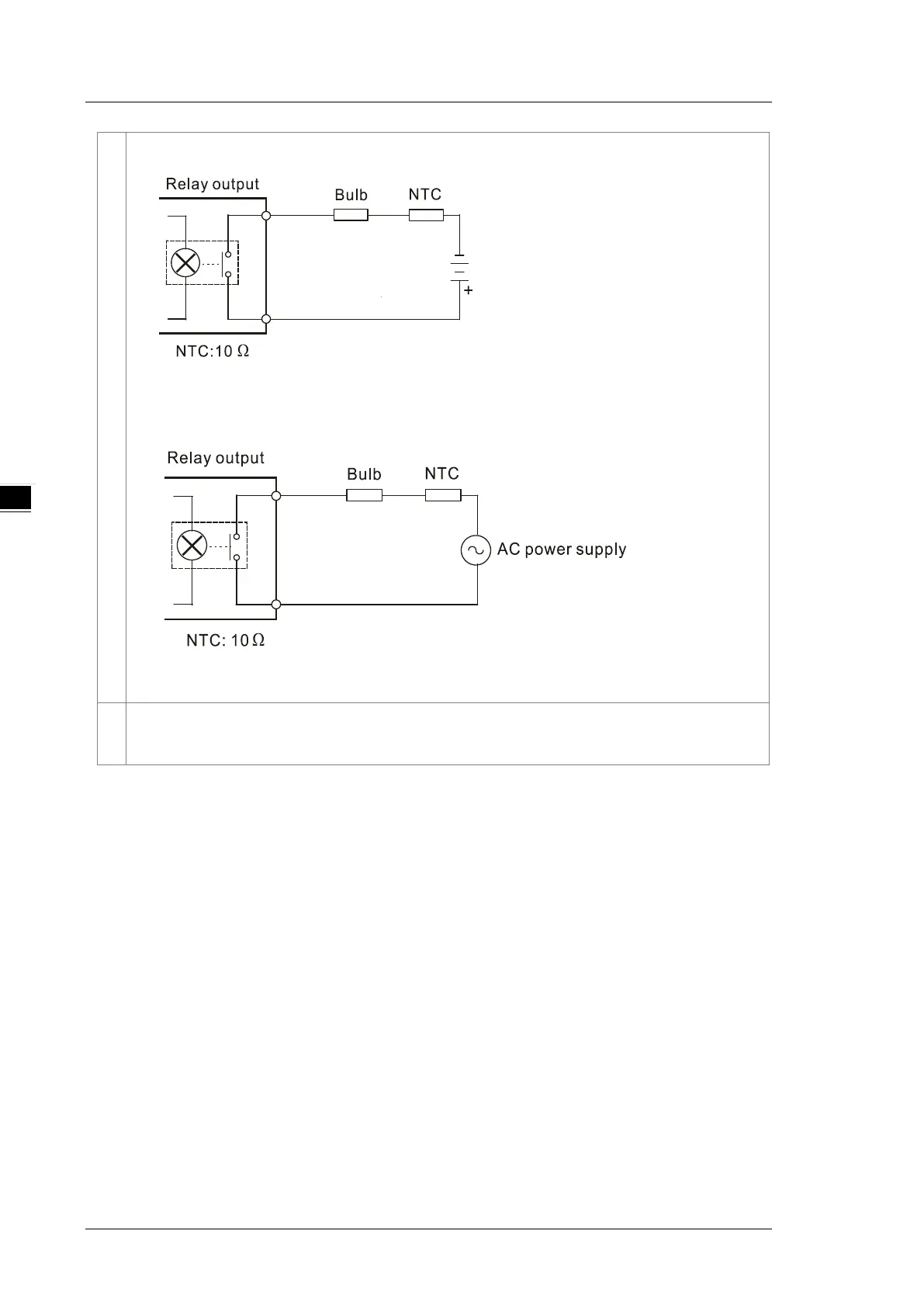

A bulb (incandescent lamp) is used as a DC load. A thermistor is connected in series to absorb the

surge current that occurs when the load is ON.

V DC power supply

Y1 Y2/

A bulb (neon lamp) is used as an AC load. A thermistor is connected in series to absorb the surge

current that occurs when the load is ON.

Y6/Y7

○8

Mutually exclusive output: For example, Y3 controls the clockwise rotation of the motor, and Y4

controls the counterclockwise rotation of the motor. This interlock circuit and the program in the PLC

ensure that there are protective measures if an abnormal condition occurs.
