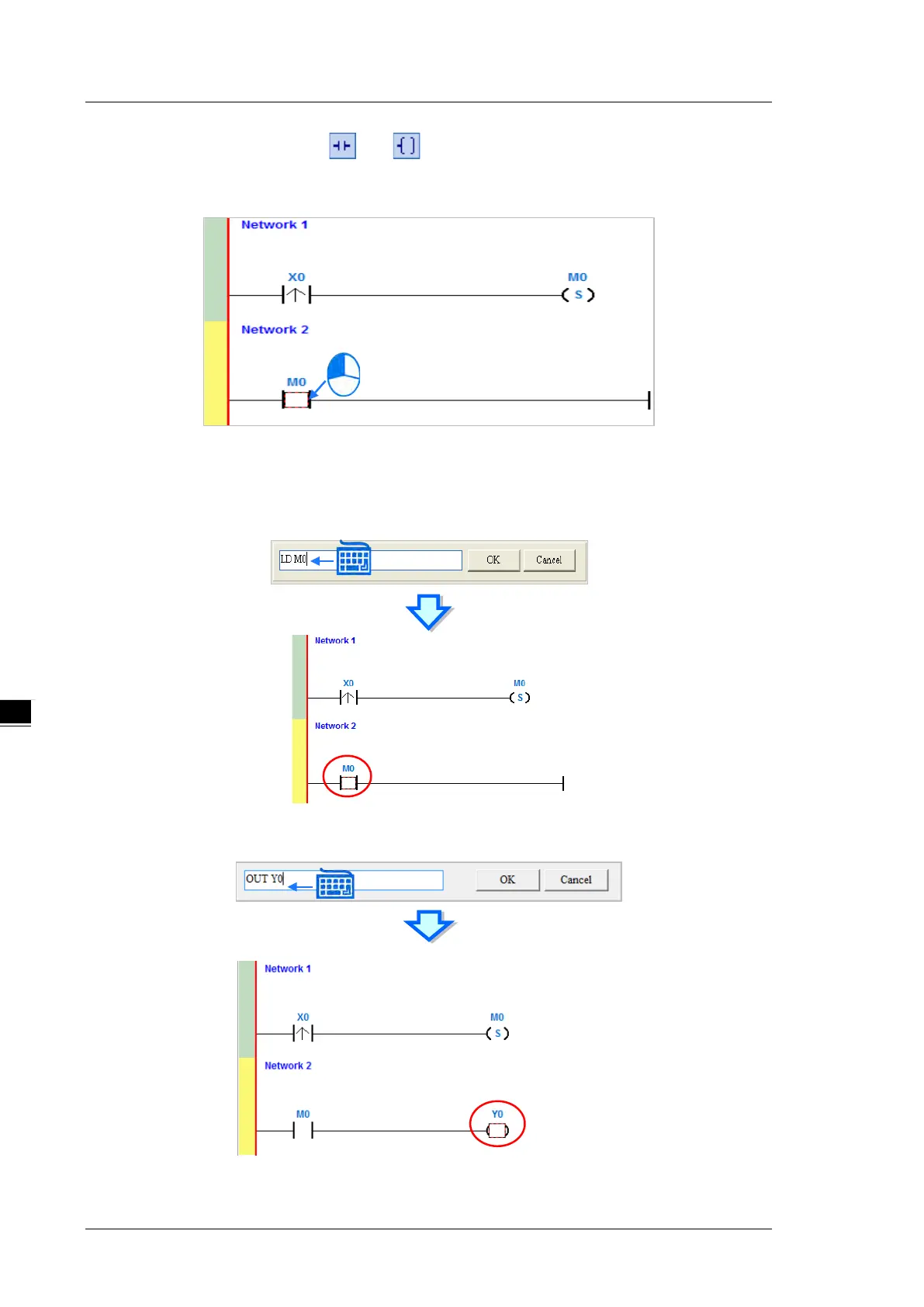

Create a contact and a coil by clicking and on the toolbar or by typing instructions.
(1) Click the line in Network 2.
(2) Type the IL instruction “LD M0”. This instruction is not case-sensitive. As soon as you type the IL
instruction, a box which you can edit appears. After you finish typing the IL instruction, press Enter on
the keyboard or click
OK
at the right side of the box.
(3) Type the IL instruction “OUT Y0”, and write the program shown below.
