Chapter 8 Hardware Configuration
Device Name: Users can select a device type in the Device Name drop-down list.
Device Number: Users can type a device address in the Device Number field.
State & Value: Users can set s condition of triggering the sending of an email here.
Periodic Timer
The system periodically sends an email. How often the system sends an email depends on the Trigger Min Cycle
interval in the Trigger Setting section.

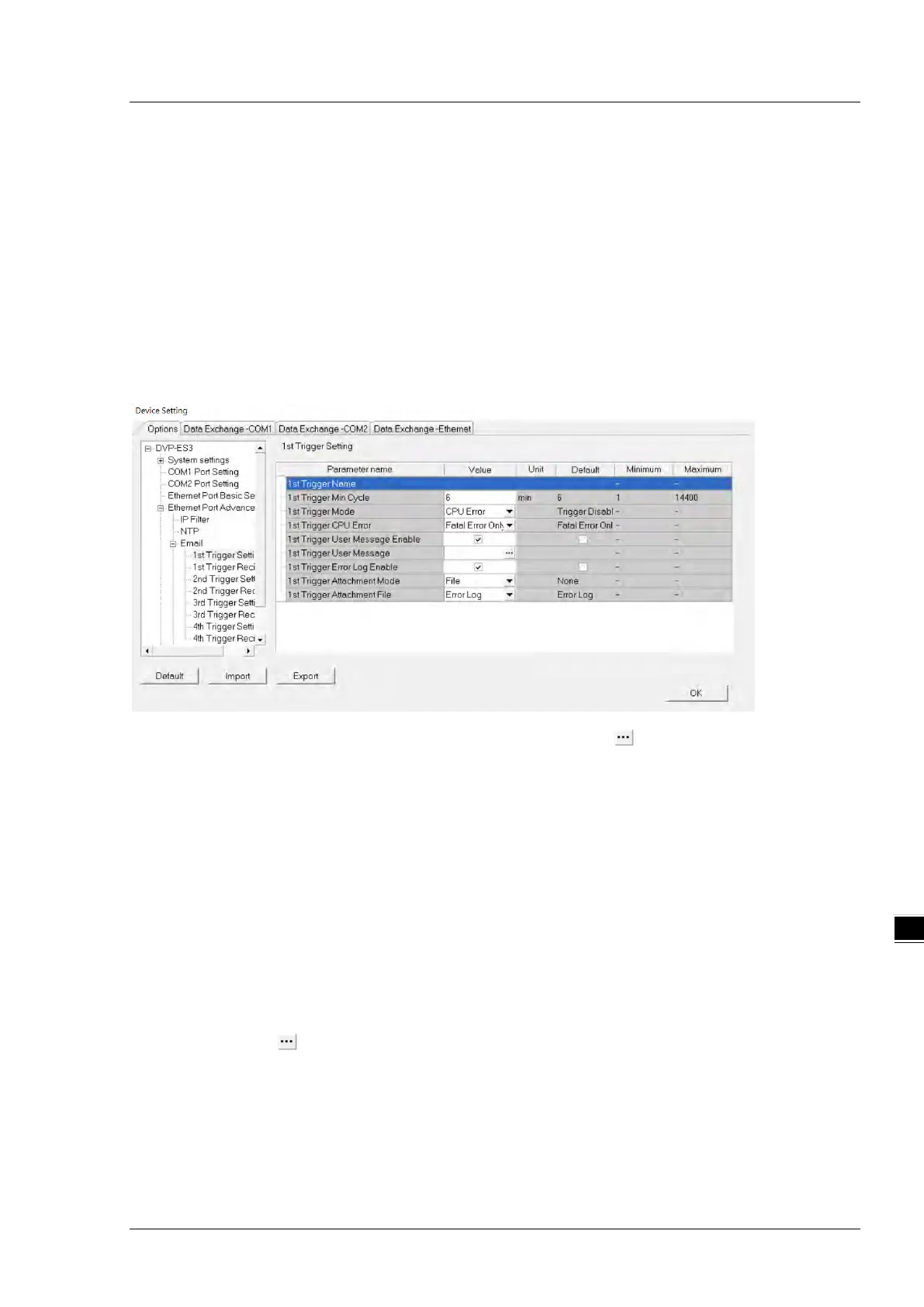

When you set any trigger mode, the user message and error log related parameters appear.
Select the
Trigger User Message
Enable
check box and then click the
to the right side of
Trigger User
Message
.
Type some content for the email text in the dialog box.
If you select the
Error Log
Enable
check box, the system automatically adds the error log to the email content.
Trigger Attachment Mode determines whether to add an attachment to the email. Check the maximum size allowed
for the email file before adding an attachment. Refer to the relevant email operation manuals for more information.
If you select None, no attachment is inserted.
File
Allows you to select an error log or the system backup file from the memory card as the email attachment.
PLC Device
The system automatically retrieves the device states or values listed in the table as the email attachment. After you
select this option, click in the following dialog box to open the Attachment dialog box. You can set a maximum of
two groups of devices. For example, if the condition is met, the values in D0–D9 are sent as an attachment.
