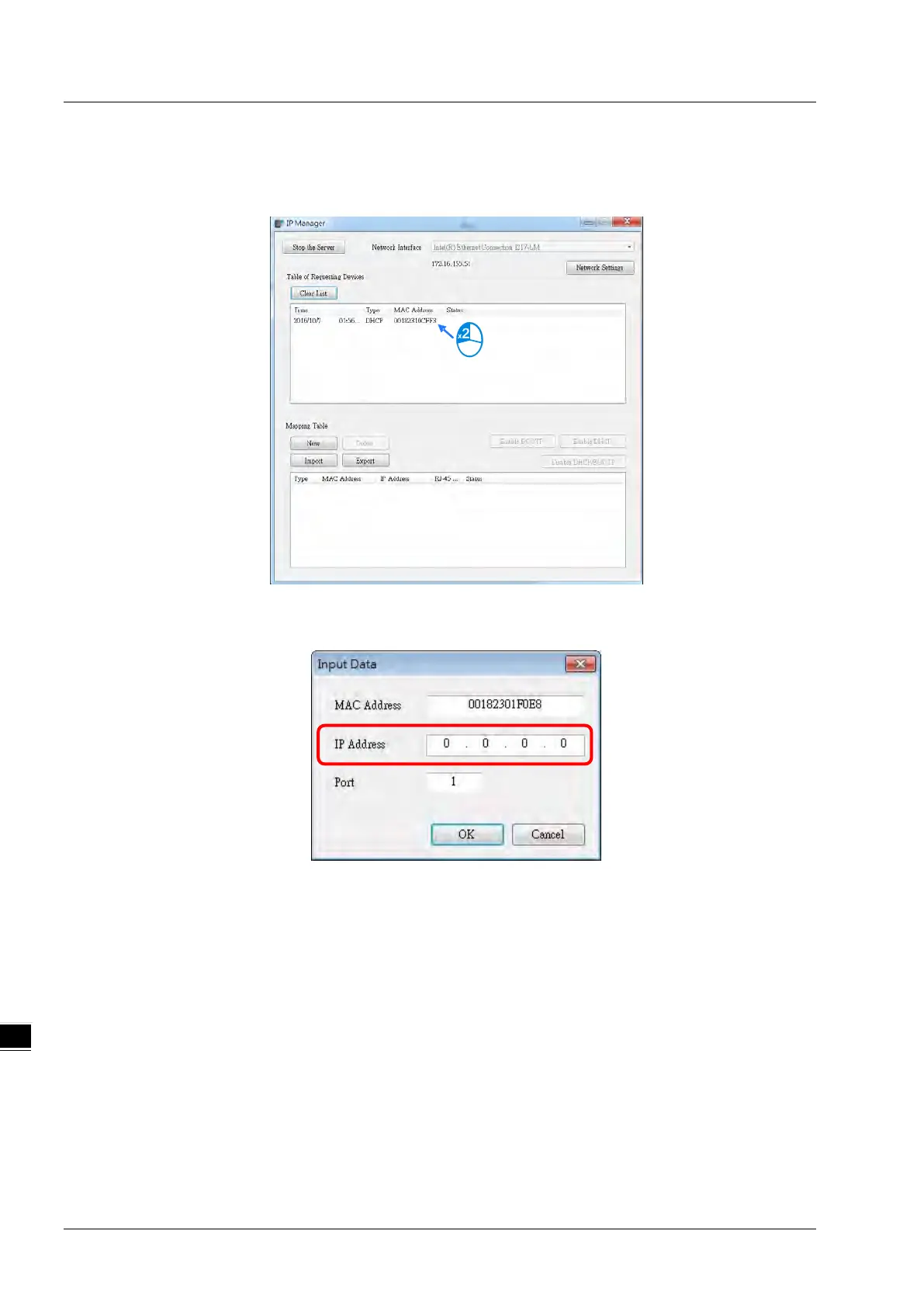

3. Set up the IP address

 Double-click the listed MAC address for your device to open the Input Data dialog box.



Enter the IP address and click OK.

4. Disable DHCP/BOOTP

Click the device in the Mapping Table that you want to disable, then click Disable DHCP/BOOTP. The selected

device does not send DHCP/BOOTP requests. To change the IP address receiving mode, refer to Section 9.4.2.4

for more information.

DELTA_IA-PLC_DVP-ES3-EX3-SV3-SX31
Revision History2
Table of Contents5
Chapter 1 Product Introduction15
- 1.1 Overview16
  - 1.1.1 DVP-ES3/EX3 Series CPU Modules and Their Extension Modules17
  - 1.1.2 DVP-SV3/SX3 Series CPU Modules and Their Extension Modules22
- 1.2 Overview29
- 1.3 Characteristics30
Chapter 2 Specifications and System Configuration39
- 2.1 DVP-ES3/EX3 Series40
  - 2.1.1 General Specifications40
  - 2.1.2 CPU Module Specifications41
- 2.2 DVP-SV3/SX3 Series56
  - 2.2.1 General Specifications56
  - 2.2.2 CPU Module Specifications57
- 2.3 Power Supply Module66
  - 2.3.1 General Specifications66
  - 2.3.2 Power Supply Module Profiles67
Chapter 3 Installing Software69
- 3.1 Installing and Uninstalling ISPSoft70
  - 3.1.1 Installing ISPSoft71
  - 3.1.2 Uninstalling ISPSoft77
- 3.2 Installing DIADesigner79
- 3.3 Installing and Uninstalling COMMGR81
  - 3.3.1 Installing COMMGR81
  - 3.3.2 Uninstalling COMMGR84
Chapter 4 Installing Hardware85
- 4.1 DVP-ES3/EX3 Series87
- 4.2 DVP-SV3/SX3 Series112
Chapter 5 CPU and Module Devices141
- 5.1 Introduction on CPU Devices142
- 5.2. CPU Device Functions146
Chapter 6 Writing a Program161
- 6.1 Quick Start162
- 6.2 Procedure for Creating a Project in ISPSoft164
- 6.3 Creating a Project165
- 6.4 Hardware Configuration166
  - 6.4.1 Configuring a Module166
  - 6.4.2 Setting the Parameters167
- 6.5 Creating a Program168
- 6.6 Testing and Debugging a Program186
- 6.7 Setting a Real-time Clock198
Chapter 7 Memory Card201
- 7.1 Overview of Memory Cards202
  - 7.1.1 Appearances of Memory Cards202
  - 7.1.2 Memory Card Specifications202
- 7.2 Before using a Memory Card203
  - 7.2.1 Formatting a Memory Card203
- 7.3 Installing and Removing a Memory Card204
- 7.4 Memory Card Contents207
  - 7.4.1 Initializing a Memory Card207
  - 7.4.2 Folder Structure in a Memory Card207
- 7.5 Introduction to the CARD Utility209
- 7.6 Backing Up a Project211
- 7.7 Restoring a Project217
- 7.8 Restoration Starts Once CPU is supplied with Power221
- 7.9 CPU Error Log222
Chapter 8 Hardware Configuration and Data Exchange Setups223
- 8.1 Hardware Configuration Tool for DVP-ES3 Series Modules – ISPSoft HWCONFIG224
- 8.2 Hardware Configuration Tool for DVP-ES3/EX3/SV3/SX3 Series Modules – DIADesigner229
- 8.3 Setting the Parameters in a DVP-ES3 Series CPU Module – ISPSoft233
  - 8.3.1 Opening the PLC Parameter Setting Window233
  - 8.3.2 Setting the Basic CPU Parameters234
- 8.4 Setting the Parameters in a DVP-ES3/EX3/SV3/SX3 Series CPU Module – DIADesigner253
  - 8.4.1 Opening the Controller Parameter Setting Window253
  - 8.4.2 Setting the Basic CPU Parameters254
- 8.5 Data Exchange272
  - 8.5.1 Device Settings Dialog Box Descriptions - ISPSoft272
    - 8.5.1.1 Data Exchange - COM1 and Data Exchange - COM2273
    - 8.5.1.2 Data Exchange - Ethernet274
  - 8.5.2 Device Settings Dialog Box Descriptions - DIADesigner276
Chapter 9. EtherNet/IP Specification and Operation283
- 9.1 Introduction285
- 9.2 Installation289
  - 9.2.1 EtherNet/IP Device289
  - 9.2.2 Network Cable Installation289
- 9.3 Specifications293
- 9.4 EIP Builder296
- 9.5 Explicit Message318
- 9.6 Troubleshooting319
  - 9.6.1 EtherNet/IP Error Codes and Their Solutions319
- 9.7 Studio 5000 Software Operation322
- 9.8 CIP Object325
- 9.9 Delta EIP Product List353
- 9.10 Network Security354
- 9.11 Operation and Monitor on the Web355
Chapter 10 CANopen Function and Operation369
- 10.1 Introduction to CANopen370
- 10.2 Installation and Network Topology376
- 10.3 The CANopen Protocol383
- 10.4 Sending SDO, NMT and Reading Emergency Message through the Ladder Diagram391
- 10.5 Troubleshooting399
  - 10.5.1 CANopen Network Node State Display399
- 10.6 Application Example402
- 10.7 Object Dictionary411
Chapter 11 EtherCAT Function and Operation417
- 11.1 Introduction418
- 11.2 EtherCAT Port418
- 11.3 Wiring419
- 11.4 IP Settings419
- 11.5 SM/SR419
- 11.6 EtherCAT Master420
- 11.7 Webpage421
- 11.8 Network Security422
Chapter 12 CPU Module Operating Principles423
- 12.1 CPU Module Operations424
- 12.2 CPU Module Operating Modes426
  - 12.2.1 Operating Modes426
  - 12.2.2 Status and Operation under Different Operating Modes426
Chapter 13 Data Tracer and Data Logger429
- 13.1 Data Tracer430
  - 13.1.1 About Data Tracer430
  - 13.1.2 ISPSoft Demostration Example434
- 13.2 Data Logger435
  - 13.2.1 About Data Logger435
  - 13.2.2 Related SM Flags and SR Registors440
Chapter 14 Troubleshooting441
- 14.1 Troubleshooting441
- 14.2 Troubleshooting for CPU Modules447
- 14.3 Troubleshooting for Other Modules457
- 14.4 LED Indicators and Error Codes for CPU Modules457
Appendix A Installing a USB Driver463
- A.1 Disable Driver Signature Enforcement464
  - A.1.1 Disable Driver Signature Enforcement in Windows 8464
  - A.1.2 Disable Driver Signature Enforcement in Windows 10466
- A.2 Installing the USB Driver468
- A.3 Notes on Utilizing USB Communication473
Appendix B Device Addresses475
- B.1 Standard Modbus Device Addresses476
- B.2 Function Codes and Number of Devices Supported for Modbus Protocols477
Appendix C EMC Standards479
- C.1 EMC Standards for an ES3/EX3/SV3/SX3 Series System480
Appendix D Maintenance and Inspection483
- D.1 Cautions484
- D.2 Daily Maintenance485
  - D.2.1 Daily Inspection485
- D.3 Periodic Maintenance486
  - D.3.1 Periodic Inspection486
