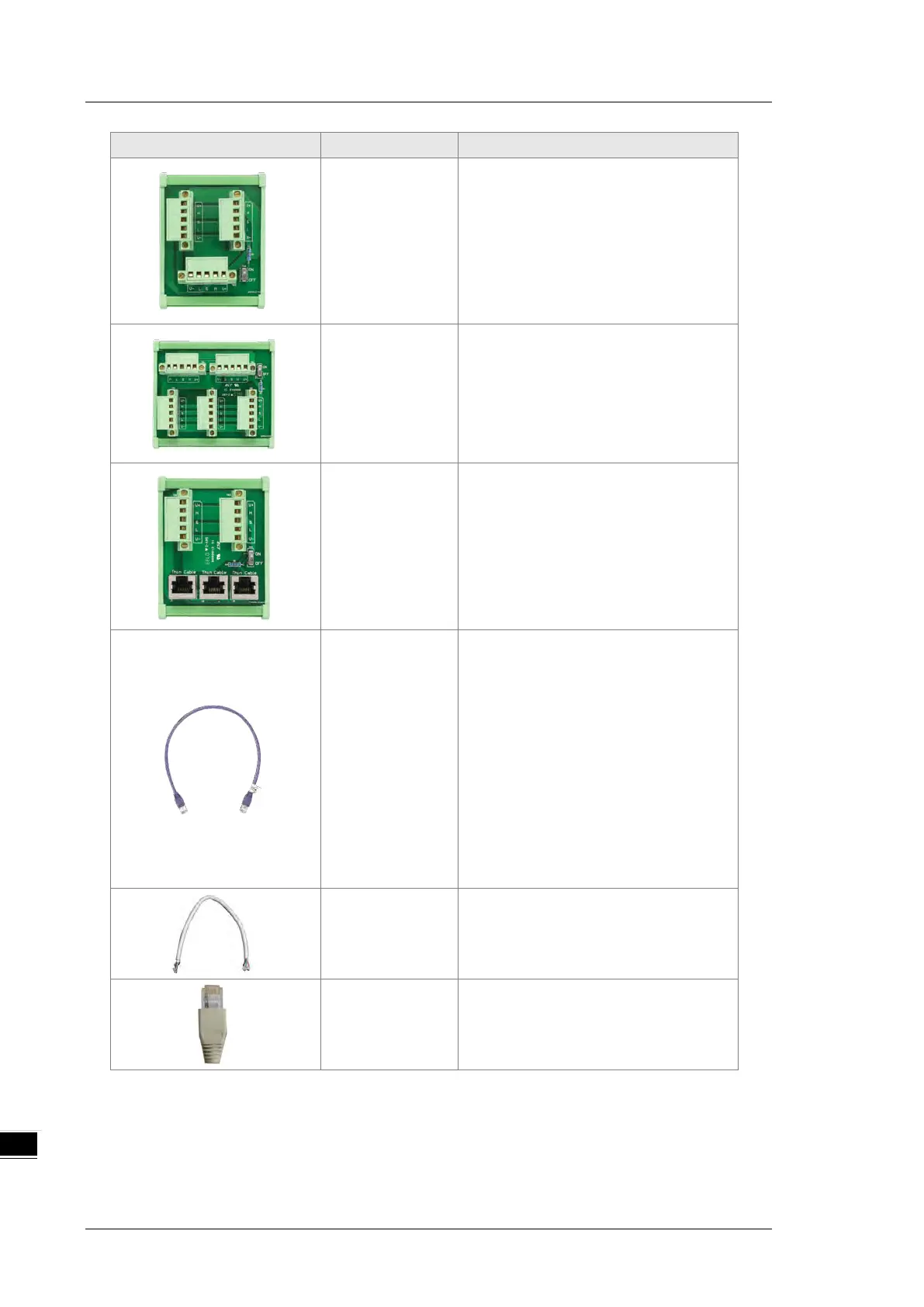

Product
Model
Function
TAP-CN01
This CANopen network topology
distribution box has a 120 ohm resistor
enabled with a switch.
TAP-CN02
This CANopen network topology
distribution box has a 120 ohm resistor
enabled with a switch.
TAP-CN03
This CANopen network topology
distribution box has a 120 ohm resistor
enabled with switch.
UC-CMC003-01A
UC-CMC005-01A
UC-CMC010-01A
UC-CMC015-01A
UC-CMC020-01A
UC-CMC030-01A
UC-CMC050-01A
UC-CMC100-01A
UC-CMC200-01A
These CANopen sub cables have RJ45
connectors at both ends.
UC-CMC003-01A: 0.3 meters
UC-CMC005-01A: 0.5 meters
UC-CMC010-01A: 1 meter
UC-CMC015-01A: 1.5 meters
UC-CMC020-01A: 2 meters
UC-CMC030-01A: 3 meters
UC-CMC050-01A: 5 meters
UC-CMC100-01A: 10 meters
UC-CMC200-01A: 20 meters
UC-DN01Z-01A
UC-DN01Z-02A
CANopen network cable
UC-DN01Z-01A: CANopen main cable
UC-DN01Z-02A: CANopen sub cable
TAP-TR01
This 120 ohm resistor has an RJ45
connector.
