Chapter 10 CANopen Function and Operation

10-41

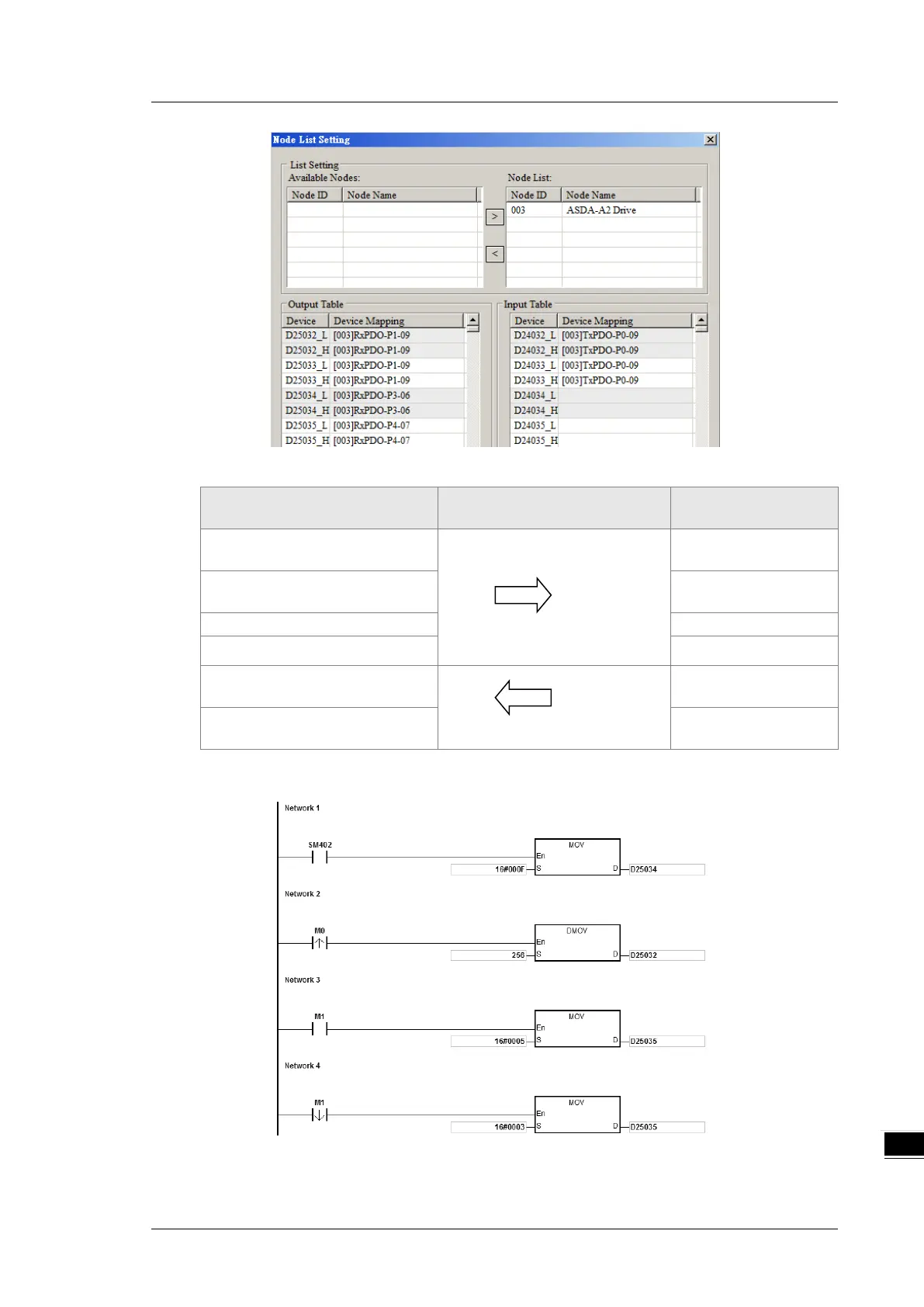

The mapping relation between master and slave:

DVP-ES3/EX3/SV3/SX3 Series PLC

master register

Data transmission on CANopen

bus

A2 device

D25032

Low word of P1-09 of

servo

D25033

High word of P1-09 of

servo

D25034

P3-06 of servo

D25037 P4-07 of servo

D24032

Low word of P0-09 of

servo

D24033

High word of P0-09 of

servo

6. Program control: D25032 is given the value 256 in ISPSoft; that is, the speed command is set as

256r/min in the following diagram.
