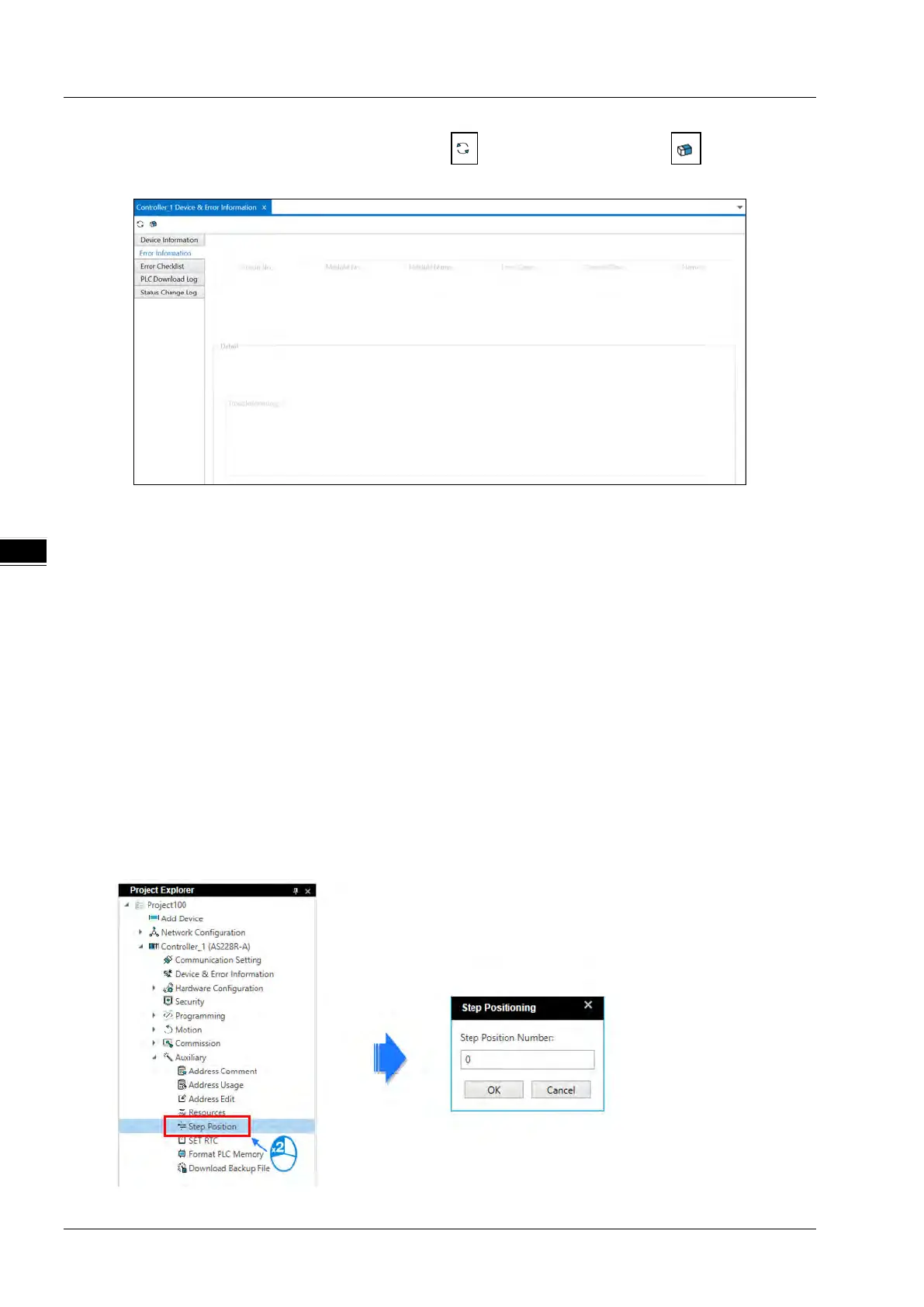

(2) The Device & Error Information window appears. Click to refresh the log and click to clear the error
log in the window and the error log in the CPU module.
 Group No.: The number 1 indicates that the error occurred in the CPU module or the right-side module 1.
 Module No.: The number 0 indicates that the error occurred in the CPU module or the remote module. T
 Module name: Model names of the CPU, remote, and extension modules.
 Error Code: Error codes in the error log.
 Date & Time: The date and time the error occurred. The most recently occurring error is listed on the top.
 Name: Here shows the descriptions for the error.
 Troubleshooting: Here shows methods for resolving errors.
(3) If the error occured is an exceeding device ragne error (SM0 = ON), stored in SR0 or a program syntax error (SM5 =
ON), stored in SR4 you can use the following steps to see the problematic step in the program.
 SM0 = ON: Check the value (32-bit) in SR1 to see the latest exceeding device range error in the program.
 SM5 = ON: Check the value (32-bit) in SR5 to see the latest syntax error step in the program.
 After knowing which the problematic step is, go to DIADesigner -> Controller -> Auxiliary -> Step Position and then
enter the number of the problematic step, the system will take you to the specified step in the program.
