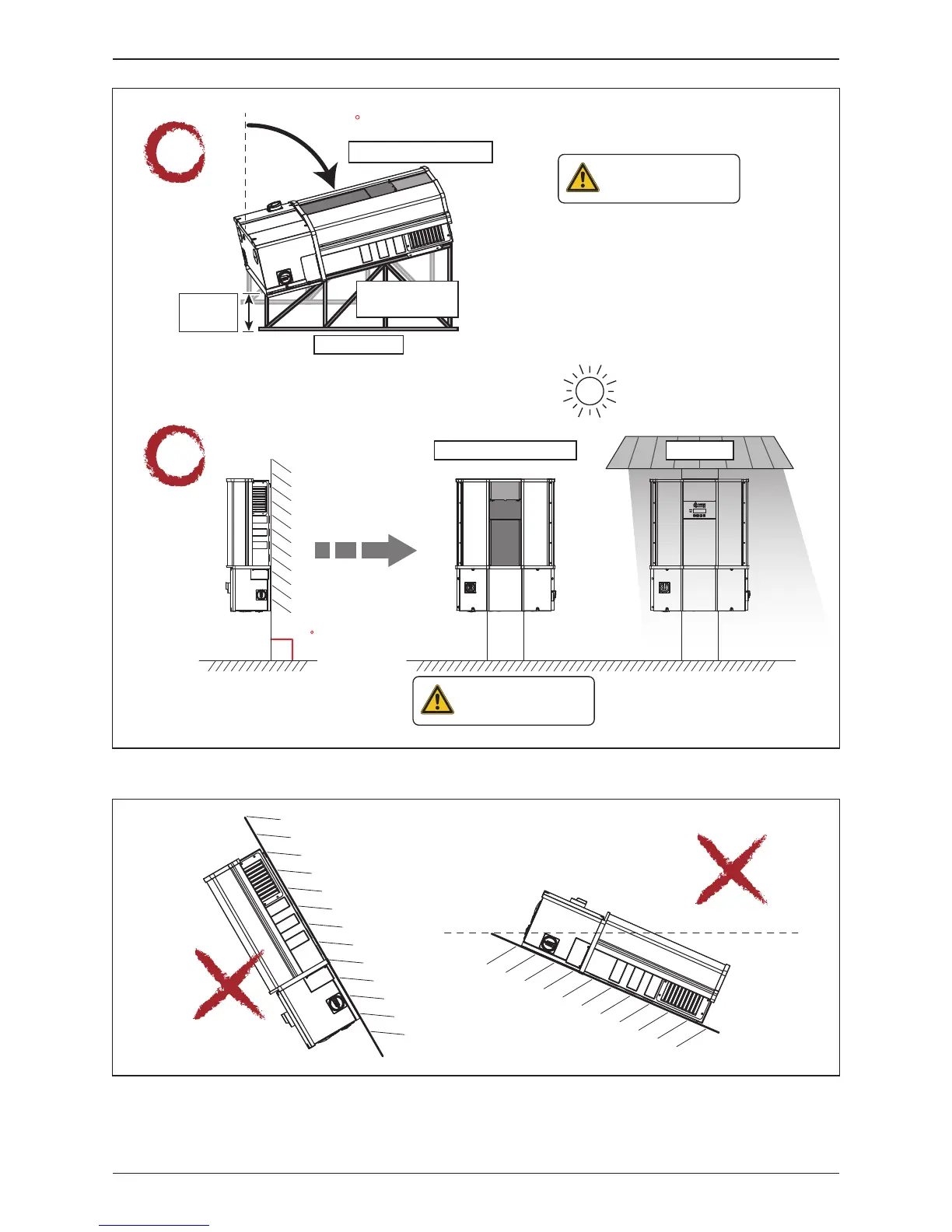

Figure 3-5: Prohibited mounting positions
O: Permitted / X: Prohibited
Figure 3-4: Permitted mounting positions
90
NAME PLATE COVER SHIELD
or
A name plate cover
must be installed.
Max. 90
Make sure the lowest point of the inverter chassis
must be ≥ 12” (30cm) from floor surface and
not susceptible to water immersion.
ROOF DECK
TYP SUPPORT
STRUCTURE
NAME PLATE COVER
≧12”
(≧30cm)
A name plate cover
must be installed.
