Delta M42U

P
Pm
fstart =
f
(
Hz
)
Gradient
f
recovery
f
protection

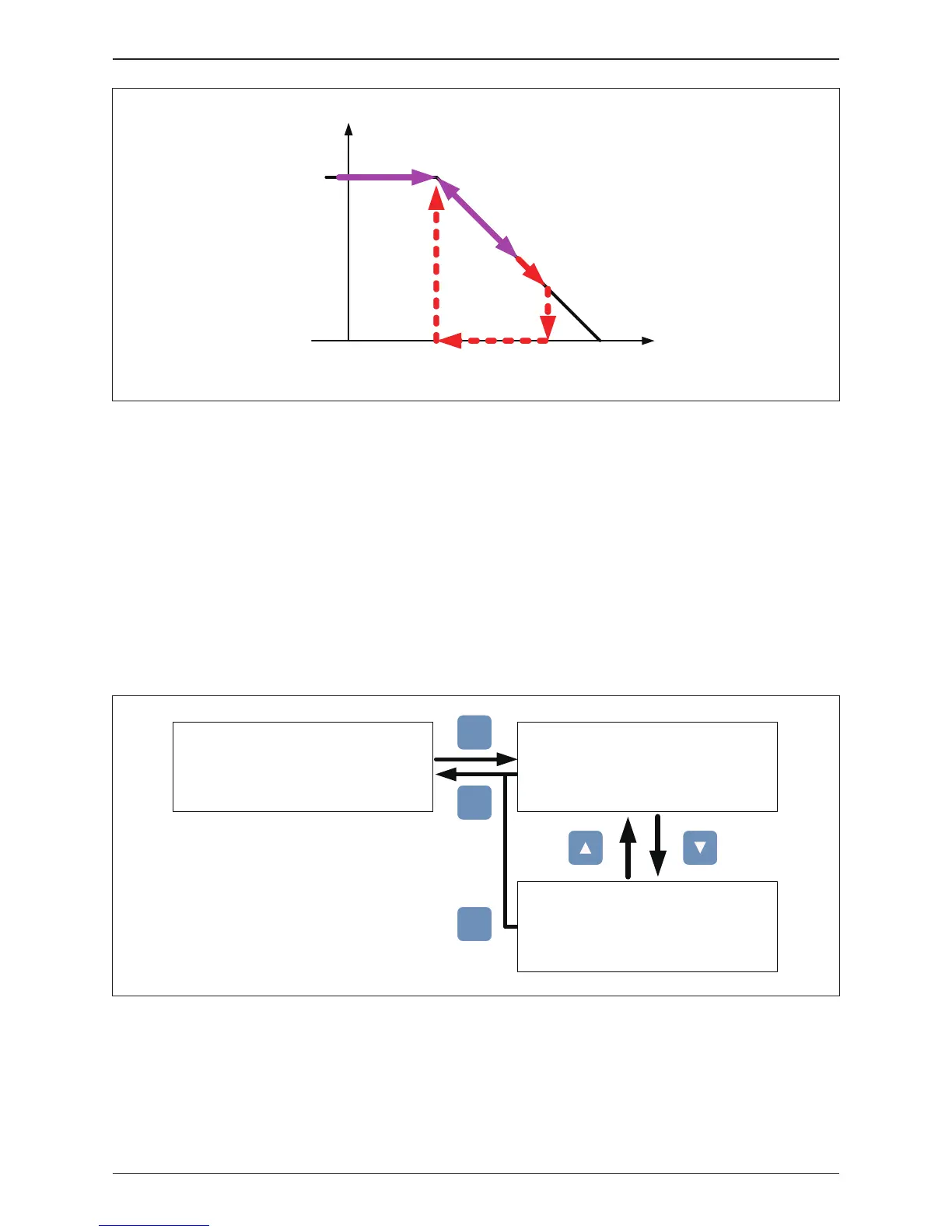

Figure 4-24: Power vs Frequency parameter
Figure 4-25: P(V) screens
When grid voltage rises up to a lock-in voltage(V lock-in) and inverter’s present
output power is greater than lock-in power(P lock-in), inverter will reduce the
output power and keep it at a certain value(P lock-out) until grid voltage drop
back to lock-out voltage(V lock-out) and passing a certain time(T recovery).
Power Limit
Power vs. Frequency
P(V)
►
Mode
P lock-in
P lock-out
V lock-in
►
OFF
20%
5%
528.2V
V lock-out
T recovery
►
519.6V
300s
EXIT
EXIT
ENT
4.3.8.3 P(V)
Commissioning
66
