4 Commissioning
- Be careful of hot surfaces when operating the product!
- Do not perform any task until the unit cools down or appropriate personal
protection gear is worn.
CAUTION: HOT SURFACES, DO NOT TOUCH!

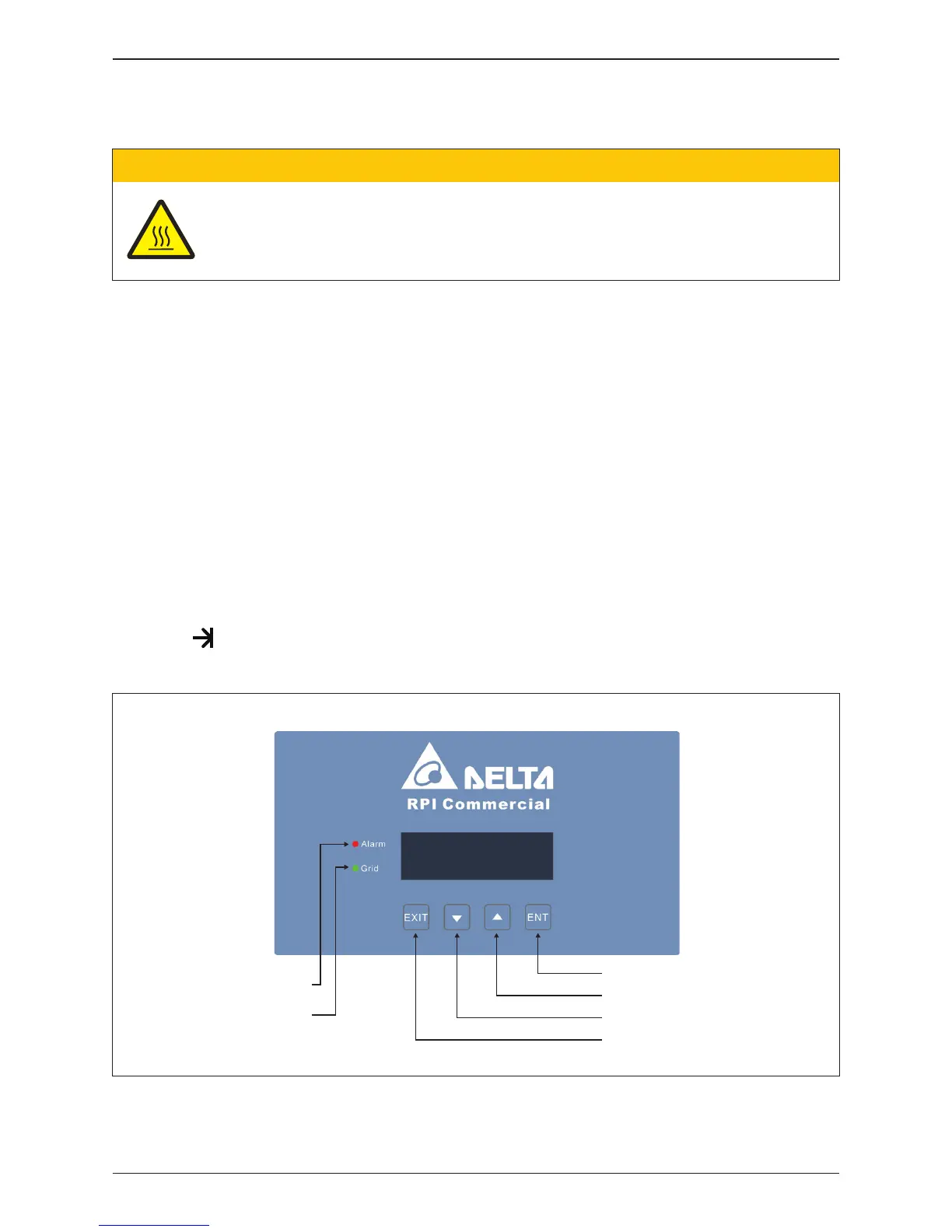

4.1 Display Operation Introduction
M42/36/28U series include a front panel 4x20 character LCD display which
includes four programming keys and 2 LEDs (located on the left-hand side of
the LCD) that allow visual display of the inverter’s data and status as shown in
Figure 4-1. Please refer to Table 4-1 for information as to the information
provided by the LED indicators.
Access to various screens and the adjustment of inverter settings are done using
the LCD screen and the four programming buttons directly below the LCD screen,
See Table 4-2 for programming descriptions of operation.
When adjusting settings, LCD panel will change the display cursor from “►” to
“ ”
To Next Page
