3.4.5 DC side ground bar for 122 models

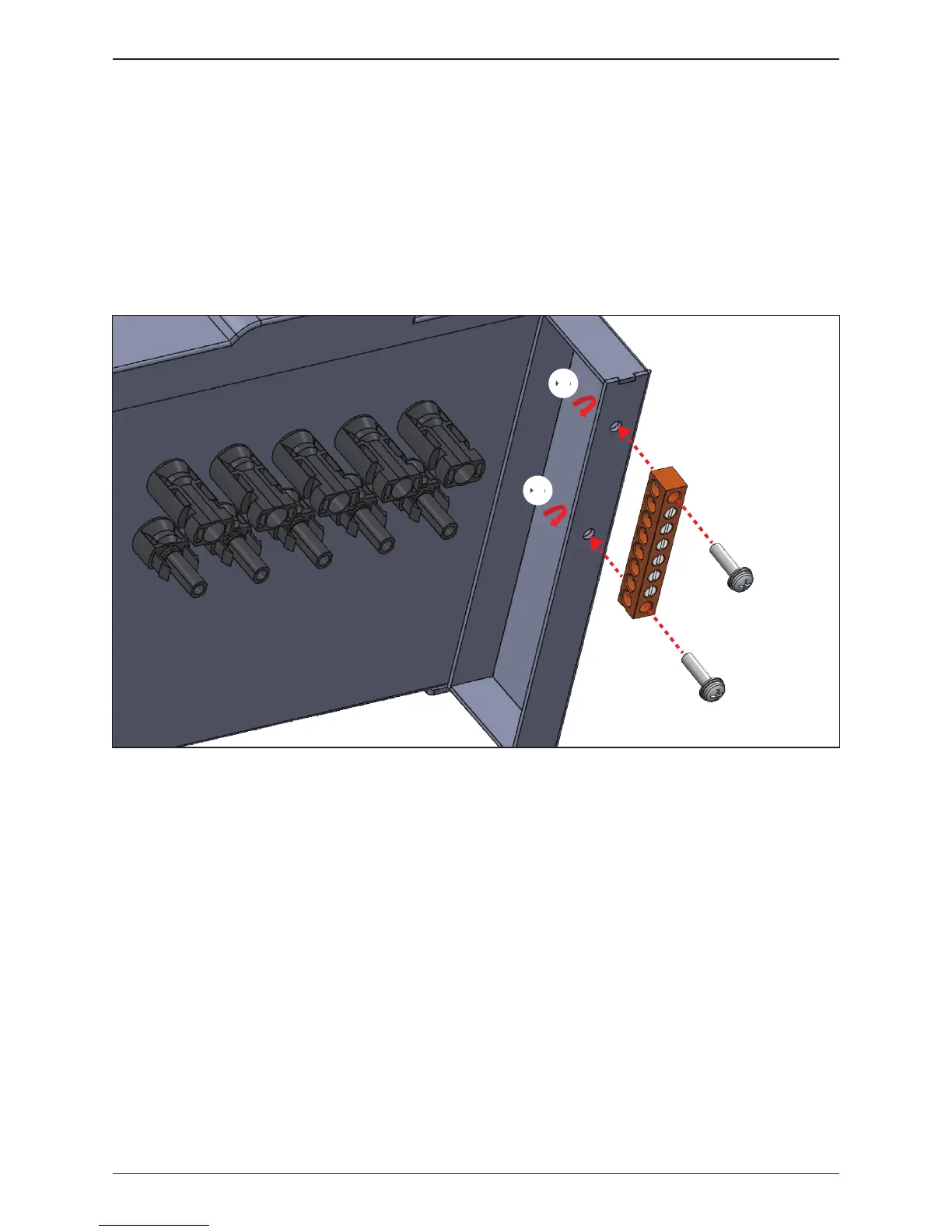

Figure 3-19: Mounting the DC side ground bar to WB

After installing the unit, locate the ground bar and associated screws in accessory

bag. Be sure to orient the ground bar as shown in Figure 3-19. Torque the mounting

screws to: 22 lbf-in (2.5 N.m)

The busbar accommodates grounding conductors in the range of 6AWG~4AWG

Torque grounding conductors to 26 lbf-in (3 N.m)
