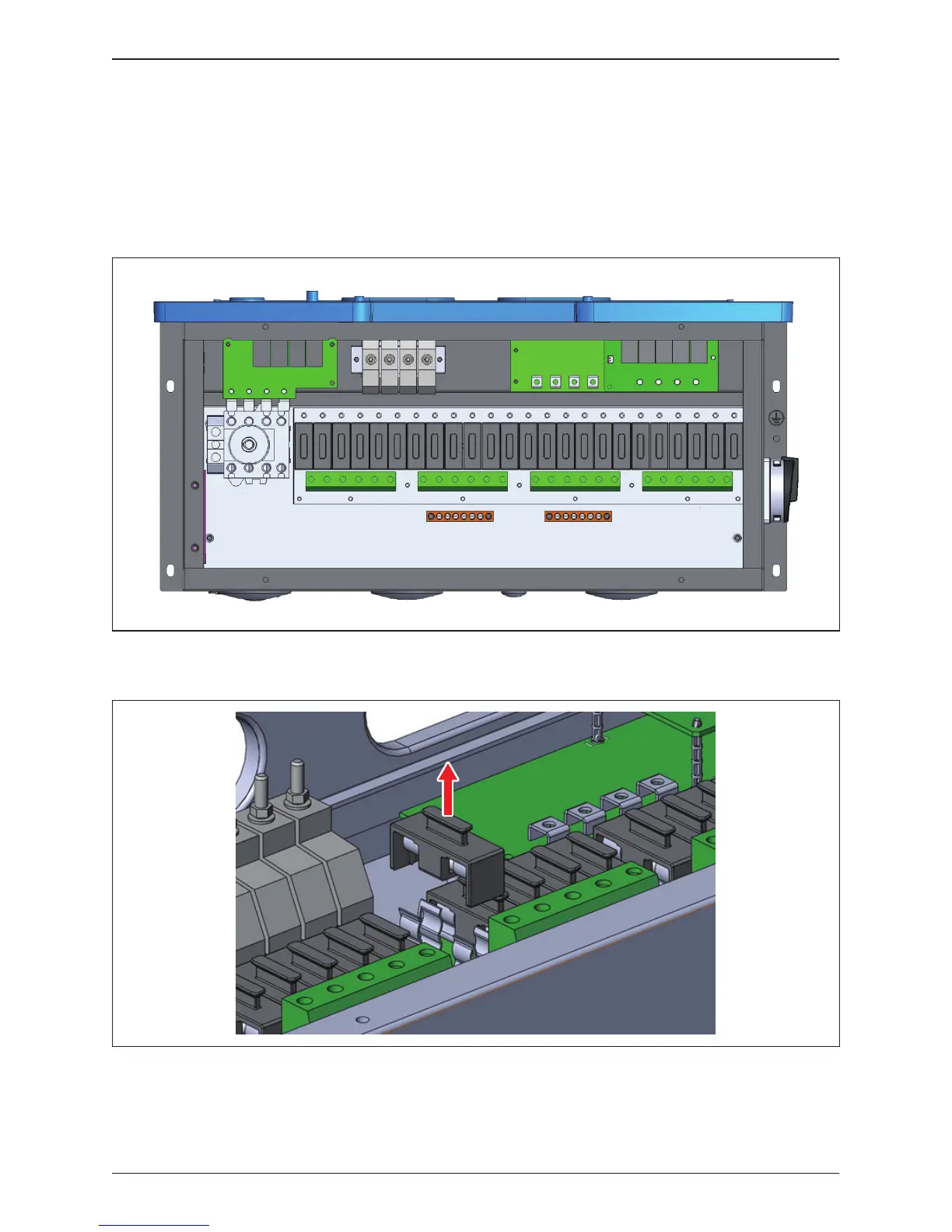

Figure 5-7: Fuse holder locations for 120/122 models
The fuse holders are mounted on two separate PWBs (one/MPPT).
The pull-out fuse holders allow safe removal of fuses which are inserted into
a carrier. Figure 5-7 shows the location of the combiner fuse holders, and
Figure 5-8 provides details to remove a fuse from the 120/122 WB; refer to
Figure 2-5 for additional information.
Figure 5-8: Accessing the individual fuses
77
