3.4.4

Ground bar locations for 120/121 models

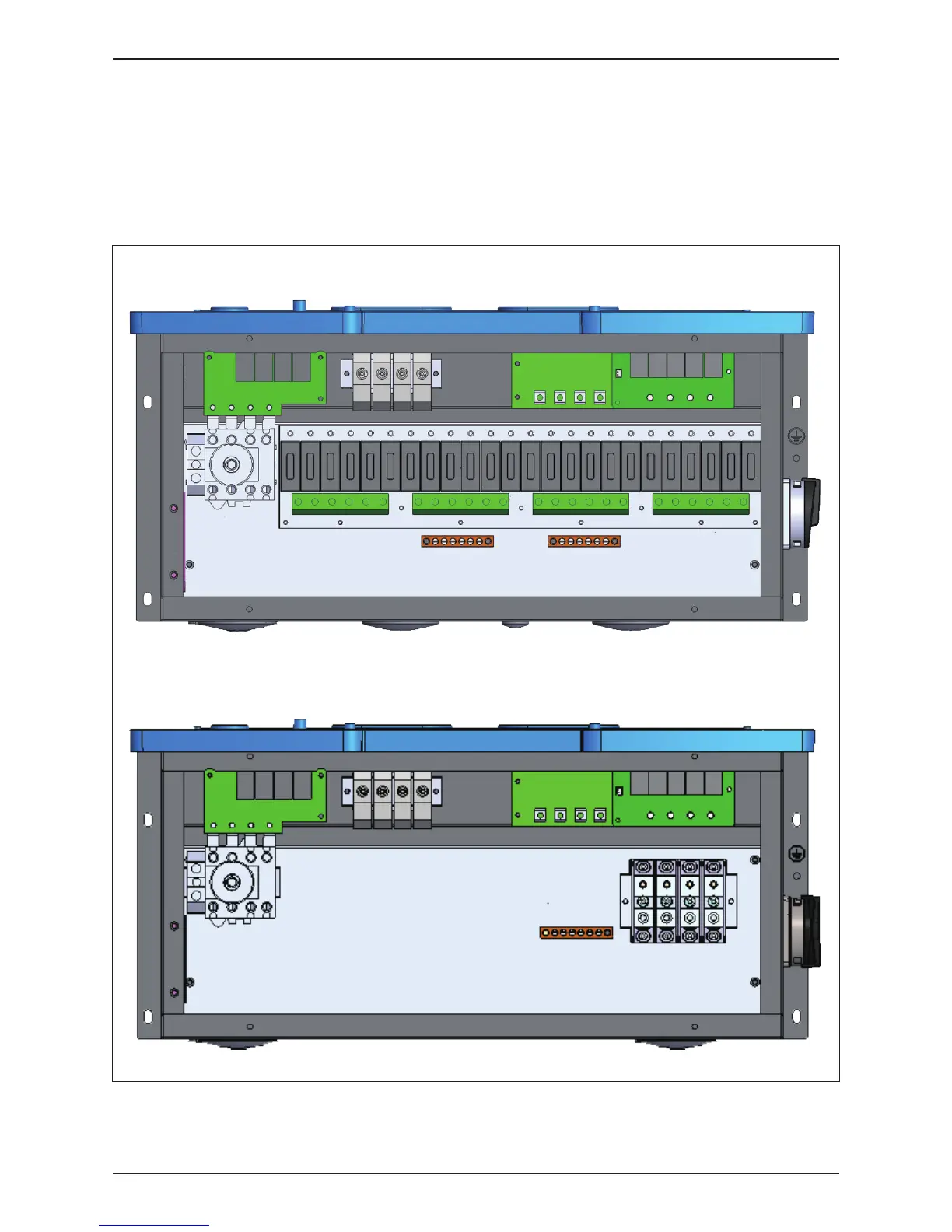

Figure 3-18: Ground bar location for 120/121 models

Figure 3-18 shows the AC/DC grounding bar locations for the 120/121 models.

The wire gauge of the ground cable: 6AWG~4AWG

Torque grounding cables to 26 lbf-in (3 N.m)

-120 Model WB

-121 Model WB
