CAUTION !

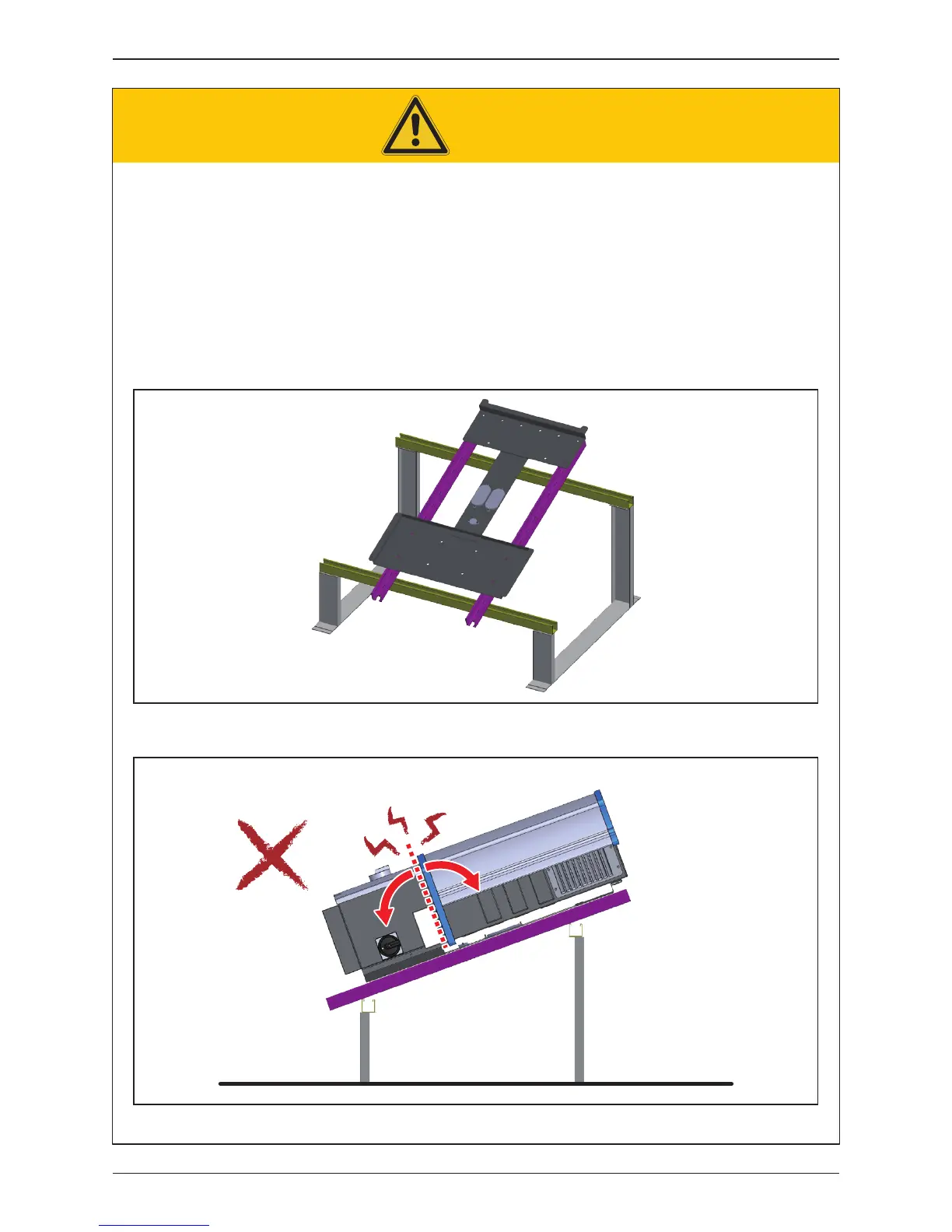

Figure 3-6: Wall mount fixed prior to inverter
Figure 3-7: Stress/torque should be prevented when installing the inverter
1. Install the wall mount bracket to the rack system prior to installing the inverter
Do not allow bending of rhe bracket. See Figure 3-6.
2. When installing the inverter on the rack system, use care not to apply excessive
stress/torque as shown in Figure 3-7. It’s known that for most tilt installations,
a rigid conduit body (e.g./ “LB”) will be applied to the AC side. Installer must
exercise care when installing, as overstressing the chassis may open a path for
water intrusion through the contact surface between the inverter module and the
wiring box.
28
Installation
