Delta VFD-B User Manual

Chapter 5 Parameters|VFD-B Series
Revision July 2008, BE16, SW V4.08 & V5.00 5-103

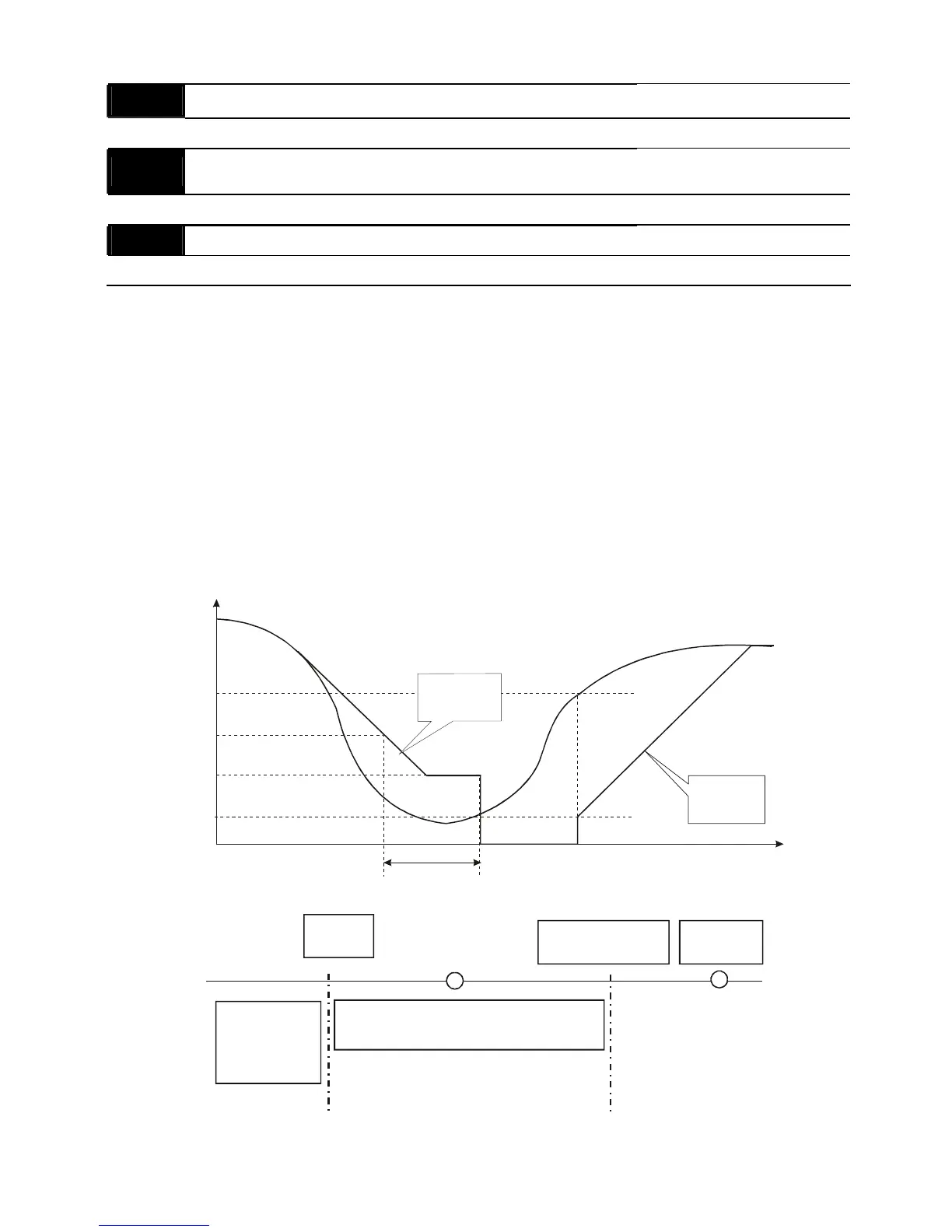

11 - 05 Sleep/Wake Up Detection Time Unit: 0.1
Settings 0.0 to 6550.0 sec Factory Setting: 0.0
11 - 06 Sleep Frequency Unit: 0.01
Settings 0.00 to Fmax Hz Factory Setting: 0.00
11 - 07 Wakeup Frequency Unit: 0.01
Settings 0.00 to Fmax Hz Factory Setting: 0.00
 When the actual output frequency
≤
Pr.11-06 and the time exceeds the setting of Pr.11-05,
the AC motor drive will be in sleep mode.
 When the actual frequency command > Pr.11-07 and the time exceeds the setting of Pr.11-05,
the AC motor drive will restart.
 When the AC motor drive is in sleep mode, frequency command is still calculated by PID.
When frequency reaches wake up frequency, AC motor drive will accelerate from Pr.01-05 min.
frequency by V/f curve.
 The wake up frequency must be higher than sleep frequency.
11-07
11-06
01-08
01-05
11-05
Frequency
The limit of
decel. time
frequency calculated by PID
output
frequency
Time
The limit of
accel. time
Fmin
Fsleep
Fcmd=0
Fout = 0
lower bound
of frequency
Fmin<Fsleep<
lower bound
of frequency

Delta VFD-B Specifications

General

Series	VFD-B
Power Range	0.4kW to 15kW
Control Method	V/F Control, Sensorless Vector Control
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Communication	RS-485
Protection Features	Over-voltage, Over-current, Overheat, Under-voltage, Ground fault, Short circuit
