Delta VFD-B User Manual

Chapter 5 Parameters|VFD-B Series
5-32 Revision July 2008, BE16, SW V4.08 & V5.00
01 - 13 Jog Acceleration Time Unit: 0.1
Settings 0.1 to 3600.0 sec Factory Setting: 1.0
01 - 22 Jog Deceleration Time Unit: 0.1
Settings 0.1 to 3600.0 sec Factory Setting: 1.0
01 - 14 Jog Frequency Unit: 0.1
Settings 0.10 to 400.00Hz Factory Setting: 1.0
 Both external terminal JOG and key “JOG” on the keypad can be used. When the Jog
command is “ON”, the AC motor drive will accelerate from Minimum Output Frequency (Pr.01-
05) to Jog Frequency (Pr.01-14). When the Jog command is “OFF”, the AC motor drive will
decelerate from Jog Frequency to zero. The used Accel/Decel time is set by the Jog
Accel/Decel time (Pr.01-13, Pr.01-22).
 Before using the JOG command, the drive must be stopped first. And during Jog operation,
other operation commands cannot be accepted, except command via the FORWARD,
REVERSE and STOP keys on the digital keypad.

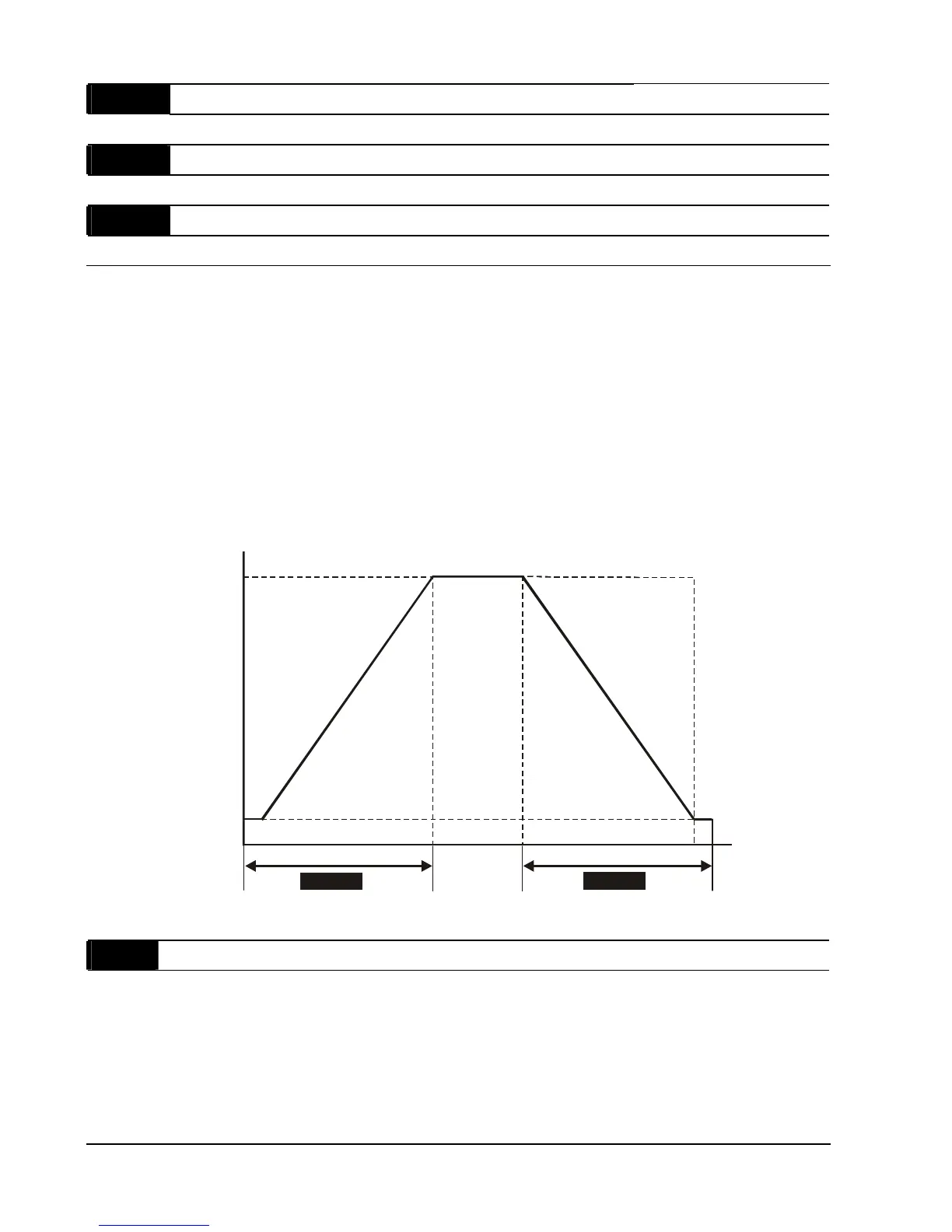

01-13
Frequency
Time
JOG Accel. Time
JOG Decel. Time
The definition of JOG Accel./Decel. Time
01-14
JOG
Frequency
Min. output
frequency
01-05
0 Hz
01-22
01 -15 Auto-Acceleration / Deceleration
Factory Setting: 00
Settings 00 Linear acceleration / deceleration
01 Auto acceleration, linear Deceleration.
02 Linear acceleration, auto Deceleration.
03 Auto acceleration / deceleration (set by load)
04 Auto acceleration / deceleration (set by Accel/Decel Time setting)

Delta VFD-B Specifications

General

Series	VFD-B
Power Range	0.4kW to 15kW
Control Method	V/F Control, Sensorless Vector Control
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Communication	RS-485
Protection Features	Over-voltage, Over-current, Overheat, Under-voltage, Ground fault, Short circuit
