5. When installing multiple AC motor drives in the same cabinet, they should be adjacent in a row
with enough space in-between. When installing one AC motor drive below another one, use a
metal separation barrier between the AC motor drives to prevent mutual heating.
6. Prevent fiber particles, scraps of paper, saw dust, metal particles, etc. from adhering to the
heatsink.

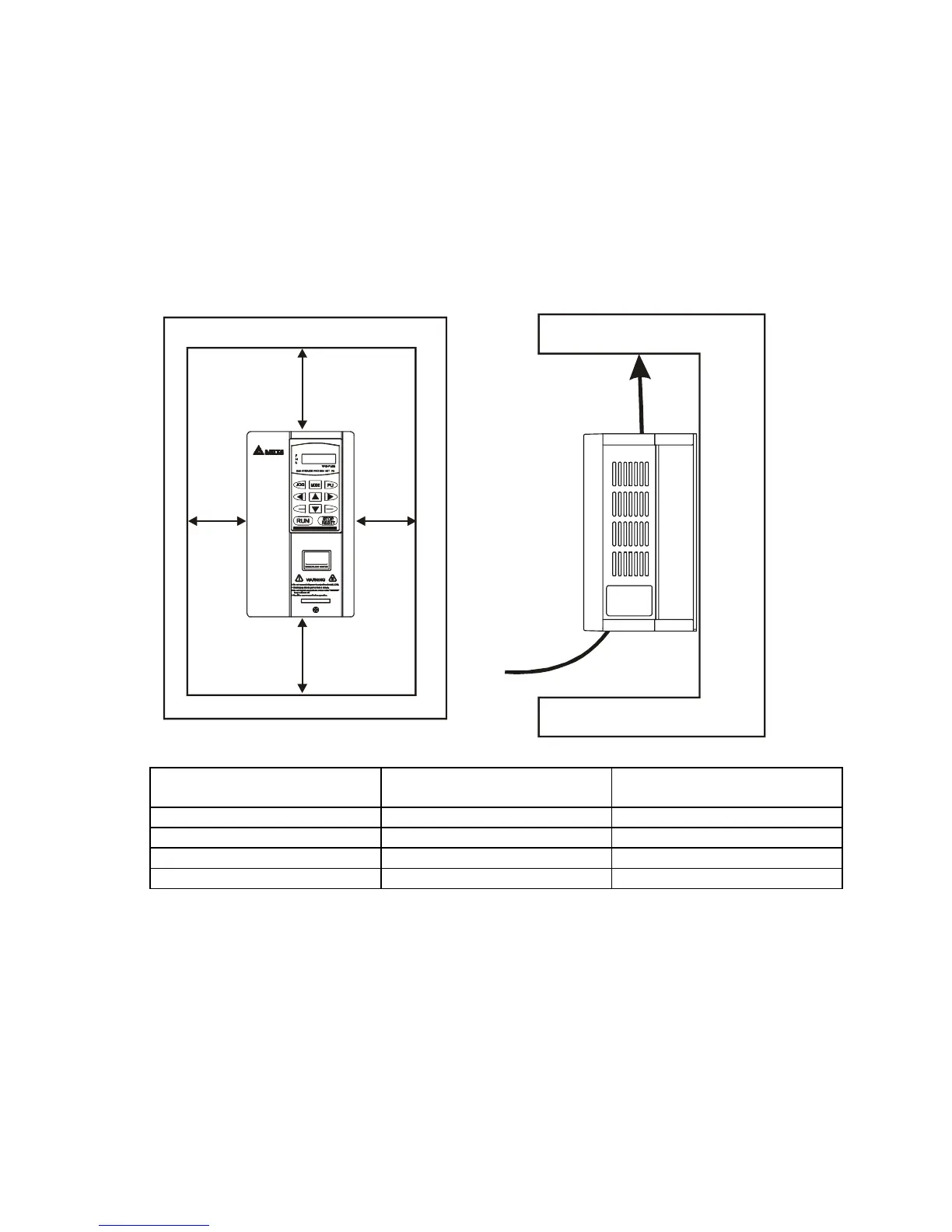

Minimum Mounting Clearances
H
DATA
PRO G
REV
FWD
Air Flow
H
W
W
HP
W
mm (inch)
H
mm (inch)
1-5HP 50 (2) 150 (6)
7.5-20HP 75 (3) 175 (7)
25-75HP 75 (3) 200 (8)
100HP and above 75 (3) 250 (10)

Delta VFD-B Specifications

General

Series	VFD-B
Power Range	0.4kW to 15kW
Control Method	V/F Control, Sensorless Vector Control
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Communication	RS-485
Protection Features	Over-voltage, Over-current, Overheat, Under-voltage, Ground fault, Short circuit
