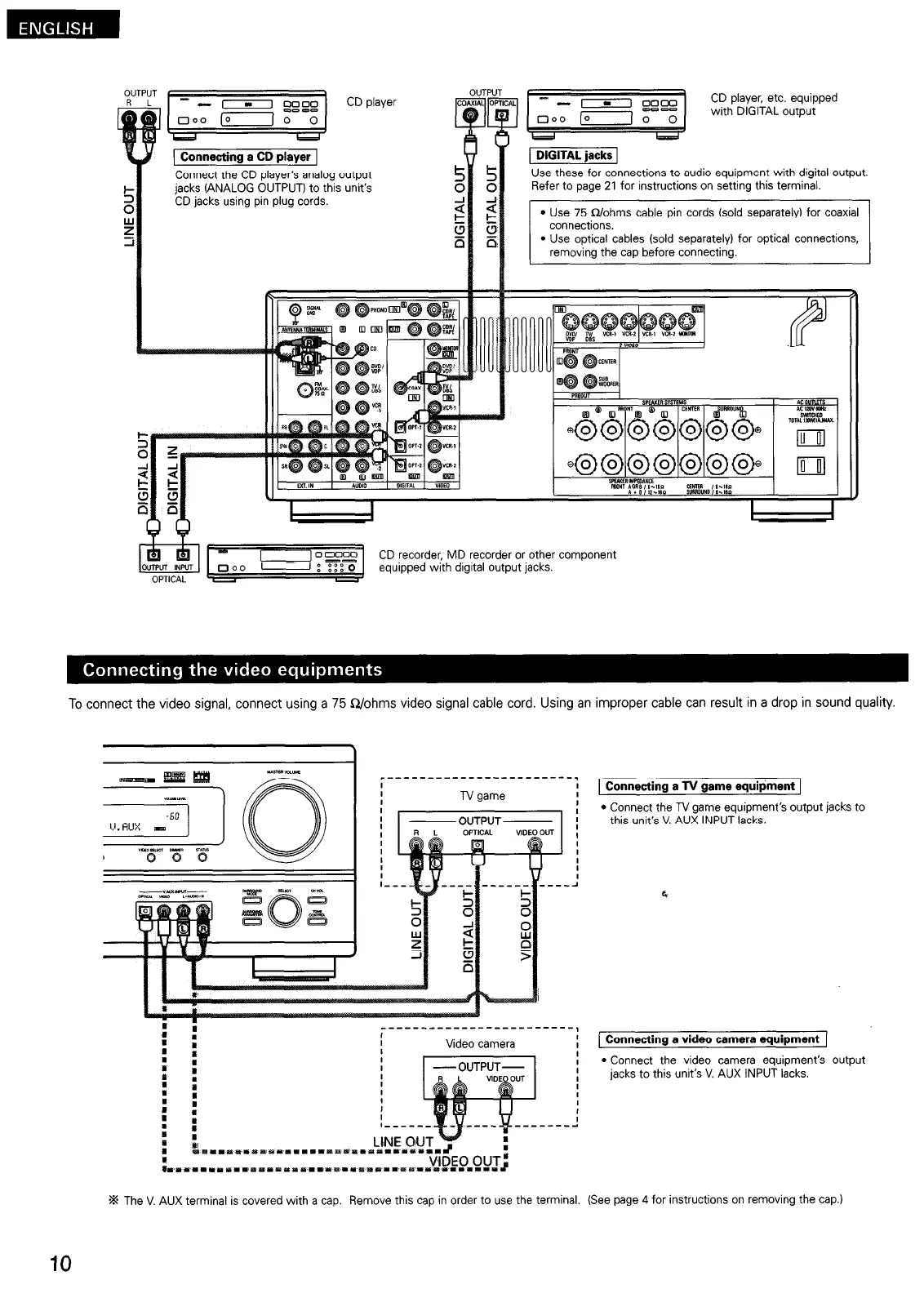

CD player, etc. equipped
with DIGITAL output
Use these for connections to audio equipment with digital output.
PUT) to this unit’s
Refer to page 21 for instructions on setting this terminal.
CD jacks using pin plug cords.
l
Use 75 n/ohms cable pin cords (sold separately) for coaxial
connections.
l
Use optical cables (sold separately) for optical connections,
removing the cap before connecting.
OPTICAL
CD recorder, MD recorder or other component
equipped with digital output jacks.
To connect the video signal, connect using a 75 Q/ohms video signal cable cord. Using an improper cable can result in a drop in sound quality
-----------1
I
Video camera
I
f0 OUT’
,...,,a
1 Connecting a TV game equipment 1
l
Connect the TV game equipment’s output jacks to
this unit’s V. AUX INPUT lacks.
1 Connecting a video camera equipment 1
l
Connect the video camera equipment’s output
jacks to this unit’s V. AUX INPUT lacks.
3% The V. AUX terminal is covered with a cap.
Remove this cap in order to use the terminal. (See page 4 for instructions on removing the cap.)
10
To Next Page
