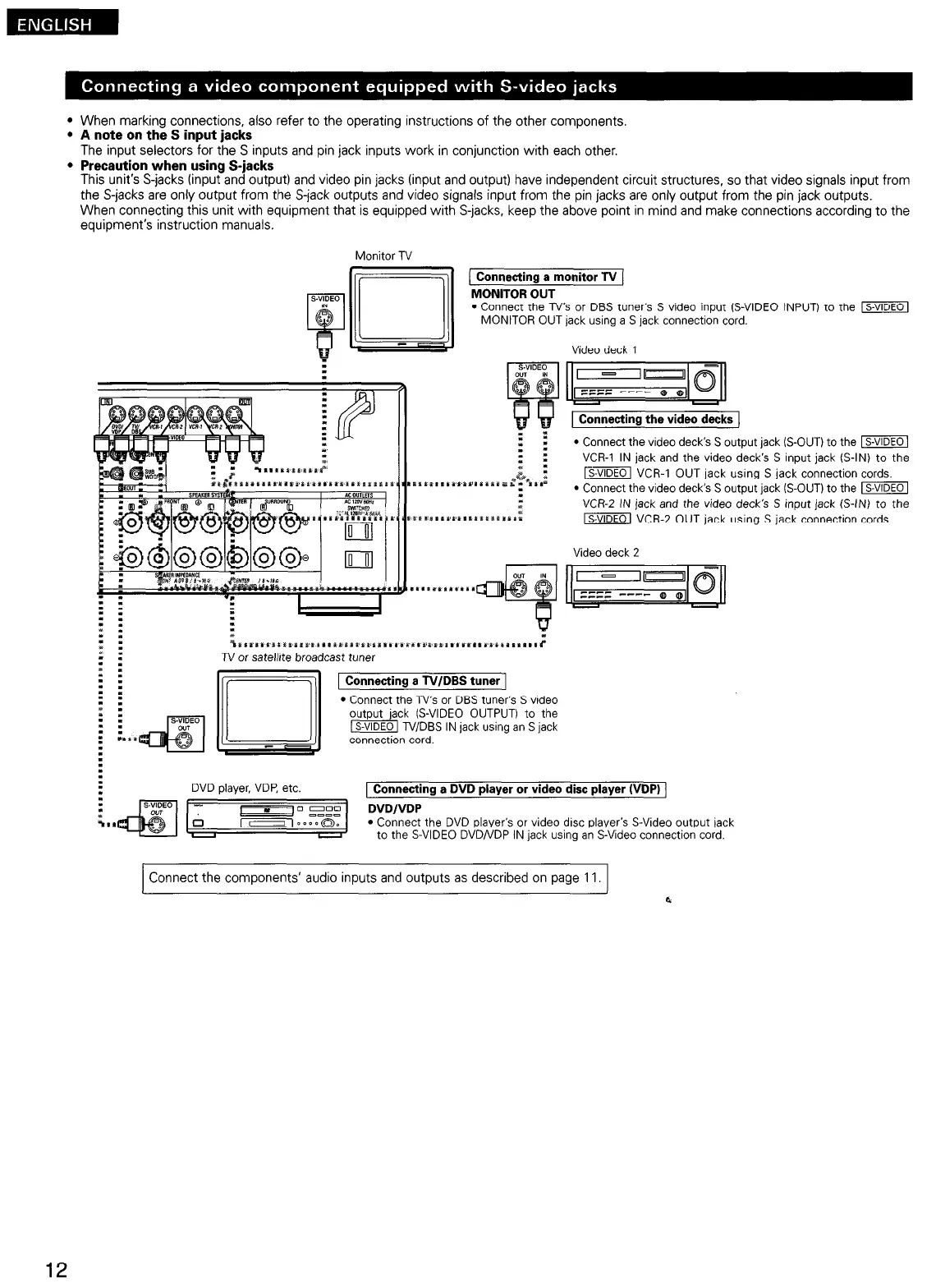

l When marking connections, also refer to the operating instructions of the other components.
l
A note on the S input jacks
The input selectors for the S inputs and pin jack inputs work in conjunction with each other.
l
Precaution when using S-jacks
This unit’s S-jacks (input and output) and video pin jacks (input and output) have independent circuit structures, so that video signals input from
the S-jacks are only output from the S-jack outputs and video signals input from the pin jacks are only output from the pin jack outputs.
When connecting this unit with equipment that is equipped with S-jacks, keep the above point in mind and make connections according to the
equipment’s instruction manuals.
Monitor TV
( Connecting a monitor TV (
MONITOR OUT
l
Connect the TV’s or DBS tuner’s S video input (S-VIDEO INPUT) to the m
MONITOR OUT jack using a S jack connection cord.
Video deck 1
1 Connecting the video decks 1
l
Connect the video deck’s S output jack (S-OUT) to the -1
VCR-1 IN jack and the video deck’s S input jack (S-IN) to the
pm VCR-1 OUT jack using S jack connection cords.
l
Connect the video deck’s S output jack (S-OUT) to the m
VCR-2 IN jack and the video deck’s S input jack (S-IN) to the
m VCR-2 OUT jack using S jack connection cords.
Video deck 2
:
;
:
:
:
:
:
: .
s
:
:
:
: V.IIP
:
:
~
1 Connecting a TV/DBS tuner
l
Connect the TV’s or DBS tuner’s S video
output jack WIDE0 OUTPUT) to the
czAnT$):S IN jack using an S jack
DVD player, VDP. etc.
1 Connecting a DVD player or video disc player WDP) 1
DVDIVDP
I~IO~~~~~
l
Connect the DVD player’s or video disc player’s S-Video output jack
to the S-VIDEO DVD/VDP IN jack using an S-Video connection cord.
Connect the components’ audio inputs and outputs as described on page 11.
t;
12
To Next Page
