Denon AVR-1802 Operating Instructions

0

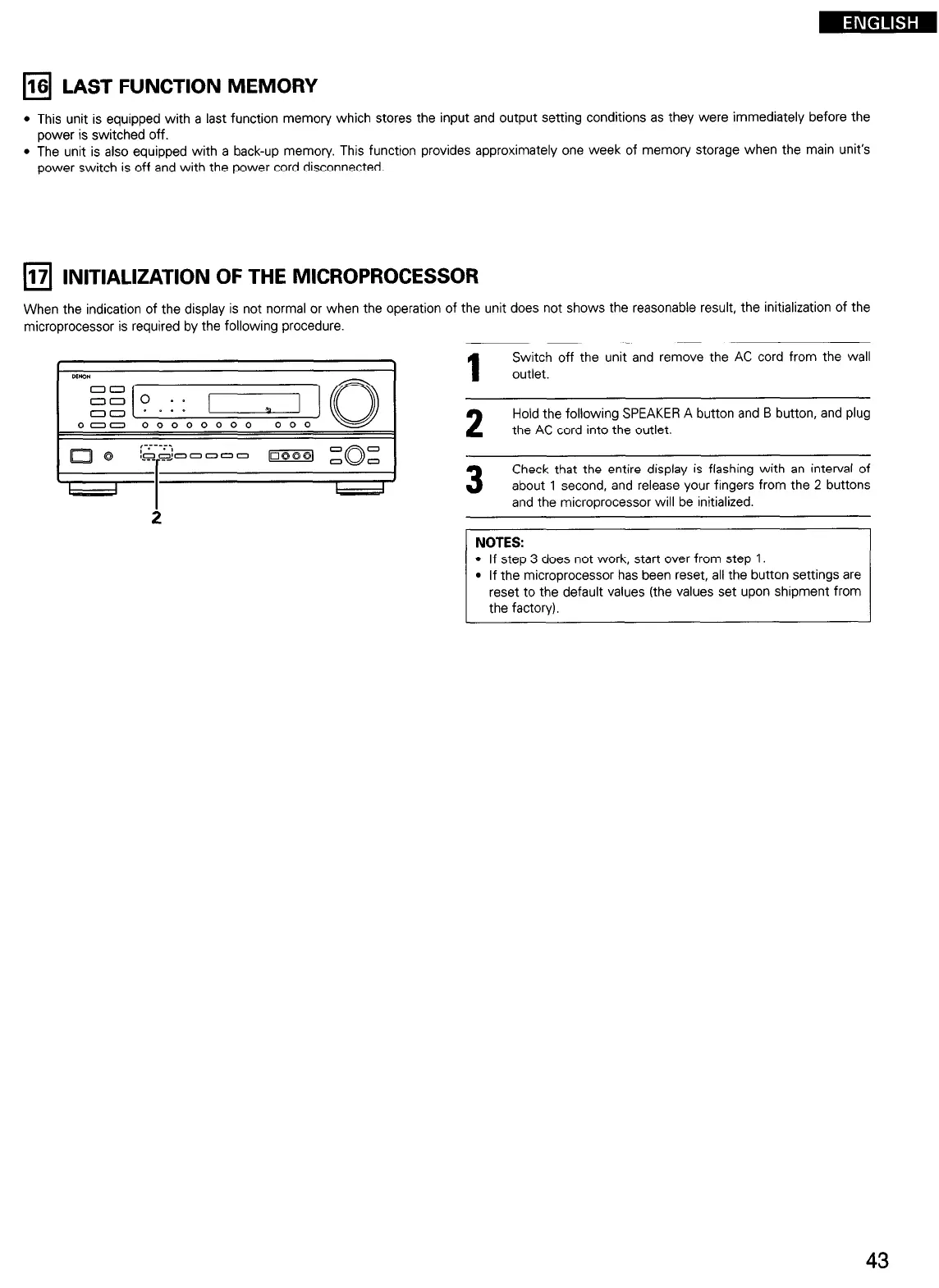

16 LAST FUNCTION MEMORY
l This unit is equipped with a last function memory which stores the input and output setting conditions as they were immediately before the
power is switched off.
l The unit is also equipped with a back-up memory, This function provides approximately one week of memory storage when the main unit’s
power switch is off and with the power cord disconnected.
0
17 INITIALIZATION OF THE MICROPROCESSOR
When the indication of the display is not normal or when the operation of the unit does not shows the reasonable result, the initialization of the
microprocessor is required by the following procedure.
Switch off the unit and remove the AC cord from the wall
Hold the following SPEAKER A button and B button, and plug
the AC cord into the outlet.
IrIg
loOOOi ZQ:
1
I
I l
3
Check that the entire display is flashing with an interval of
about 1 second, and release your fingers from the 2 buttons
and the microprocessor will be initialized.
2
-
NOTES:
l If step 3 does not work, start over from step I.
l If the microprocessor has been reset, all the button settings are
reset to the default values (the values set upon shipment from
the factory)
43

Denon AVR-1802 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.7 %
Power output per channel (1KHz@6 Ohm)	115 W
Power output per channel (20-20KHz@8 Ohm)	80 W
AC input voltage	120 V
AC input frequency	60 Hz
Equalizer	Yes
Audio decoders	DTS, Dolby Digital, Dolby Pro Logic II
3D	No
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
HDMI in	0
Composite video in	5
S-Video inputs quantity	4
Digital audio coaxial in	1
Digital audio optical in	3

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	171 mm
Weight	10900 g
