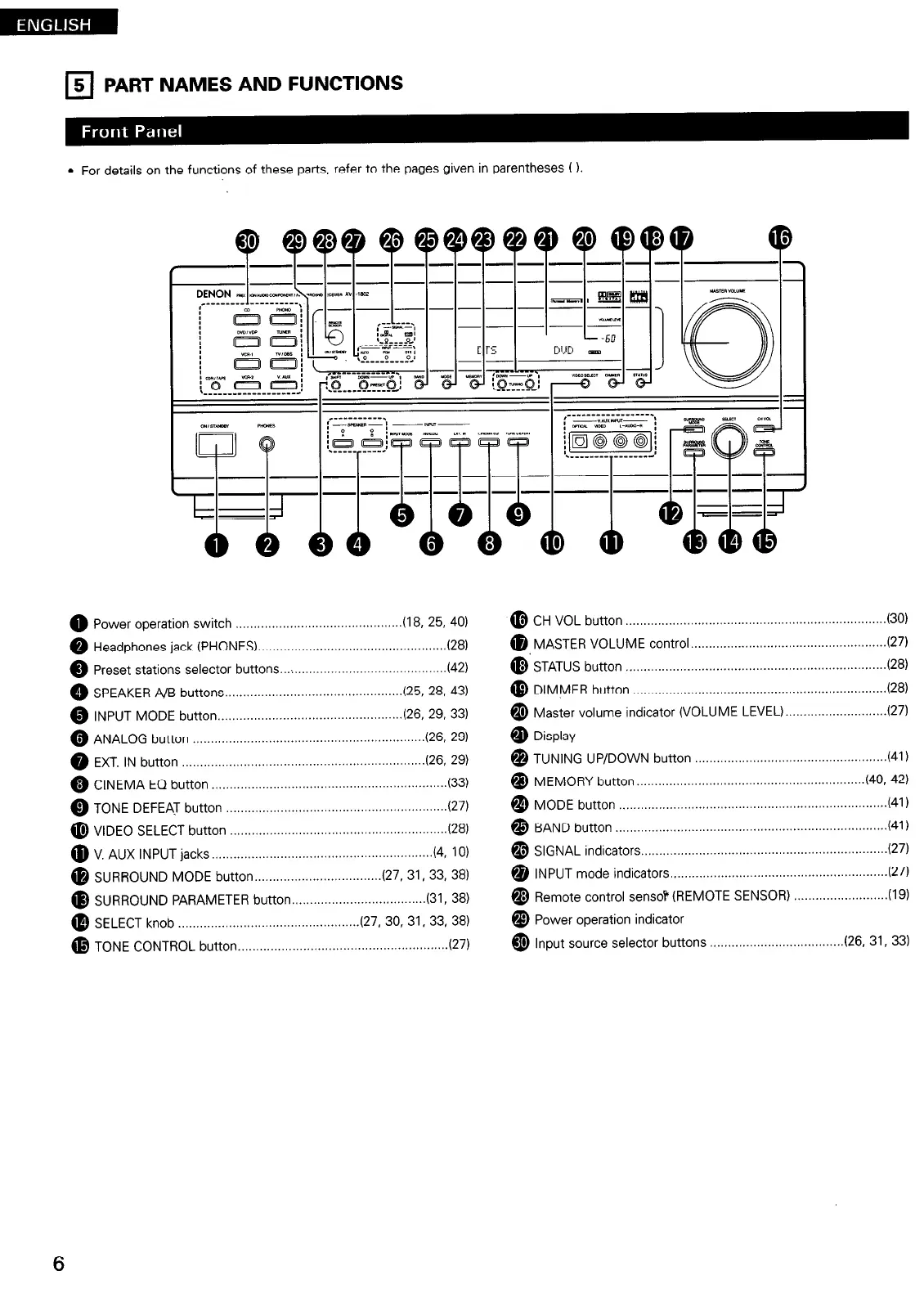

5 PART NAMES AND FUNCTIONS
l For details on the functions of these parts, refer to the pages given in parentheses ( )
0 Power operation switch
(18, 25, 40)
@ CH VOL button ........................................................................ (30)
..............................................
@ Headphones jack (PHONES)
(28)
@ MASTER VOLUME control
......................................................
(27)
....................................................
@ Preset stations selector buttons
............................................... (42)
@’ STATUS button ........................................................................ (28)
@ SPEAKER A/B buttons
(25, 28, 43)
@ DIMMER button ...................................................................... (28)
.................................................
@ INPUT MODE button
................................................... (26, 29, 33)
@ Master volume indicator (VOLUME LEVEL).
........................... (27)
@ ANALOG button ................................................................
(26, 29)
0) Display
@ EXT. IN button
(26, 29)
@ TUNING UP/DOWN button ..................................................... (41)
...................................................................
0 CINEMA ECI button
.................................................................
(33)
@ MEMORY button ...............................................................
(40, 42)
@ TONE DEFEAT button
.............................................................
(27)
@ MODE button .......................................................................... (41)
@ VIDEO SELECT button
............................................................
(28)
@ BAND button ........................................................................... (41)
@ V. AUX INPUT jacks
.............................................................
(4, IO)
@ SIGNAL indicators
....................................................................
(27)
@ SURROUND MODE button
................................... (27, 31, 33, 38)
@ INPUT mode indicators ............................................................ (27)
@ SURROUND PARAMETER button
(31, 38)
@ Remote control sensor (REMOTE SENSOR) .......................... (19)
.....................................
@ SELECT knob
..................................................
(27, 30, 31, 33, 38)
@ Power operation indicator
@ TONE CONTROL button
..........................................................
(27)
@ Input source selector buttons ..................................... (26, 31, 33)
6

Denon AVR-1802 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.7 %
Power output per channel (1KHz@6 Ohm)	115 W
Power output per channel (20-20KHz@8 Ohm)	80 W
AC input voltage	120 V
AC input frequency	60 Hz
Equalizer	Yes
Audio decoders	DTS, Dolby Digital, Dolby Pro Logic II
3D	No
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
HDMI in	0
Composite video in	5
S-Video inputs quantity	4
Digital audio coaxial in	1
Digital audio optical in	3

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	171 mm
Weight	10900 g
