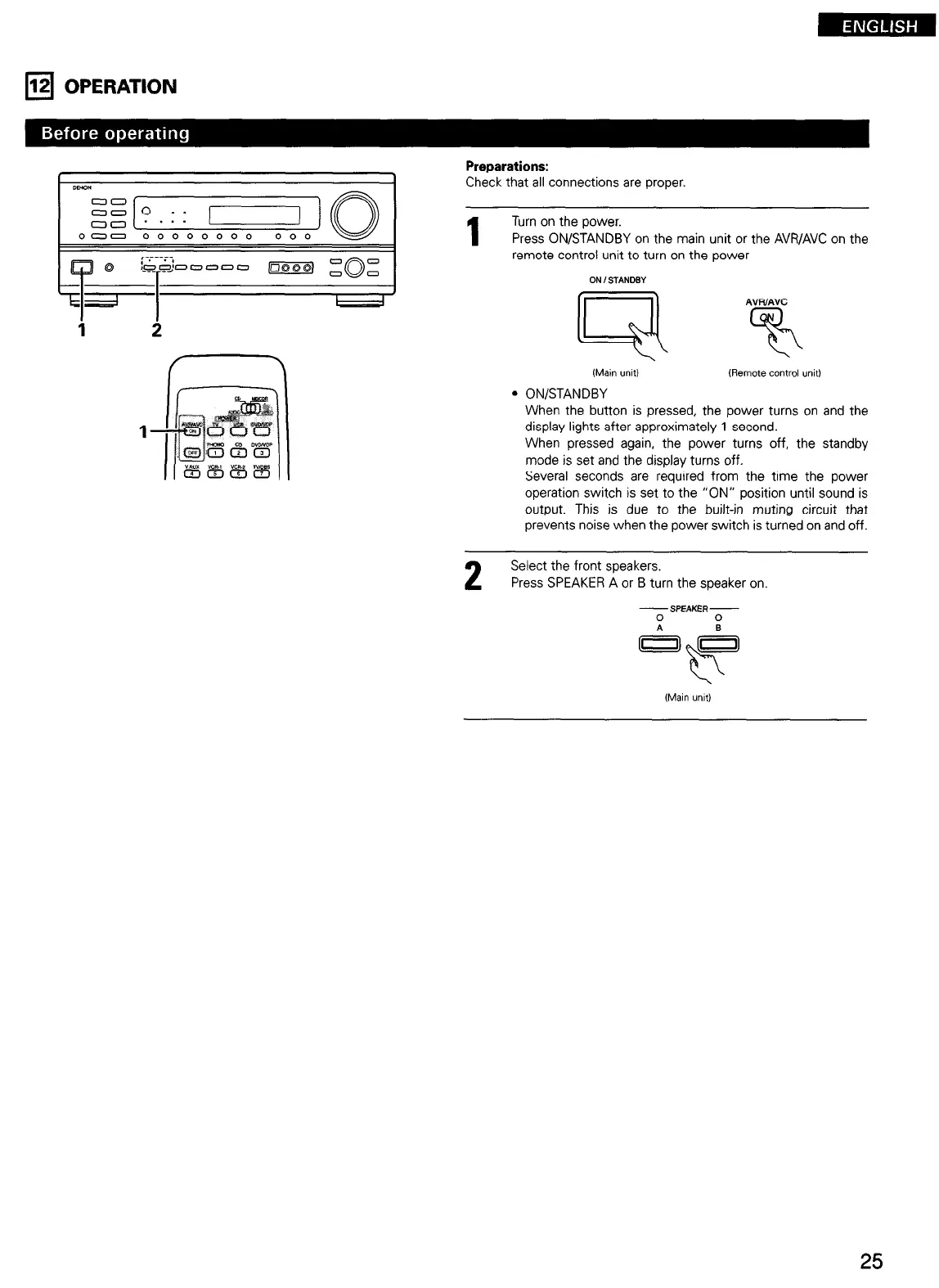

12 OPERATION
Preparations:
Check that all connections are proper.
1
Turn on the power.
Press ON/STANDBY on the main unit or the AVR/AVC on the
remote control unit to turn on the power
(Main unit)
(Remote control unit)
l ON/STANDBY
When the button is pressed, the power turns on and the
display lights after approximately 1 second.
When pressed again, the power turns off, the standby
mode is set and the display turns off.
Several seconds are required from the time the power
operation switch is set to the “ON” position until sound is
output. This is due to the built-in muting circuit that
prevents noise when the power switch is turned on and off.
2
Select the front speakers.
Press SPEAKER A or B turn the speaker on.
-SPEAKER -
(Main unit)
25

Denon AVR-1802 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.7 %
Power output per channel (1KHz@6 Ohm)	115 W
Power output per channel (20-20KHz@8 Ohm)	80 W
AC input voltage	120 V
AC input frequency	60 Hz
Equalizer	Yes
Audio decoders	DTS, Dolby Digital, Dolby Pro Logic II
3D	No
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
HDMI in	0
Composite video in	5
S-Video inputs quantity	4
Digital audio coaxial in	1
Digital audio optical in	3

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	171 mm
Weight	10900 g
