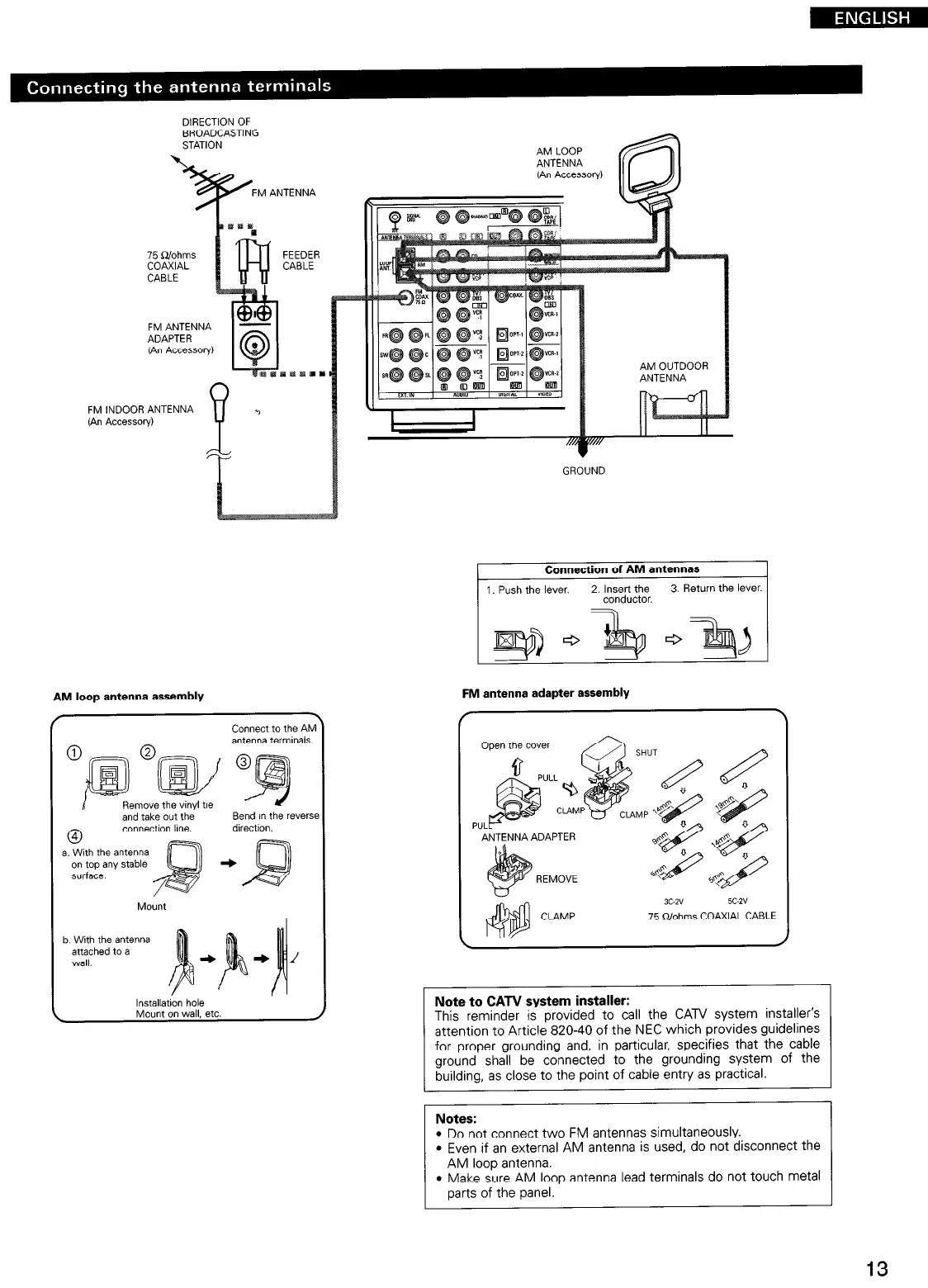

Denon AVR-1802 Operating Instructions

DIRECTION OF
BROADCASTING
STATION
M ANTENNA
75 n/ohms
COAXIAL
FEEDER
CABLE
CABLE
FM ANTENNA
ADAPTER
FM INDOOR ANTENNA
?
(An Accessory)
AM LOOP
ANTENNA
AM loop antenna assembly
Connect to the AM
sntanns tcsmindc I
and take out the
0
connection line.
a. With the antenna
on top any stable
surface
b. With the antenna
attached to a
wall.
Insa& hole
Mount on wall, etc.
AM OUTDOOR
GROUND
Connection of AM antennas
1, Push the lever.
2. Insert the
3. Return the lever.
conductor.
FM antenna adapter assembly
f
Open the cover
SC-Z”
SC-2”
75 R/ohms COAXIAL CABLE
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC which provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
Notes:
l Do not connect two FM antennas simultaneously.
l Even if an external AM antenna is used, do not disconnect the
AM loop antenna.
l Make sure AM loop antenna lead terminals do not touch metal
parts of the panel.
13

Denon AVR-1802 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.7 %
Power output per channel (1KHz@6 Ohm)	115 W
Power output per channel (20-20KHz@8 Ohm)	80 W
AC input voltage	120 V
AC input frequency	60 Hz
Equalizer	Yes
Audio decoders	DTS, Dolby Digital, Dolby Pro Logic II
3D	No
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
HDMI in	0
Composite video in	5
S-Video inputs quantity	4
Digital audio coaxial in	1
Digital audio optical in	3

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	171 mm
Weight	10900 g
