GAVIN-8C Instruction Manual

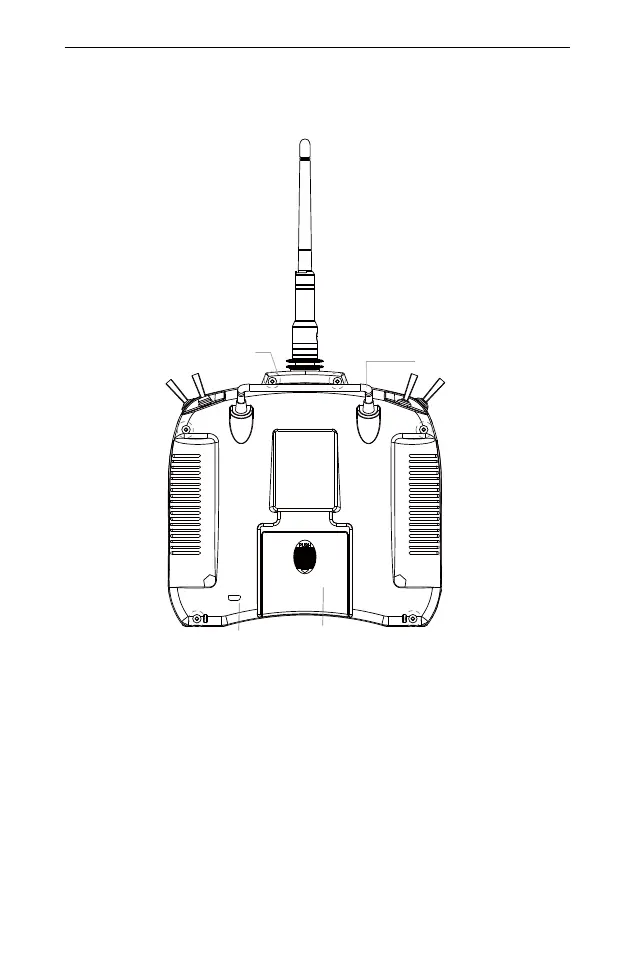

Screws to secure the rear cover
Carrying Handle
(there are six screws)
Battery cover
USB Interface
NOTE: When the Stick Mode is set to MODE 1, the positions of sticks and
digital trims are shown in the figure. The positions are different depending on
the stick mode. For details, please refer to Stick Mode [Stick Mode] (Page 54).
- 7 -
Antenna: The strong radio wave radiate from the side of the transmitter
antenna. Do not point the antenna directly toward the aircraft during flight.
Carrying Handle: The carrying handle is designed for easily carrying and
placing the transmitter.
Power Switch: Push the switch upward to turn on the transmitter, push
downward to turn off.
Neck Strap Attachment: For a long flight you can choose to use a neck strap
for easy handing. The neck strap attachment is on the neutral position, in
order to get the best balance for transmitter.
