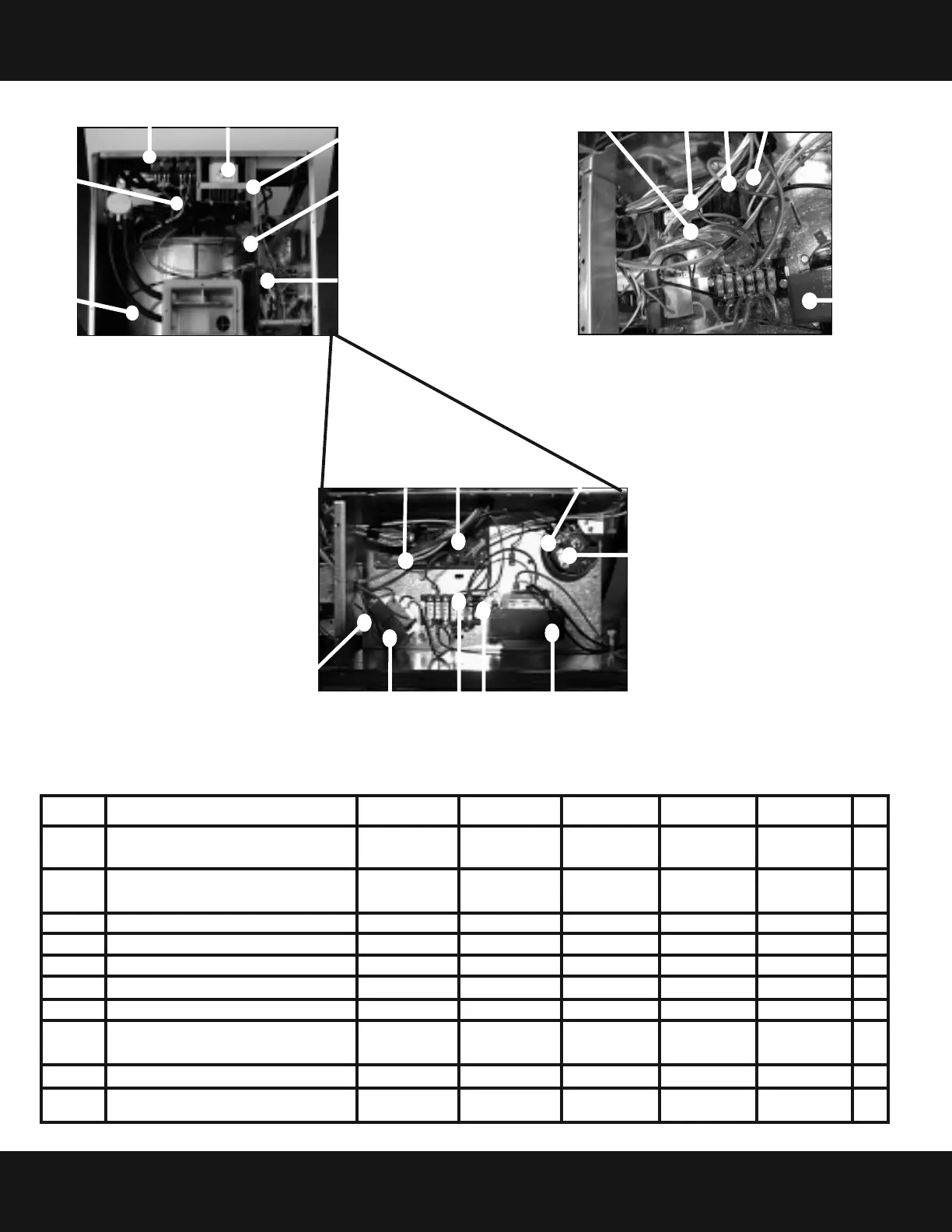

Dexter Laundry A Series Service Procedures And Parts Data

103
15
38
7
35
47
26, 27 & 28
30 & 31
15
5
18
19
32
37
20
Key Description T-300 T-400 T-600 T-900 T-1200 QTY
1 Trough Assy,Controls 120 Volt 9857-149-001 1
( all parts below #2-#43 & trough)
1 Trough Assy,Controls 208-240 volt 9857-150-002 9857-151-002 9857-152-002 9857-154-002 9857-160-002 1
(all parts below #2-#43 & trough)
2 Trough only 9839-015-001 9839-015-001 9839-015-001 9839-015-001 9839-015-001 1
3 Screw, Trough Sides 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
4 Lockwasher Exttooth #10 8641-582-006 8641-582-006 8641-582-006 8641-582-006 8641-582-006 4
5 Angle Support Trough 9003-270-001 9003-270-001 9003-271-001 9003-271-001 1
6 Screw, Trough Bracket 9545-008-026 9545-008-026 9545-008-026 9545-008-026 3
7 Transformer, Control
(Opr. Voltage to 115 volts) 8711-004-001 8711-004-001 8711-004-001 8711-004-001 8711-004-001 1
Not used on 120v 18 pound models
8 Screw, Mtg #8Bx1/4” 9545-008-001 9545-008-001 9545-008-001 9545-045-001 9545-045-001 2
10 Lockwasher 8641-582-006 8641-582-006 8641-582-006 8641-582-006 8641-582-006 2
Electrical Components - Top Compartment
53
1
7
19
15
18
16 & 17
39
&
40
38
& 34
