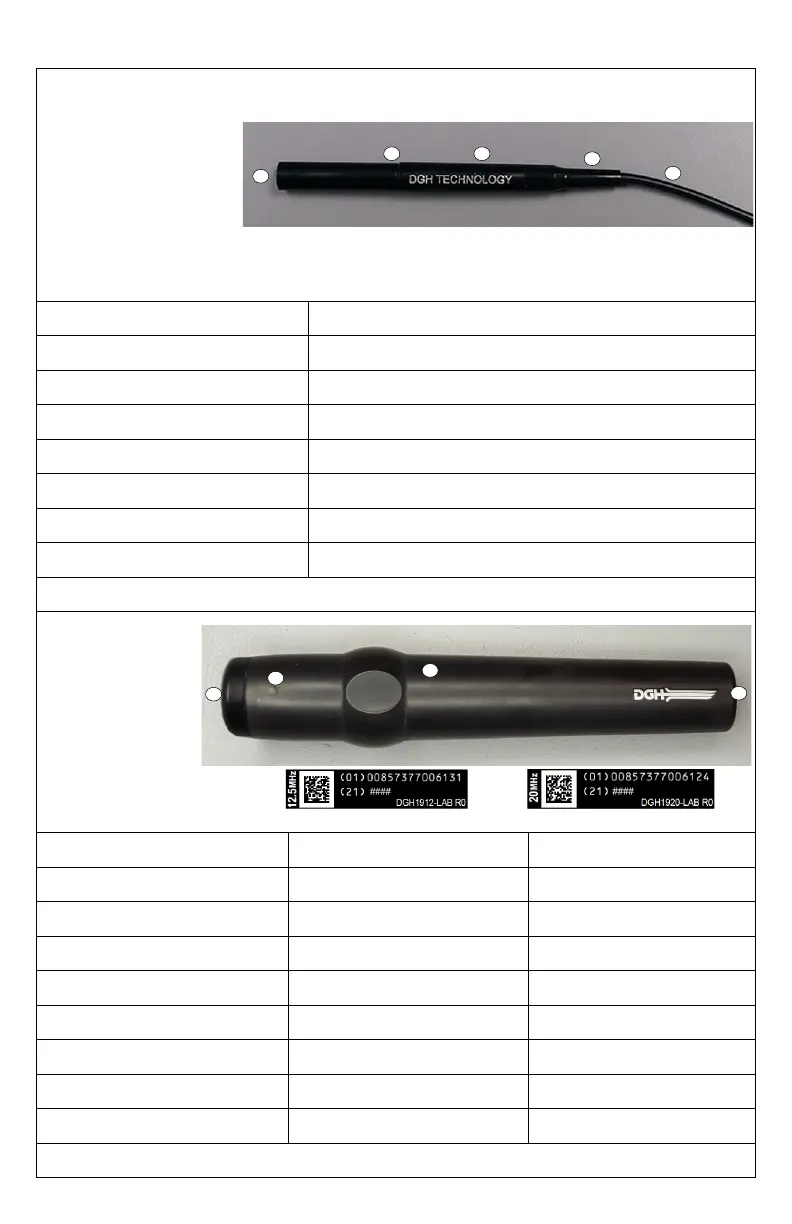

B-SCAN PROBES
1. Probe Lens
2. Probe Top Idener
3. Probe Handle
4. Probe Connector
DGH1912 Label DGH1920 Label
MODEL NUMBER DGH1912 DGH1920
TRANSDUCER 12.5 MHz (nominal) 20 MHz (nominal)
SCAN ANGLE DISPLAYED 60 degrees 60 degrees
PROBE POSITION ACCURACY ±3 degrees ±3 degrees
FOCUS 20 mm ±2 mm 21 mm ±3 mm
DEPTH OF FIELD 15 mm—30 mm 15 mm — 30 mm
LATERAL RESOLUTION 0.5 mm ±0.1 mm 0.4 mm ±0.1 mm
AXIAL RESOLUTION <0.35 µS at focal point <0.13 µS at focal point
REPLACEMENT PROBE CABLE FLEX-PCABLE (8’-0” length) FLEX-PCABLE (8’-0” length)
NOTE: Probe may be completely submerged in liquid when disconnected from probe cable.
1
2
3
4
A-SCAN PROBE— DGH 6006
1. Probe Lens w/ Fixaon LED
2. Immersion Shell Stop
3. Probe Handle
4. Cord Strain Relief
5. Probe cord to cable
DGH 6006 Engraving
TRANSDUCER 10 MHz (nominal)
FOCAL POINT LED brightness adjustable 0% - 100% in soware.
AXL MEASUREMENT RANGE 15.0 mm — 40.0 mm
ACD MEASUREMENT RANGE 2.0 mm — 6.0 mm
LT MEASUREMENT RANGE 2.0 mm — 7.5 mm
AXL MEASUREMENT REPEATABILITY
± 0.03 mm StDev (immersion) , ± 0.10 mm StDev (contact)
AXL MEASUREMENT ACCURACY
100 microns (immersion) , 180 microns (contact)
REPLACEMENT PROBE CABLE N/A. Permanently aached. (6’-0” length)
NOTE: Probe may be submerged up to the edge of the probe cord strain relief.
