DGH TECHNOLOGY SCANMATE FLEX - System Components

10

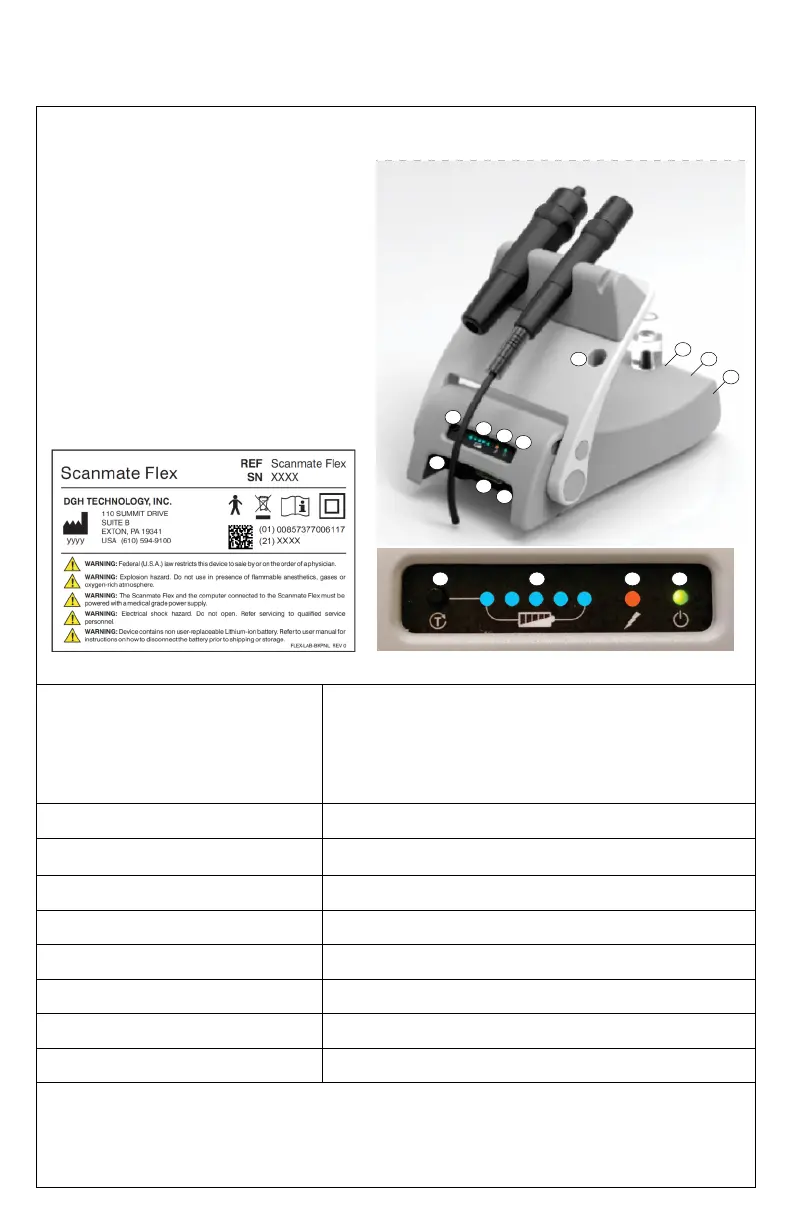

USB INTERFACE MODULE — FLEX-USBIM
1. Baery Charge Check Buon
2. Baery Charge Indicator Lights (blue)
3. Acve Charging Indicator Light (amber)
4. Power On Indicator Light (green)
5. Baery Enable/ Disable Switch
6. B-Scan / UBM connector
7. A-Scan connector
8. A-Scan test block
9. USB Connector
10. Power Switch
11. AC/DC Transformer Connector
Boom Panel Label Front Panel
MAX FRAMES PER SECOND (FPS) 40 fps, 128 sectors, 2-way scan mode
20 fps, 128 vectors, 1-way scan mode
20 fps, 256 vectors, 2-way scan mode
12 fps, 256 vectors, 1-way scan mode
PIXEL COUNT 512 x 512 (4:1 oversampling)
SAMPLING FREQUENCY 80 MHz (max)
PC CONNECTION USB 2.0
BATTERY PACK TYPE* 10.8 V, 3250 mAh Li-Ion
BATTERY LIFE Approximately 4 hours when fully charged.
INPUT VOLTAGE 18 Vdc
INPUT CURRENT 1.67 A
POWER SUPPLY MODEL** EMMAQ180167-P5P-IC (Medical Grade AC/DC Adapter)
* Baery only to be serviced/replaced by DGH Technology, Inc.
** Isolaon from electrical supply mains provided by using the listed medical grade AC/DC adapter.
NOTE: Do not submerge housing. Device housing not sealed against water ingress.
SYSTEM COMPONENTS
The Scanmate Flex is capable of operang various probes. The following tables describe the
Scanmate Flex device and supported probe specicaons.
3
4
2
1
6
7
8
9
10
11
4 3 2 1
5
