4 Description of the Machine
This section provides an overview of the main components and functions. If detailed information is
available in this manual, you will be referred to the specific sections.
4.1 Overview of the Main Components
The figure below shows the main components of the system. The model shown may differ from
your machine.

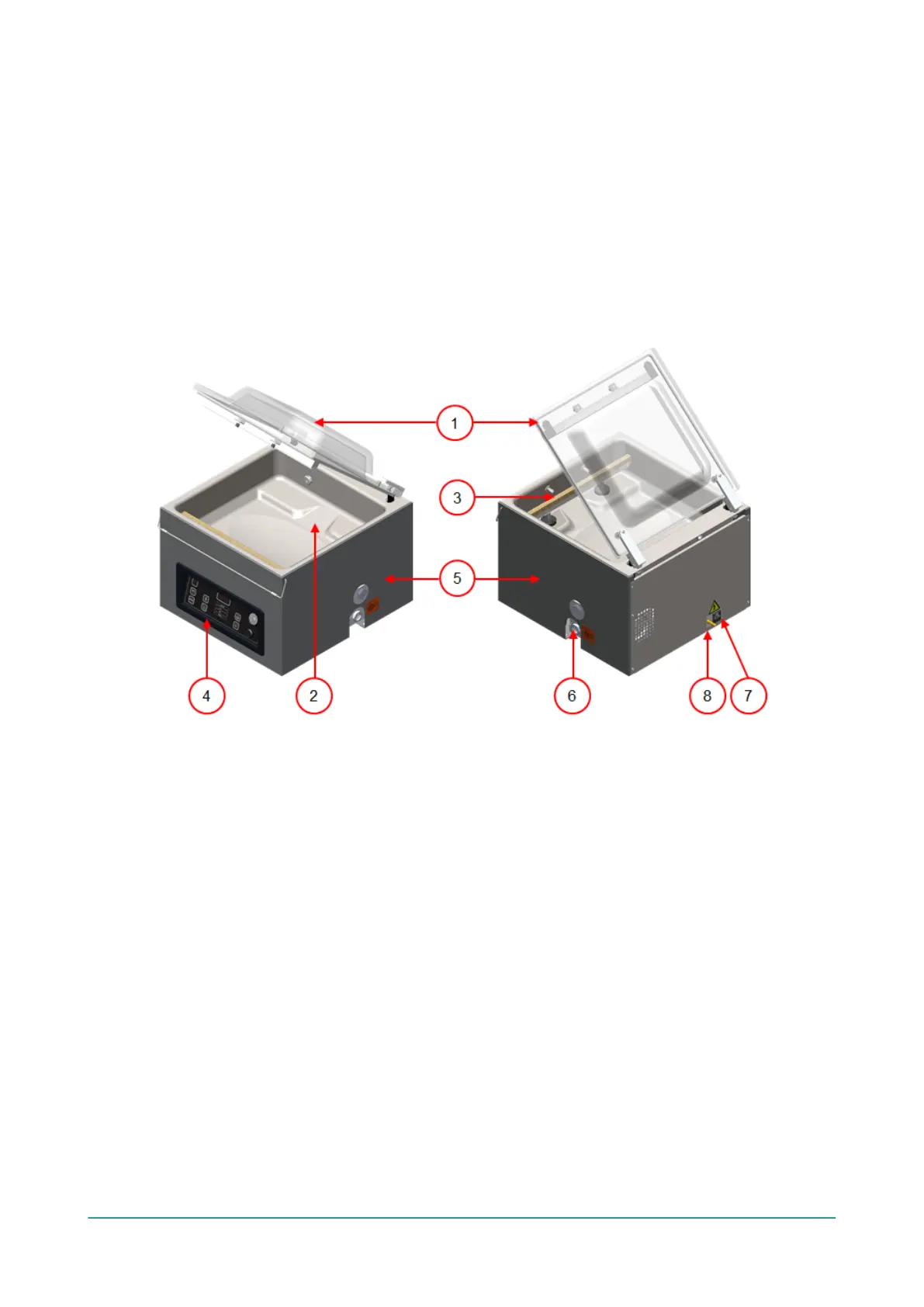

Figure 1: Overview of the Main Components
1. Lid
The lid closes the vacuum chamber during the application of the vacuum. A rubber is mounted
in the lid to ensure proper closing. Silicone holders are mounted in the lid as counter beams of
the sealing bar(s).
2. Vacuum chamber
The products to be packaged are placed on the work surface with the openings of the vacuum
bags on the sealing position.
3. Seal system
Depending on the model, one or two sealing bars are mounted in the vacuum chamber. These
close the vacuum bag.
4. Control panel
This serves to operate the available control functions. Depending on your model, your
machine will have the 10-program control system or the Advanced Control System (ACS).
5. Machine housing
The machine housing contains all the components necessary for the functioning of the
machine.
