Operation 24
5. Pump cleaning program button
This is used to activate the pump cleaning program. Moisture can be absorbed by the oil
when the pump is running only short cycles or when you are packaging moisture-containing
products. This program removes moisture from the oil of the vacuum pump. See Running the
Pump Cleaning Program on page 49 for instructions.
6. Parameter display
This display shows the current value of the active function during the program cycle or the
set value of the selected function when the machine is inactive. A red dot will light up in the
bottom right if the Vacuum+ option is enabled.
7. Function display
The LED light in front of the function lights up if the function is active during the program cycle
or if the function is selected in the programming mode.
8. – / STOP button
This is used to interrupt the entire cycle during a packaging cycle. All functions are skipped
and the cycle is terminated. In the programming mode, the value of the selected parameter
can be lowered using this button.
9. + / VACUUM STOP button
This stops the active function and proceeds to the next program step. In the programming
mode, the value of the selected parameter can be increased using this button.
10. Vacuum meter
Shows the pressure in the vacuum chamber. A value of -1 bar corresponds to 99% vacuum.
11. On/Off button
Serves to turn the control panel on or off.
6.2 Operating Elements of the Advanced Control System
(ACS)
The ACS control panel allows the machine to be operated and programs to be changed.
See Operation on page 23 for instructions on the operation and programming.

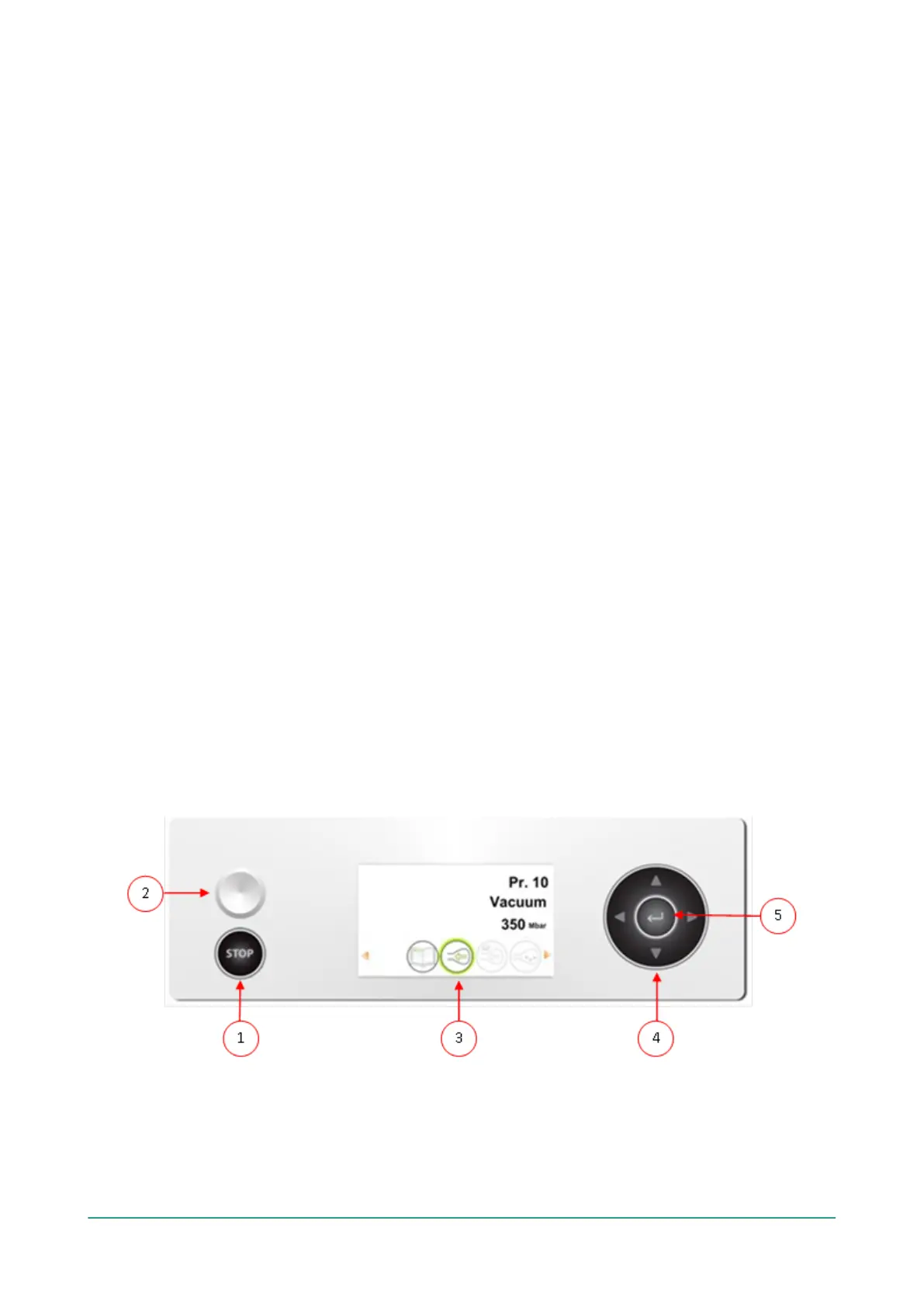

Figure 7: Control Panel of the Advanced Control System (ACS)
1. STOP button
This is used to interrupt the entire cycle during a packaging cycle. All functions are skipped
and the cycle is terminated.
