Operation 43
6. Press the cursor key
◄
to return to the menu.
7. Close the lid to start sealing.
6.7.2.15 External Vacuum (optional)
The External Vacuum function allows special food containers to be vacuumed outside the machine.
The packaging is vacuumed until a vacuum of 99.8% is reached.
External Vacuum is only available on the Boxer and Lynx series.
Check in advance whether the relevant food container can withstand and hold a vacuum.
To select the External Vacuum option, follow the steps below:
1. Connect the external vacuum hose to the machine by placing the adapter over the suction
inlet (1) in the vacuum chamber.
2. Connect the external vacuum hose to the packaging.
a. Connect the adapter (3) of the external vacuum hose to the valve of the packaging.
b. Slide the sliding valve (2) towards the hose (closed position).

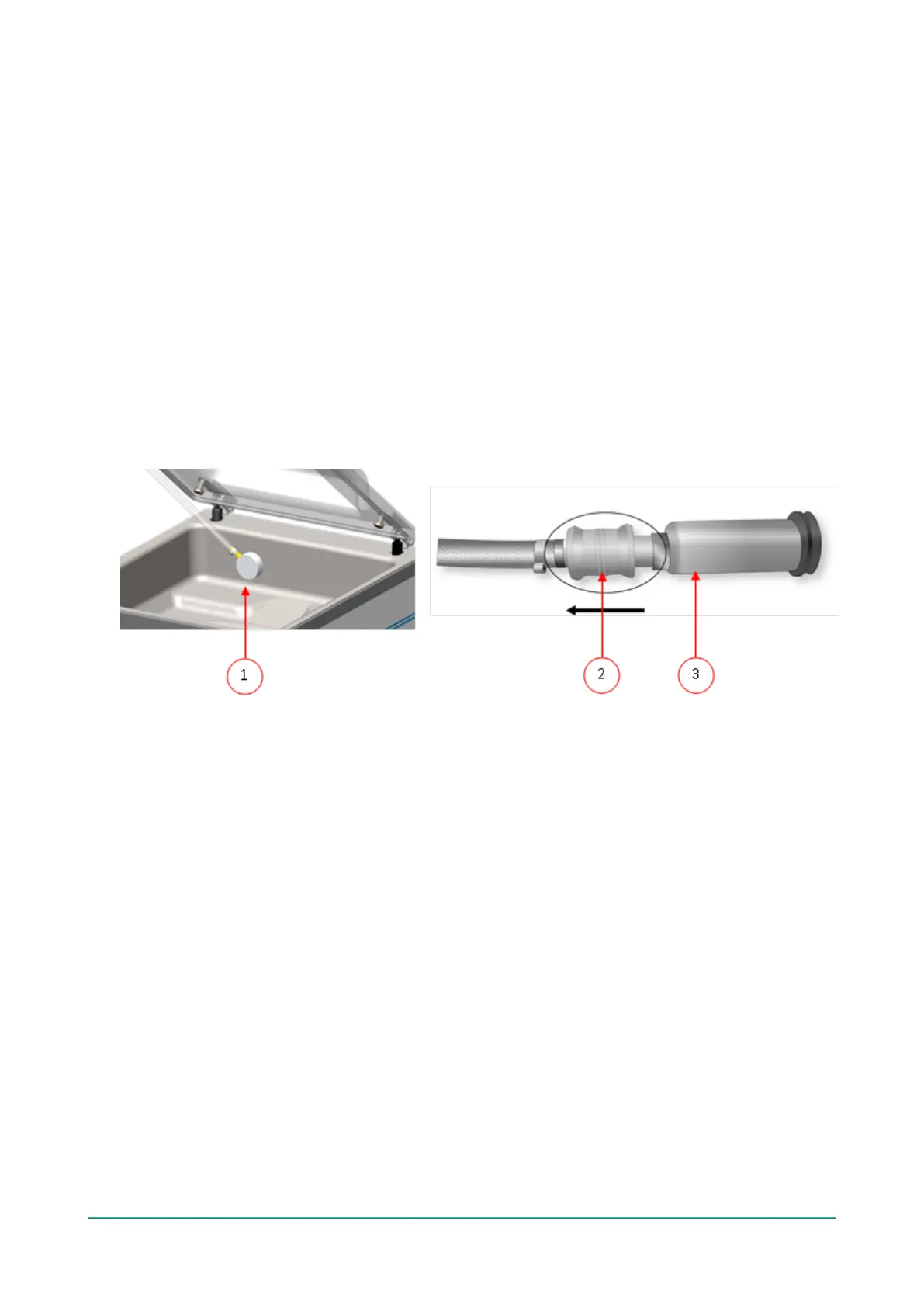

Figure 14: External Vacuum Adapter Set (ACS)
3. Press the cursor keys and select the program External Vacuum to start vacuuming.
The packaging is vacuumed until the maximum vacuum is reached.
4. Slide the sliding valve of the adapter towards the packaging (open position) and remove the
external vacuum hose from the packaging.
6.7.2.16 Dealer Information
If dealer information is entered into the machine, this will be displayed on the start-up screen.
6.8 Guideline for Function Values
For each function, values can be set if you are authorised as an owner. In order to understand the
consequence of the set value, the table below explains the consequences of giving a low or high
value for each function.
For the values in the table below, the following rule of thumb applies to setting a value in mbar.
These values may vary slightly, depending on the humidity.
• 99.8% = 2 mbar
• 0% = 1013 mbar
