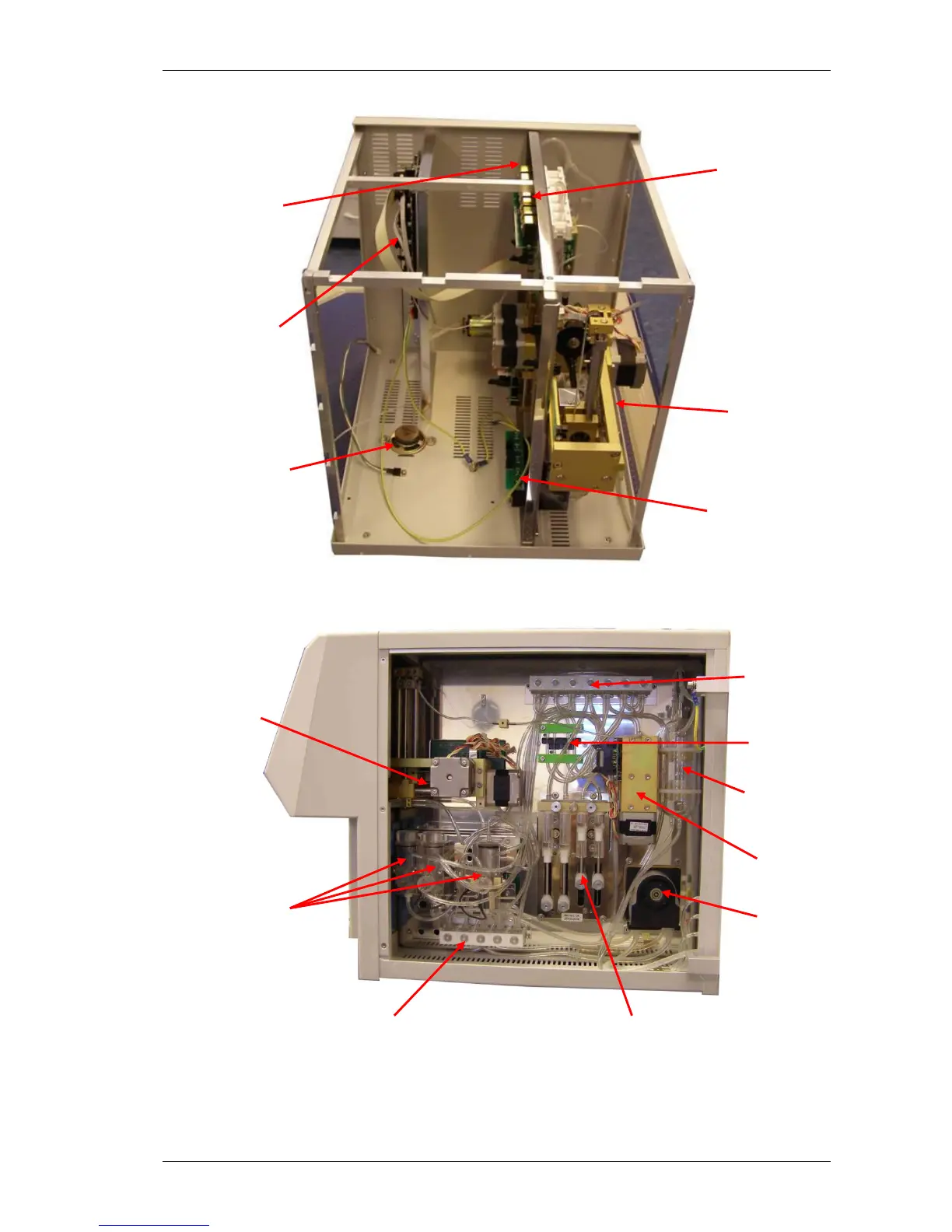

Construction – front:
Construction – right side
:
Speaker
Valve block
H&V unit
Electronic
block
Valve block
Pressure
sensor
Valve block
Reagent
sensor
Puffer reservior
Microdilutor
Pump
Dilutor block
Valve block
Measuring
chambers
Needle moving
mechanics
