Diatron Abacus + - Fluid Transfer from MIX to WBC Chamber

Abacus
+
Service Manual
rev 1.09
33
4.1.4. Fluid transfer from MIX chamber to WBC chamber

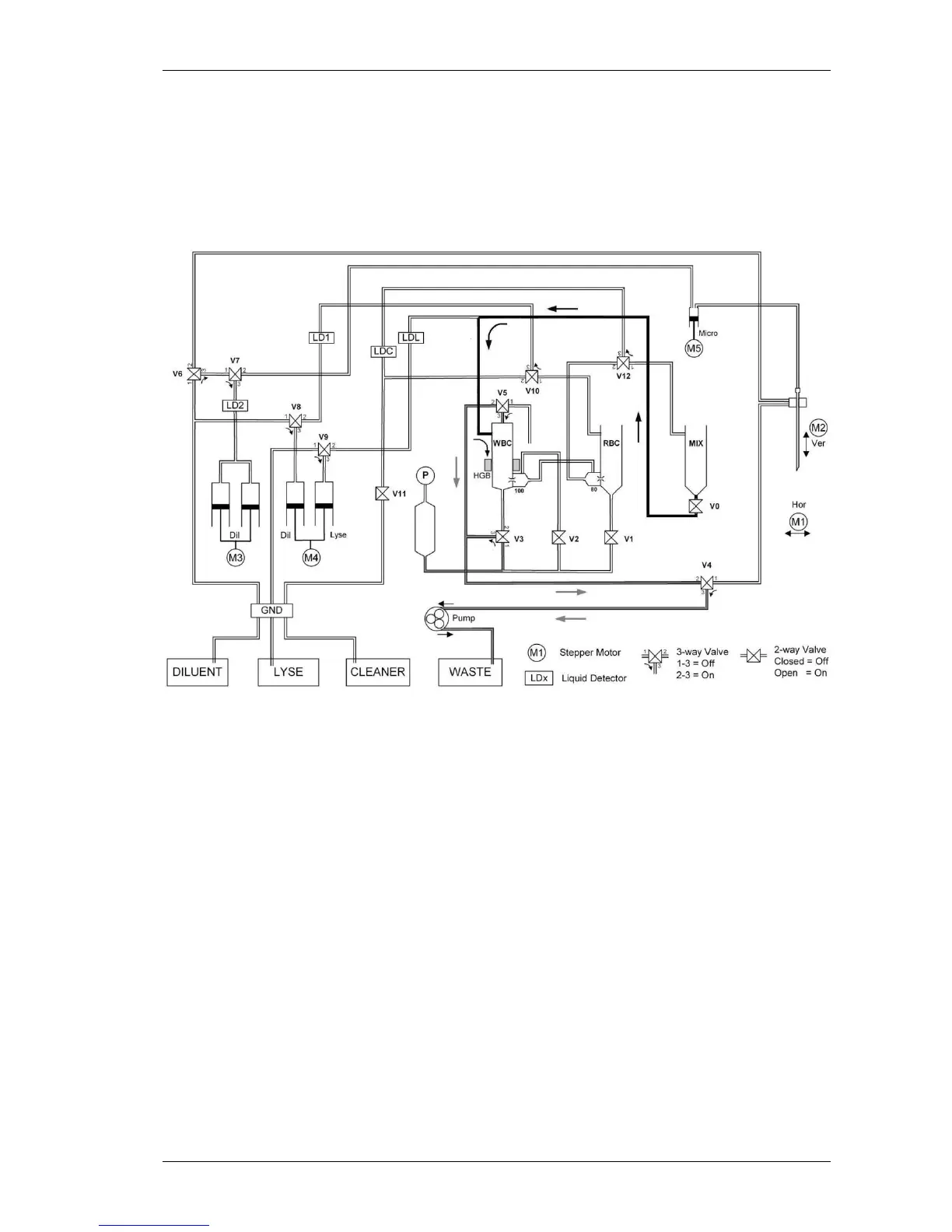

In Abacus+, during this step the liquid remaining in the mixing chamber flows via the V0
(On) into the WBC chamber, because the vacuum  which is in the puffer reservoir and
maintenated by the pump  aspirates the fluid through V5 (On) and V3 (On), while V2 and V1
are Off. Simultaneously, the peristaltic pump supports this procedure via V4 (On).
