Diatron Abacus + - Counting Process

Abacus
+
Service Manual
rev 1.09
35

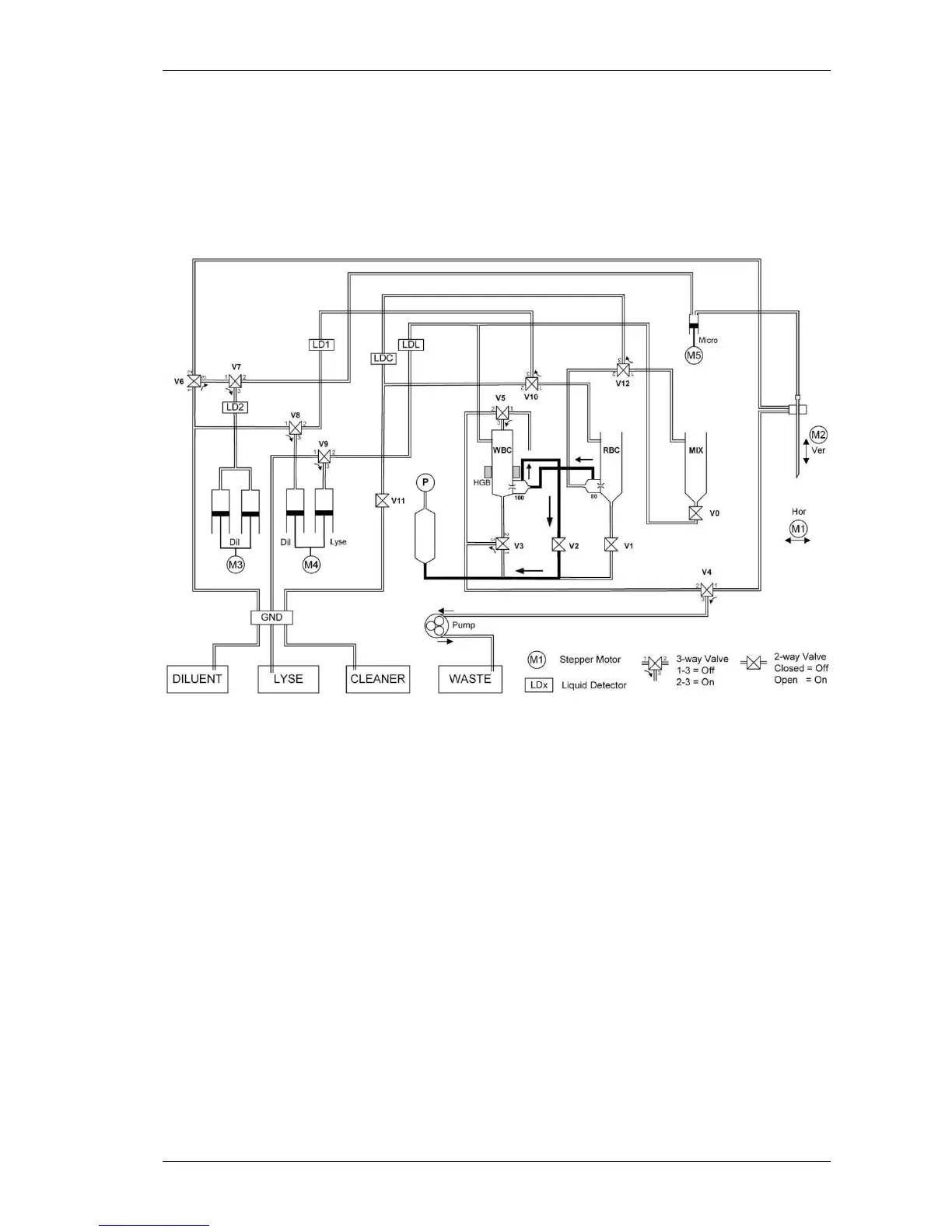

4.1.6. Counting process
The regulated vacuum (it is generated by the pump in the puffer reservoir) aspirates the
diluted sample (WBC and RBC) from the chamber through V2 (On) valve. The instrument
counts the cells for 5 seconds in both counting phases (at first WBC and after it the RBC).
