8 UNPACKING THE INSTRUMENT
Rotate the brace back into supporting position before moving or
shipping the unit. If the cell is not adequately supported operating
performance may be adversely affected due to cell bouncing.
Some effort is required to move the brace back into position. It
may be helpful to reach inside the drawer front and lift up on the
cell while attempting to lock the brace into the transport position.
Place the spool over the handle to prevent the accidental release
of the shipping brace.
INSTRUMENT PLACEMENT
Choose a clean environment that is protected from rapid changes in
ambient temperature. Avoid a hazardous (classified) location as defined in
Article 500 of the NFPA Handbook of the National Electrical Code.
Instrument should be placed in a dry environment/area free to
standing water or dampness to avoid electrical shock.

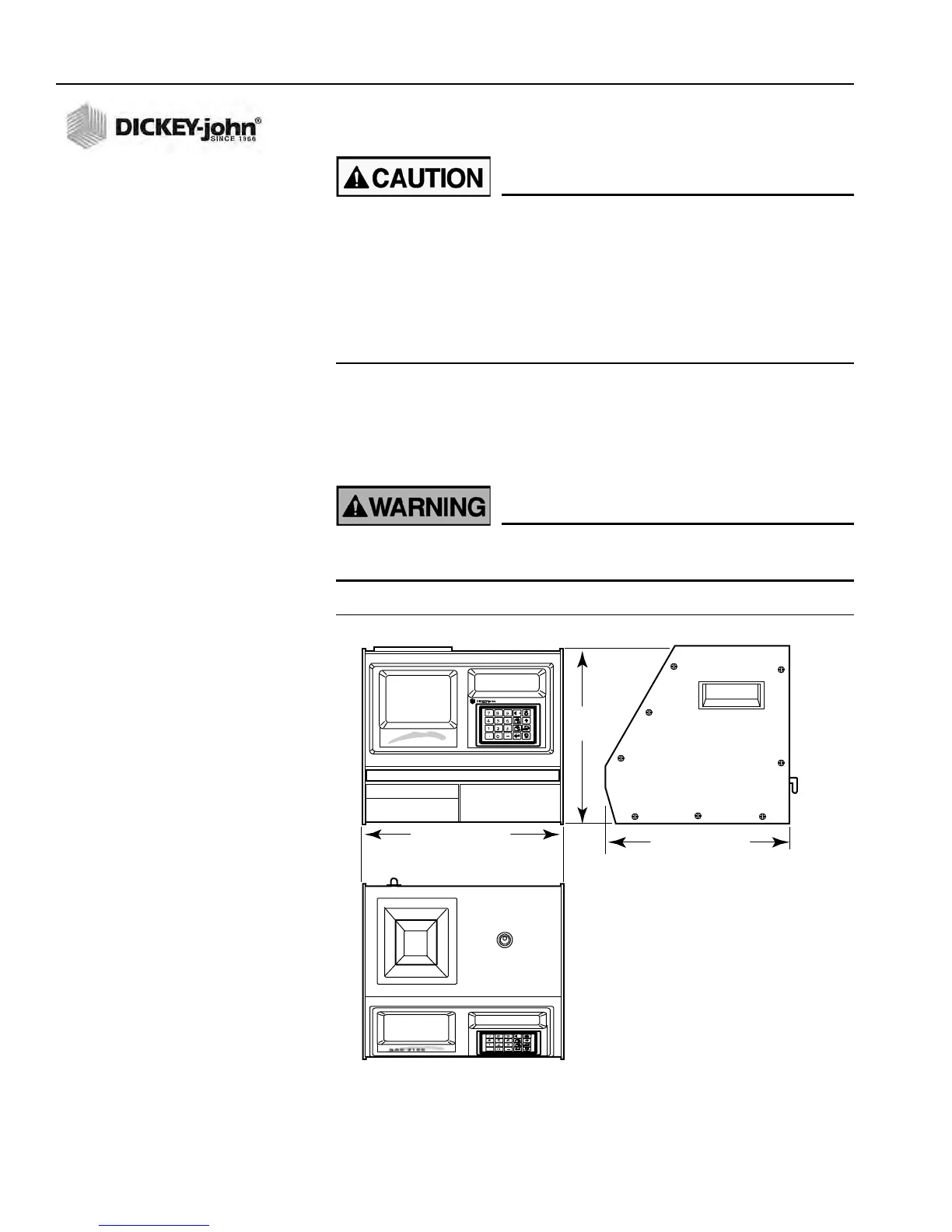

Figure 4
GAC 2100 Dimensions
37.5 cm
(14.75 in.)
40.6 cm (16.00 in.)
38.7 cm (15.25 in.)
Front View
Top View
Side View
GRAIN ANALYSIS COMPUTER
GAC 2100
