Line Submixer Controls
The Line Submixer section includes an input level control for each of its 8 inputs and a master output
level control that sets the output levels to the external stereo output or the internal feed to the Mon-
itor section.
Mixer Input Level Knobs (1-8)
The Input Level knob adjusts the gain of the cor-
responding Line Submixer input.
To Monitor Switch
The To Monitor switch routes the stereo output
of the Line Submixer to the Monitor section and
automatically sums the signal with the Left and
Right channels of the current Control Room In-
put selection. Any Trim values applied to the
current input in the Monitor section are also ap-
plied to the summed Submixer output.
Master Output Level Knob
The Master Output Level knob controls the vol-
ume to the Line Submixer stereo outputs.

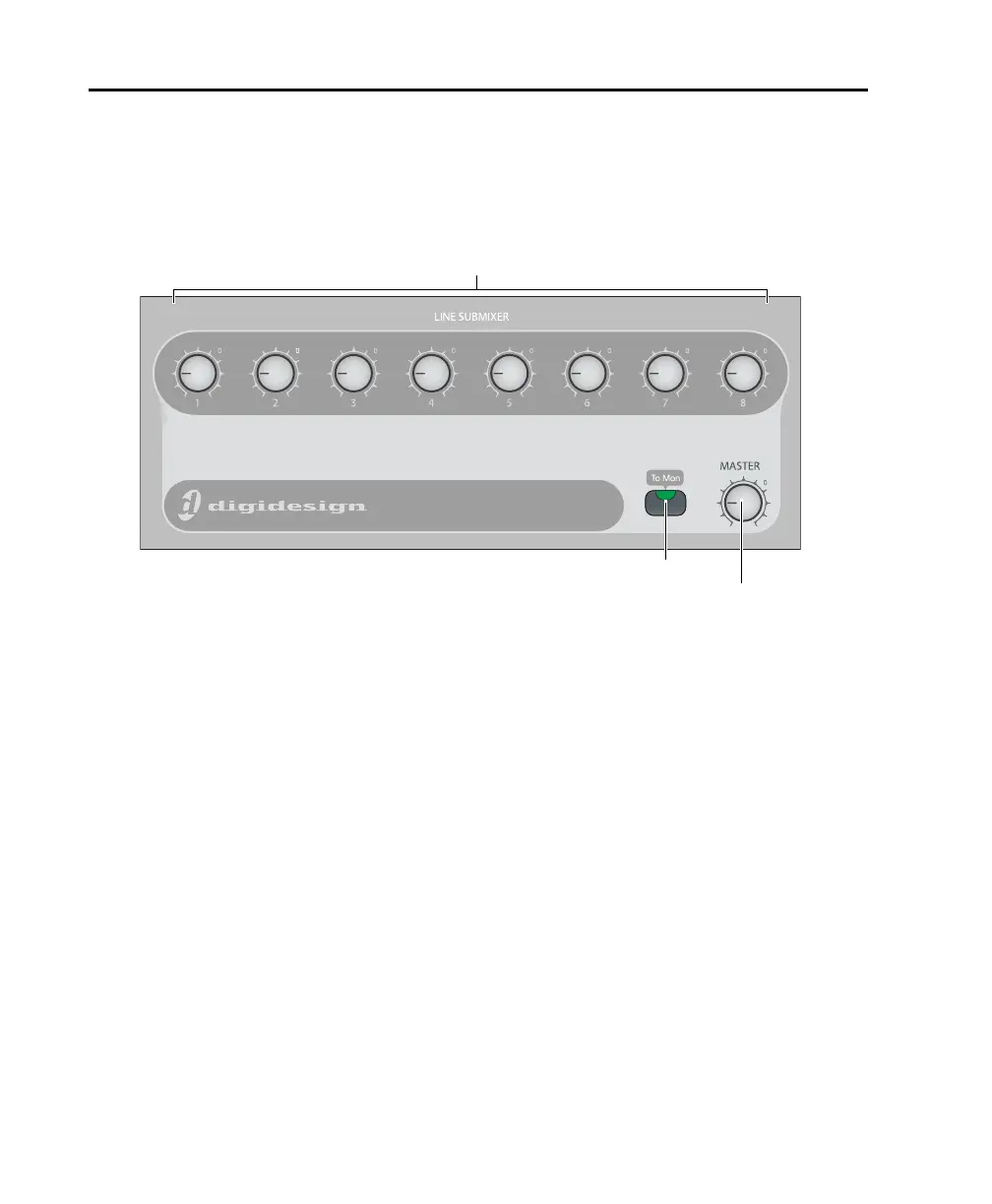

Line Submixer
Input Level knobs
Master Output Level knob
To Monitor switch
