Chapter 2: C|24 Overview 11
C|24 Back Panel
Submixer Section
Two DB-25 female connectors allow connection
of a total of 16 channels (8 stereo inputs). Stereo
output is available on 1/4-inch TRS connectors.
Preamp Sections
Each of the two 8-channel preamp sections has
two DB-25 female connectors that provide sepa-
rate, switchable Mic and Line inputs, plus two
alternate 1/4-inch TRS connectors. A third
DB-25 connector in each section provides
preamp outputs.
Monitor Section
Five DB-25 female connectors allow connection
of two six-channel inputs, two stereo inputs,
and a pair of cue inputs. Outputs include a six-
channel Main output, stereo Alt Output (also
available on 1/4-inch TRS connectors), stereo LS
and Cue outputs, and a Talkback Slate output.
Listen Mic and External Talkback Mic
Connectors
Two XLR microphone connectors allow connec-
tion of a Listenback microphone and an op-
tional external Talkback microphone.
Footswitch Connectors
Two 1/4-inch TRS footswitch connectors can be
assigned independently to control Pro Tools re-
cording punch in/out, Pro Tools transport
start/stop, or C|24 talkback on/off.
Ethernet Connector
C|24 communicates with Pro Tools using
Ethernet. This connection uses a standard RJ45
connector.
Power Supply Connector
C|24 comes with a dedicated external power
supply that connects to this port.

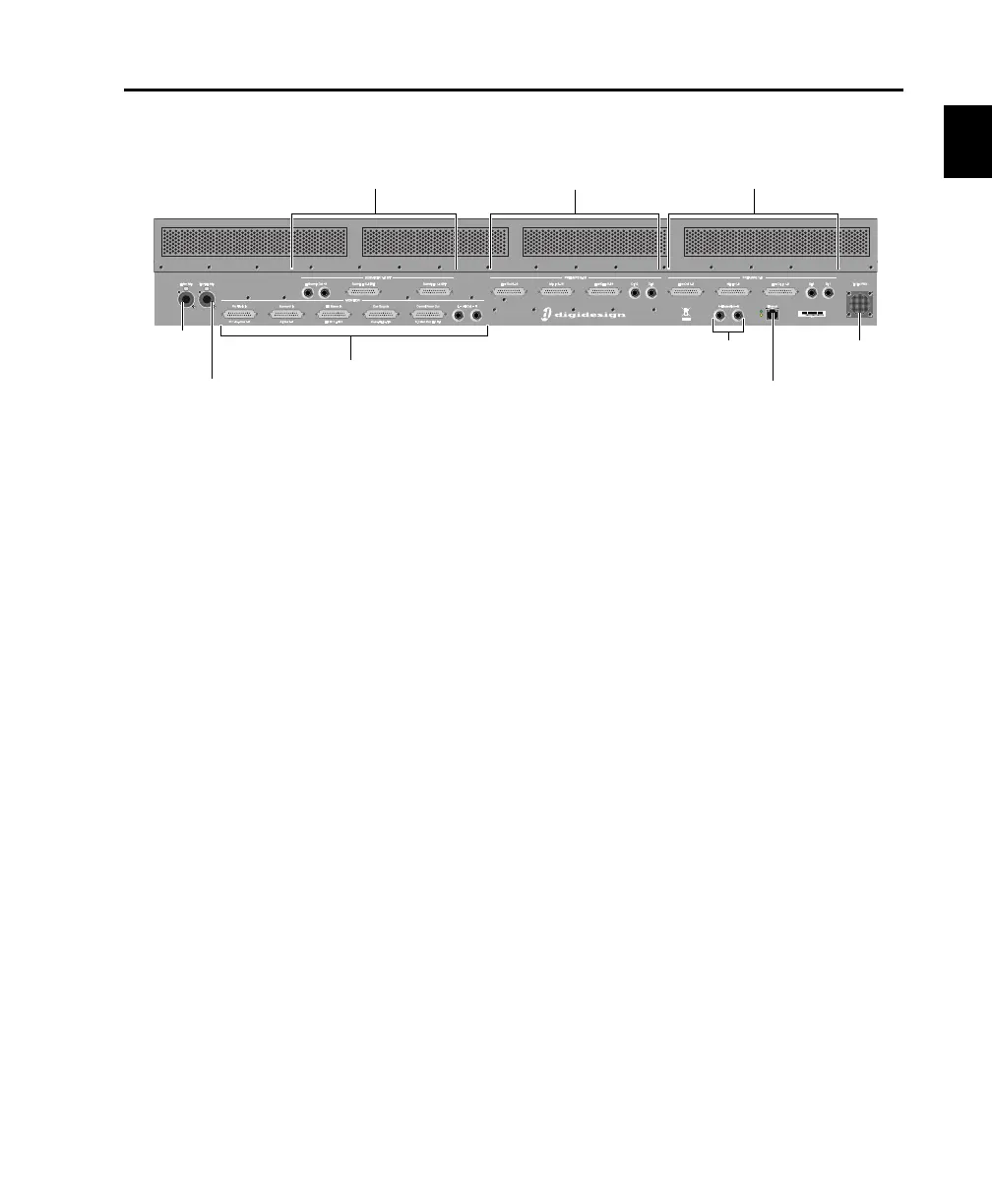

Figure 2. C|24 back panel
Monitor section
Submixer section
Preamps 9-16 section
Preamps 1-8 section
Footswitch
connectors
Ethernet
connector
Power Supply
connector
Ext Talk Mic
connector
Listen Mic
connector
