Chapter 7: C|24 Analog Audio Controls
Monitor Section
The Monitor section includes controls for 6-channel control room monitoring, 2-channel studio
loudspeaker and cue system routing, headphone output, and listenback and talkback input.

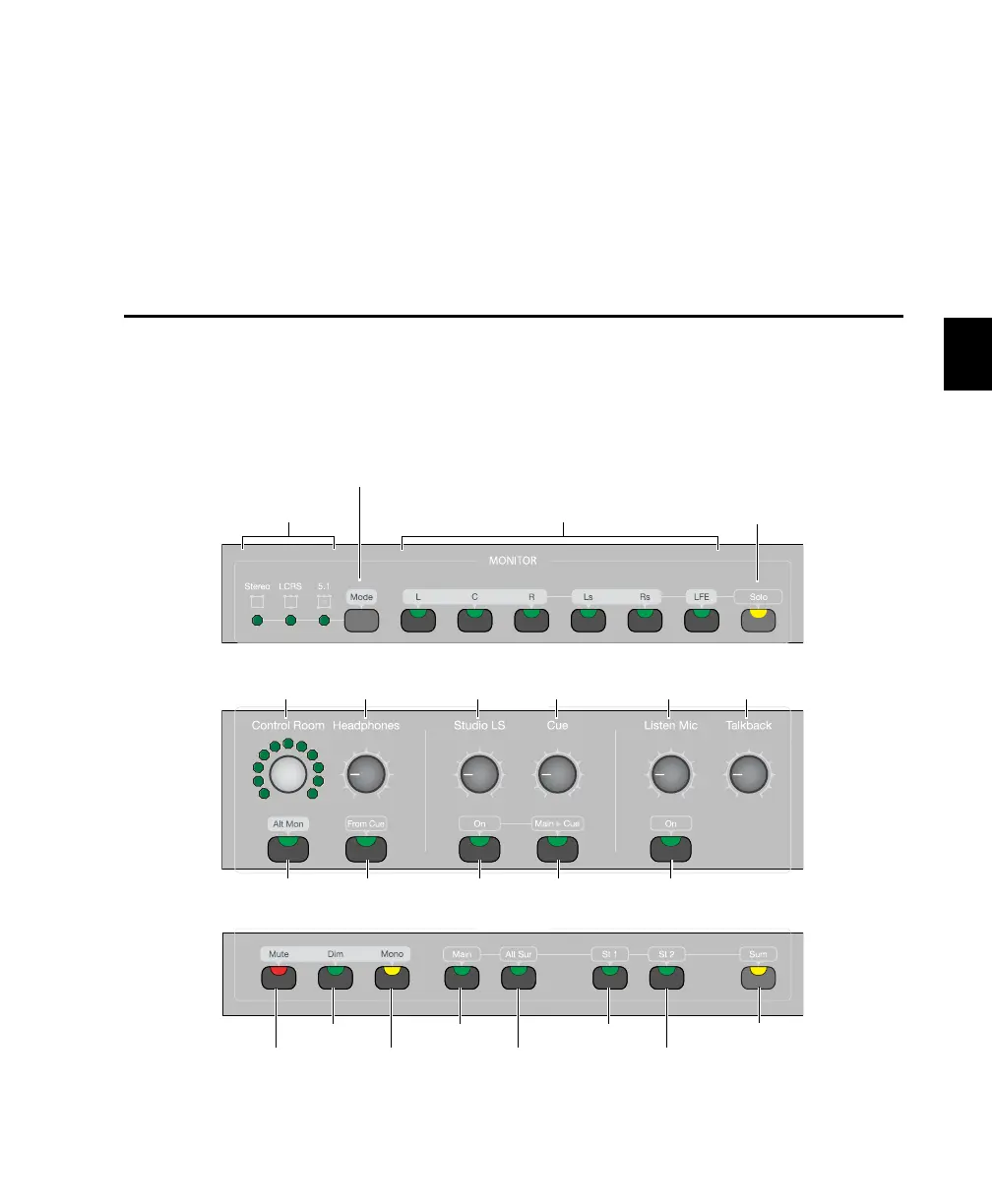

C|24 Monitor section
Dim
switch
Mono
switch
Mute
switch
Main
switch
Alt Sur
switch
Stereo 1
switch
Stereo 2
switch
Sum
switch
Output Mode
Preset Indicators
Solo
switch
Control Room Main Output
switches
Output Mode
switch
Control Room
encoder
Headphone
level knob
Solo LS
level knob
Cue
level knob
Listen Mic
level knob
Talkback
level knob
Alt Monitor
switch
From Cue
switch
Studio LS
switch
Main>Cue
switch
Listen Mic
switch
