C|24 Guide62
Output Mode Switch and Indicators
C|24 has three preset monitor modes available
for the Control Room Main Outputs:
•Stereo (L,R)
•LCRS
• 5.1 (L, C, R, Ls, Rs, LFE)
The Output Mode switch cycles through these
three preset modes.
When any of these preset modes is selected,
its indicator lights, and the corresponding Main
Output switches light.
When any of these preset modes is selected
and any of its outputs are disabled, or any addi-
tional outputs are enabled, the indicator flashes.
Stereo Mode In Stereo mode, only the Left (L)
and Right (R) output channels of the Control
Room Main Outputs are active, even when
monitoring a surround input source. No sum-
ming of the surround channels occurs.
LCRS Mode In LCRS mode, the Left (L), Center
(C), Right (R), and Left Surround (Ls) channels
are active. In this mode, the Left Surround (Ls)
input is routed to both the Left Surround (Ls)
and Right Surround (Rs) outputs.
5.1 Mode In 5.1 mode, all output channels are
active.
Control Room Main Output Switches
The Control Room Main Output switches en-
able the corresponding output channels. You
can enable any combination of channels at a
time.
An output switch lights to indicate that the
channel is enabled.
The switches are as follows:
•L (Left)
•C (Center)
•R (Right)
• Ls (Left Surround)
• Rs (Right Surround)
• LFE (Low Frequency Effect)
Solo Switch
The Solo switch puts the Main Output switches
in Solo mode, which lets you solo output chan-
nels by pressing the corresponding switch. The
Solo switch lights to indicate Solo mode is ac-
tive.
When you first enter Solo mode, all currently
enabled Main Output switches remain active,
until you press a switch to solo a channel.

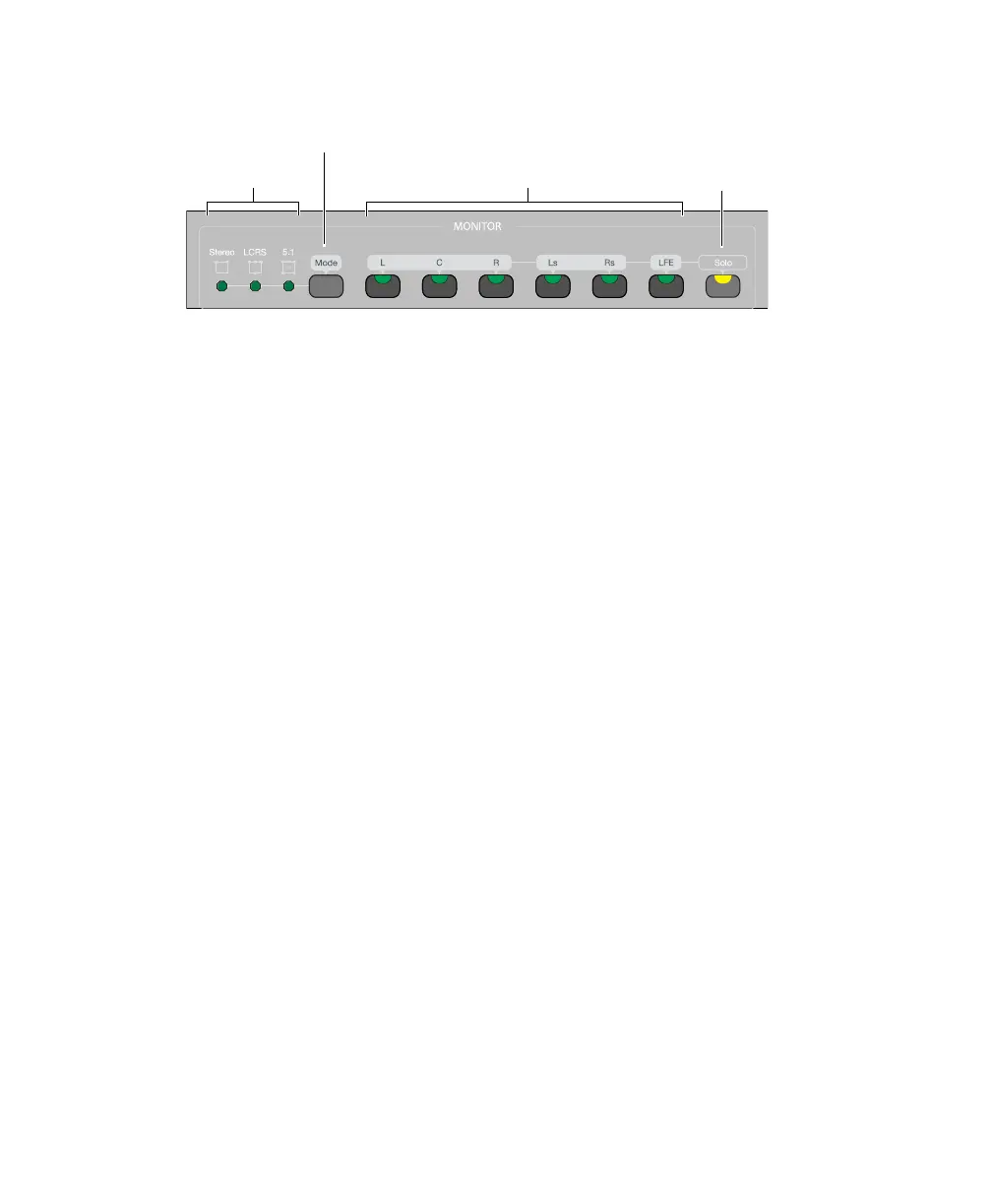

C|24 Monitor section (top)
Output Mode
Preset Indicators
Solo
switch
Control Room Main Output
switches
Output Mode
switch
