Chapter 5: Working with Pro Tools LE 41
Track type is indicated by the Track Type icons
just below the faders.
In the Edit window, tracks are displayed hori-
zontally along the Timeline. The area in which
audio appears for each track is the Playlist.
Audio tracks, Auxiliary Inputs, Master Faders,
and MIDI tracks can be automated.
Audio Tracks
Audio tracks, Auxiliary Inputs, and Master Fad-
ers share many identical controls. Master Faders
provide all the same features as audio tracks and
Auxiliary Inputs, with the following exceptions:
Input Selector A Master Fader’s output assign-
ment determines its input, or source (always
outputs 1–2).
Tracks in the Mix window
Timeline Rulers and a stereo audio track in the Edit
window
Audio
Aux
Master
MIDI
Fader
Input
track
track
Audio Track
Timeline
Rulers View

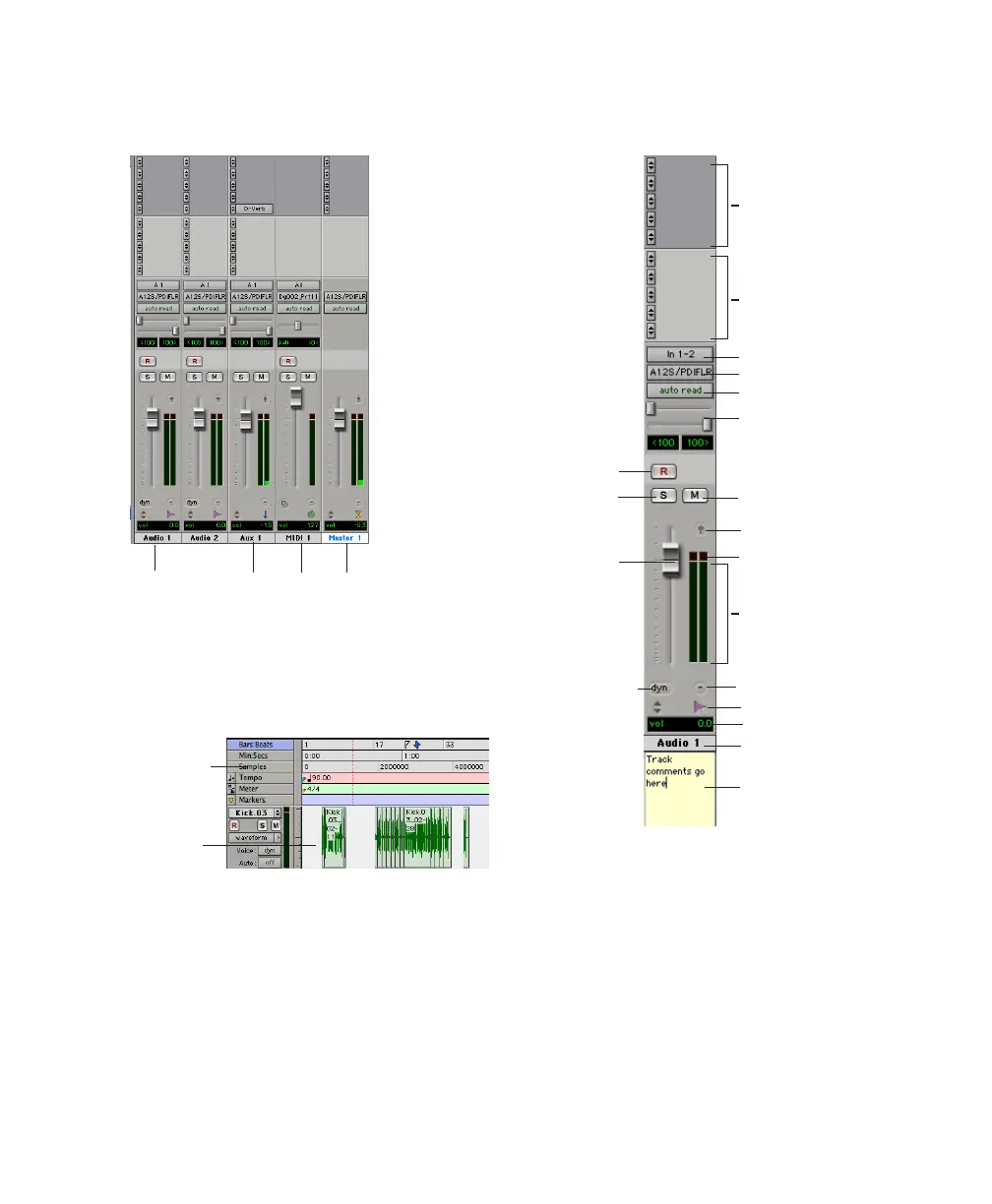

Figure 6. Stereo audio track in the Mix window
Track name
Level meter
Pan sliders
Mute
Clipping indicator
Input
Output
Volume
Track comment area
Automation mode
Record
Solo
Group enable
Volume
(lights red)
Open Output window
Voice Selector
Inserts
Sends
Enable
fader
Track Type icon

DigiDesign Mbox Specifications

General

Type	Audio Interface
Mic Preamps	2
Phantom Power	Yes
Bit Depth	24-bit
Software Included	Pro Tools LE
Connectivity	USB
Simultaneous I/O	2 x 2
Analog Inputs	2 x XLR/TRS combo
Analog Outputs	2 (1/4" TRS)
Headphone Output	1 x 1/4" TRS
Sample Rate	48 kHz
