Digital Projection Titan Quad / 930 / 800 Series USING THE PROJECTOR Operating Guide
70
Rev H October 2013
Edge Blend procedure (continued)

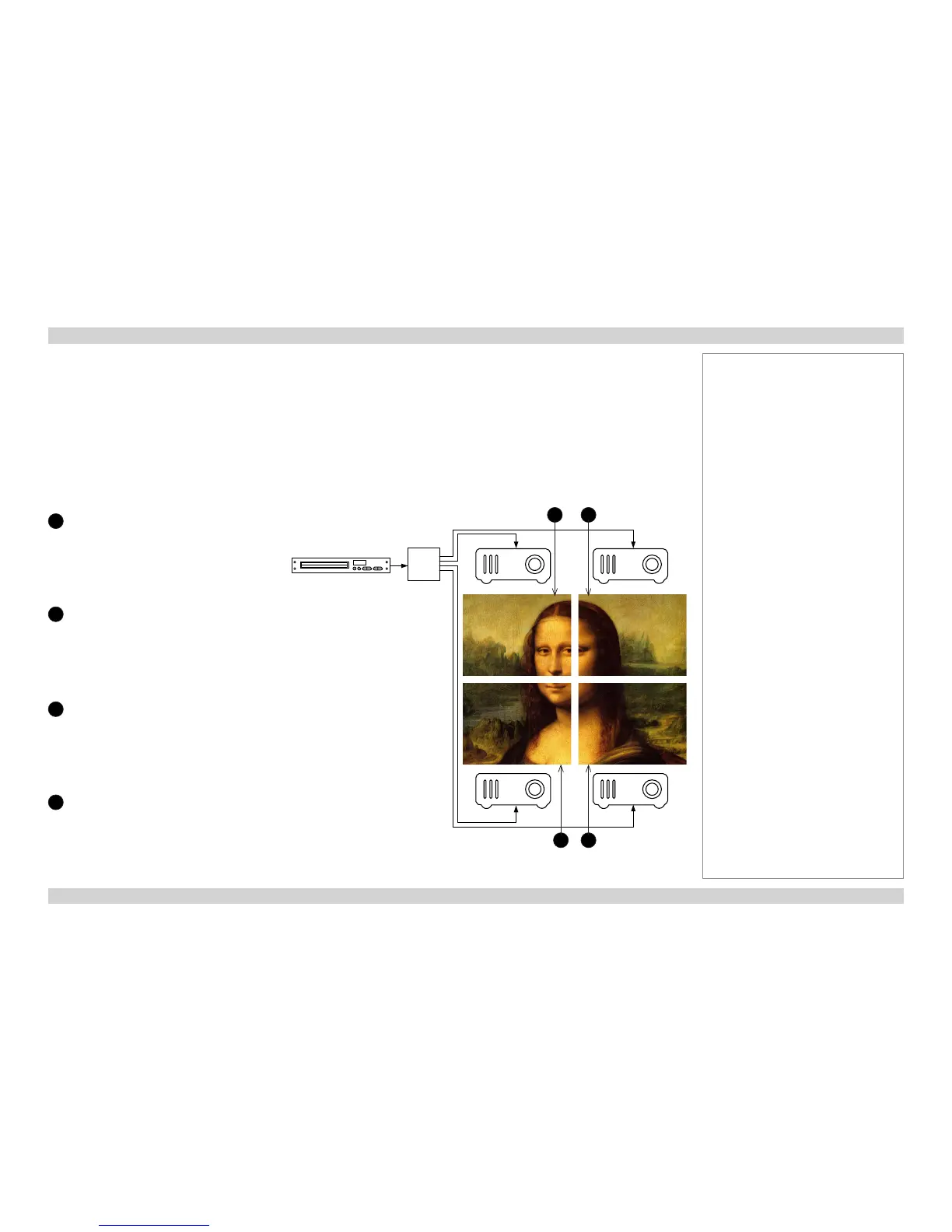

4. Set up the array.
For each projector, open the Edge Blend menu and enter Array Width, Array Height, Array H Position and Array V Position.
Array Width and Array Height should be identical for all projectors. These settings dene the size of the array. For example, a two-by-
two array will have the following values:
• Array Width = 2
• Array Height = 2
The top right projector will have Array H Position = 0 and Array V Position = 0.
1
Top left
Array Width = 2
Array Height = 2
Array H Position = 0
Array V Position = 0
2
Top right
Array Width = 2
Array Height = 2
Array H Position = 1
Array V Position = 0
3
Bottom left
Array Width = 2
Array Height = 2
Array H Position = 0
Array V Position = 1
4
Bottom right
Array Width = 2
Array Height = 2
Array H Position = 1
Array V Position = 1
21
3 4
Notes
