Remote Control

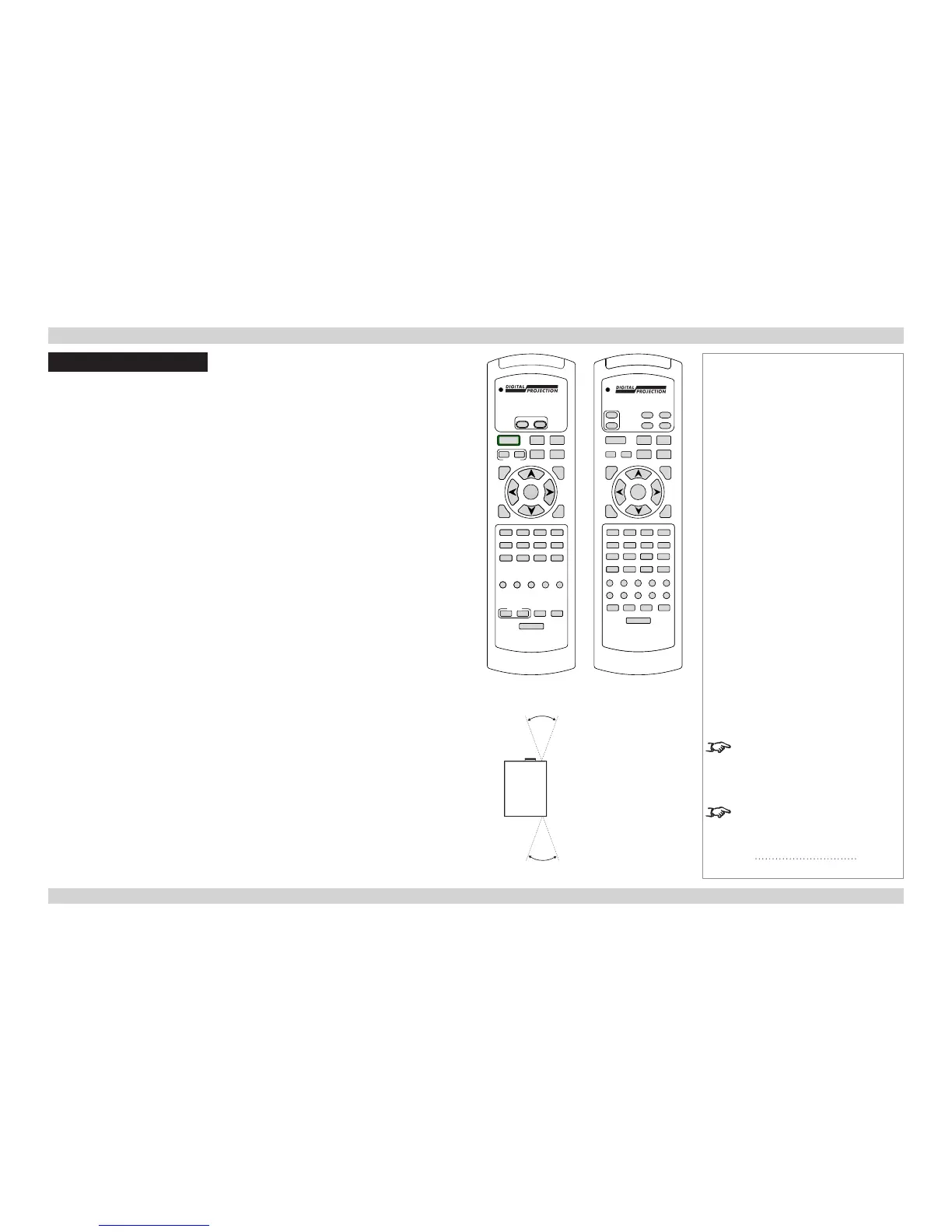

The projector is equipped with one of the remote control devices shown here. The device on
the left (105-023 Rev B) was introduced in June 2013; a projector purchased before that date
is equipped with the device on the right, 105-023 Rev A.
Both devices and their functions are described in the following pages.
Infrared reception
The projector has infrared sensors at the front and back.
The angle of acceptance is 40°. Make sure that the remote control is within the angle of
acceptance when trying to control the projector.
Notes
Infrared reception is conrmed by
the blue IR LED ashing on the
control panel.
The infrared receivers are disabled
when a remote control is connected
via a cable. For more information,
see Control Connections in the
Connection Guide.
CTRL FOCUS
AUTO
INFO
SHIFT
ZOOM
MENU INPUT
OK
EXIT
INPUT
1 RGB1 3 DVI RED
4 SDI 5 VID 6 SVID GREEN
7 COM 8 9 BLUE
PRESET
FUNC ADDR SAVE
LIGHT
BRI
10+ 0 # TEST
OFF
ON
OSD
ON
OFF
POWER
OPEN
CLOSE
SHUTTER
+
_
2 RGB2
PRESET
SAVE
CON SAT MAGNIFY PHASE
A B C D
J K L M
E F G H
N P R S
OSD POS
KEYST
PAN ASPECT
RPY
VGA HDMI DVI 3GSDI
CVBS1 SVIDEO
CLOSE
1
2 3 4
COMP CVBS2
5 6 7 8
9 0 10+ #
MAIN SUB
DUAL
HD-T
OFF
ON
ALT
ROLL
PITCH
YAW
FOCUS
CAL
SHIFT
ZOOM
EYE
SWAP
MAIN/PIP
SWAP
BRI
CON GAMMA
3D
ON/OFF
PIP
ON/OFF
LOAD
SAVE
TEST ADDR
BACKLIGHT
R
G
B
PRESET
SHUTTER
OPEN
POWER
MENU
OK
EXIT
INFO
Remote (105-023)
Rev A
Remote (105-023)
Rev B
40°
40°
Infrared reception
