Digital Projection Titan Super Quad Series User Manual

Digital Projection Titan Quad / 800 / 930 Series SCREEN REQUIREMENTS Reference Guide
127
Rev H October 2013

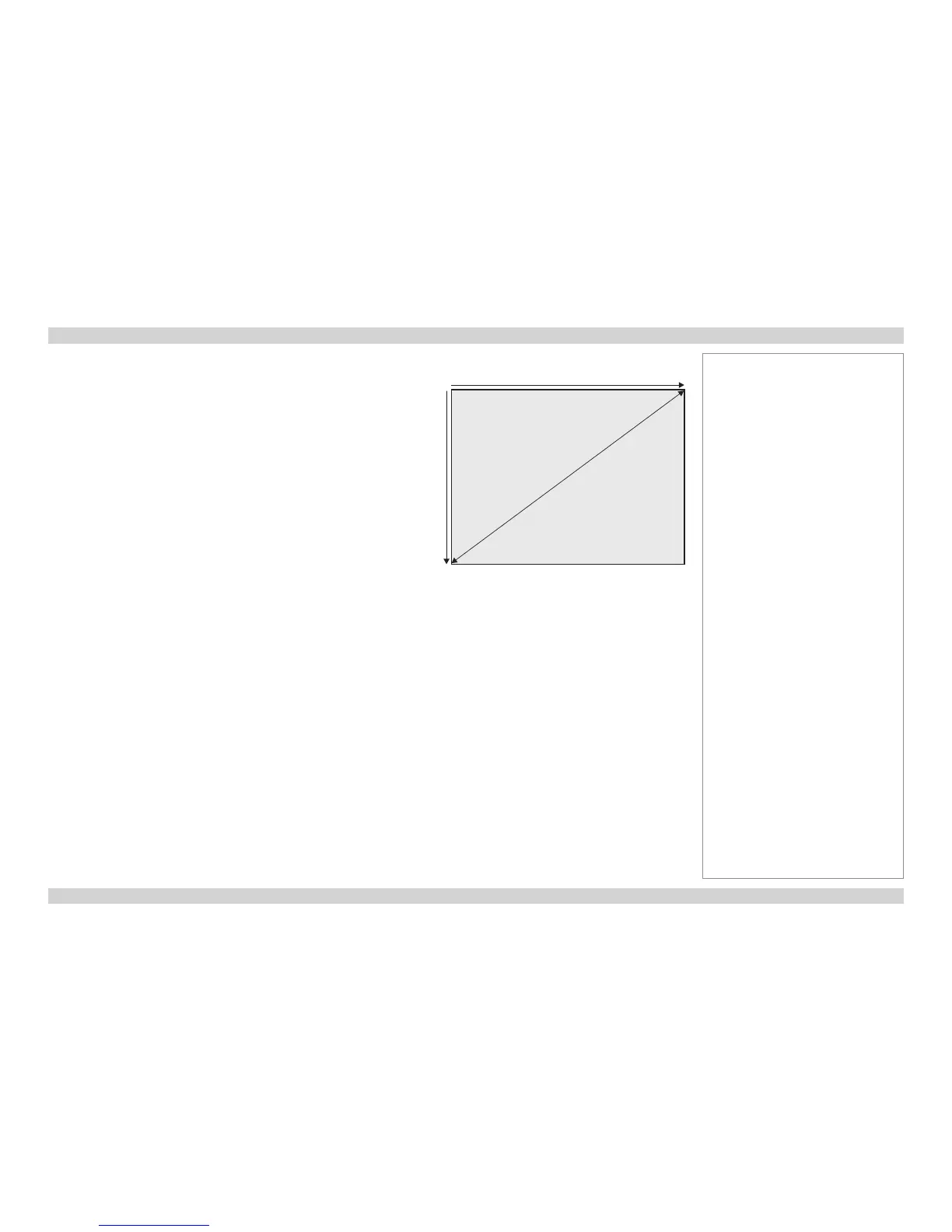

Diagonal screen sizes
Screen sizes are sometimes specied by their diagonal size (D). When dealing
with large screens and projection distances at different aspect ratios, it is more
convenient to measure screen width (W) and height (H).
The example calculations below show how to convert diagonal sizes into width and
height, at various aspect ratios.
2.35:1 (Scope)
W = D x 0.92 H = D x 0.39
1.85:1
W = D x 0.88 H = D x 0.47
16:9 = 1.78:1 (native aspect ratio for 1080p projectors)
W = D x 0.87 H = D x 0.49
1.66:1 (Vista)
W = D x 0.86 H = D x 0.52
16:10 = 1.6:1 (native aspect ratio for WUXGA projectors)
W = D x 0.85 H = D x 0.53
4:3 = 1.33:1 (native aspect ratio for SX+ projectors)
W = D x 0.8 H = D x 0.6
Notes
D = diagonal
W = width
H = height
